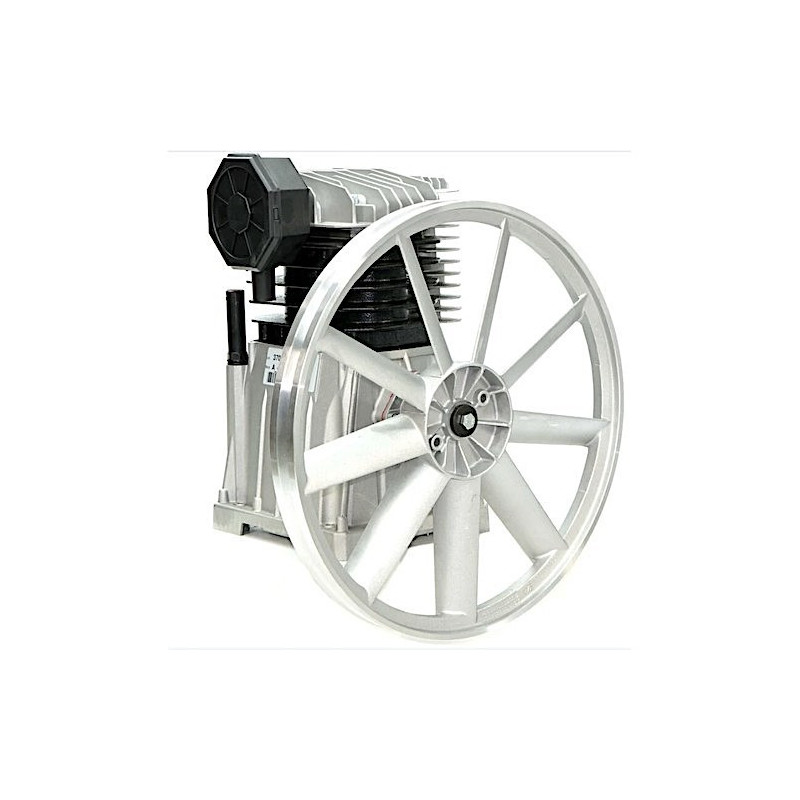

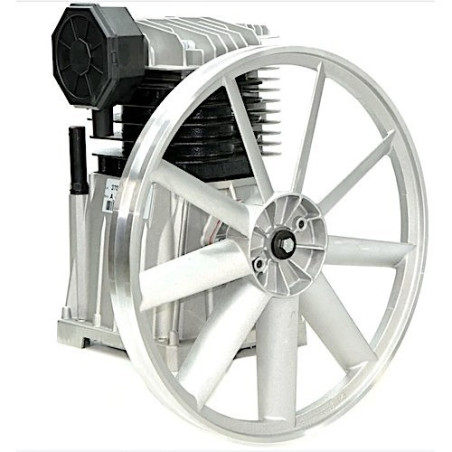

ABAC Pump Unit PAT38A A39B NS19S
€454.37
Tax included
ABAC Pump Unit PAT38A A39B NS19S
Pump Unit for ABAC Air Compressors with Belt Transmission from 50 to 200 liters Tanks, single-stage lubricated.Description:
PAT38A A39B NS19S single-stage 2-cylinder pumping unit complete with flywheel
Die-cast aluminum heads with large fins for better cooling.
Oversized oil sump for better lubrication.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
ABAC Pump Unit PAT38A A39B NS19S
Pump Unit for ABAC Air Compressors with Belt Transmission from 50 to 200 liters Tanks, single-stage lubricated.Description:
PAT38A A39B NS19S single-stage 2-cylinder pumping unit complete with flywheel
Die-cast aluminum heads with large fins for better cooling.
Oversized oil sump for better lubrication.
Special valve plates with very high wear resistance
Motor power: 3.0/4.0 HP / 2.2/3.0 kW
Technical data:
- Engine power: 3 Hp / 2.2 kW & 4 Hp / 3 kW
- Maximum pressure: 10 bar
- Intake air: 393 l/min with 3 Hp engine and 486 l/min with 4 Hp engine
- Max rpm: 1050 rpm with 3 Hp engine and 1300 with 4 Hp engine
- Number of cylinders: 2
- Stages: 1
- Code : 4116090651 (Spare Gray) - 4116090298
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
PAT38A A39B NS19S 4116090651
