Metabo Spare Parts for Band Saw BAS 250 0090025007 10
€1.66
Tax included
Metabo Spare Parts for Band Saw BAS 250 0090025007 10
Metabo original spare parts for to replace broken parts for to fix Band Saw BAS 250 0090025007 10.Fix Your Band Saw BAS 250. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Band Saw BAS 250 0090025007 10
Metabo original spare parts for to replace broken parts for to fix Band Saw BAS 250 0090025007 10.Fix Your Band Saw BAS 250. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

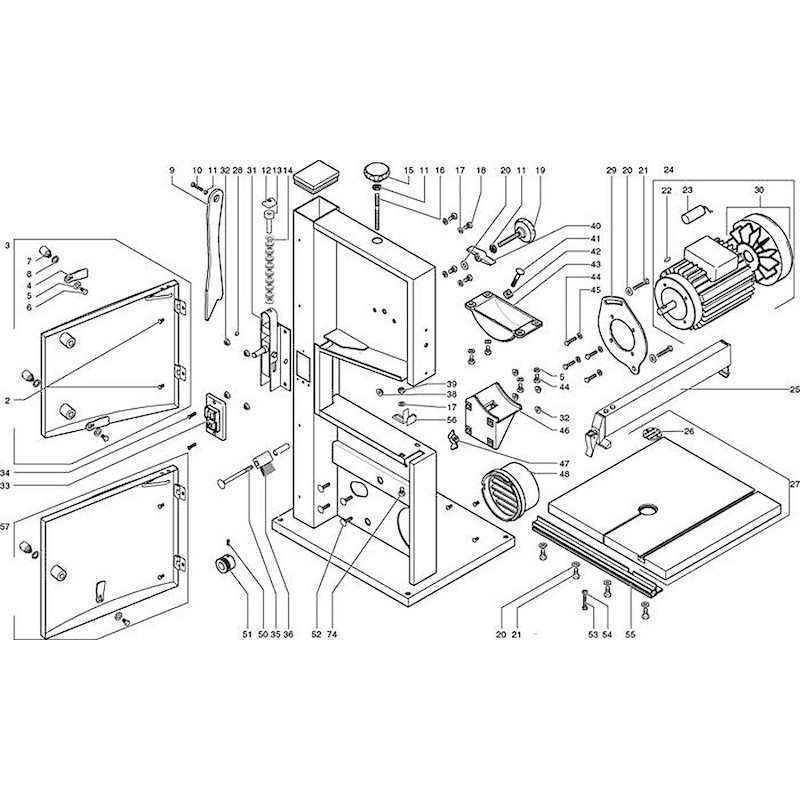

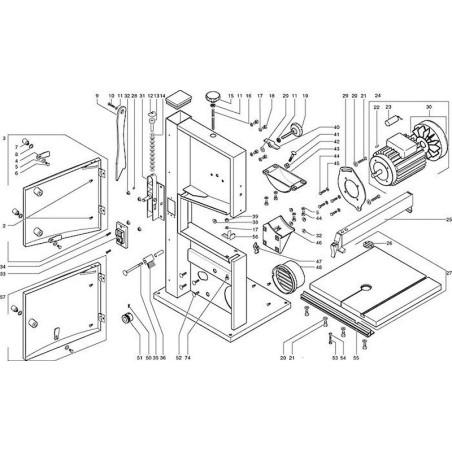

In the following table, look for the model of the Band Saw and the respective parts of the code.
| Wood Band Saw Metabo BAS 250 0090025007 10 | ||
| # | Part Num. | Description |
| 2 | 6123022619 | RAISED CHEESE HEAD SCREW |
| 3 | 1382680770 | DOOR, UPPER |
| 4 | 7014140071 | LATCH NARROW |
| 5 | 6304084047 | Serrated lock washer |
| 6 | 6103041013 | HEXAGON HEAD SCREW M 6X10 VERZ.FLECKBESC |
| 7 | 7014681129 | OPERATING INSERT WITH INSIDE SK |
| 8 | 6306002170 | SHIM RING 10X16X1 VERZ. |
| 9 | 1394201630 | Push stick |
| 10 | 6103001194 | HEXAGON HEAD SCREW M 8X25 VERZ. |
| 11 | 6200002235 | HEXAGON NUT |
| 12 | 1382680860 | THREADED PIECE M8 ET |
| 13 | 1385680879 | SPINDLE MOUNT |
| 15 | 6241133255 | KNURLED THUMB NUT RD 62,5 M 8 |
| 16 | 1385680844 | TENSION BOLT M8X100 ET |
| 17 | 6300016365 | Washer |
| 18 | 6103001127 | Hex head screw |
| 19 | 7001087619 | STAR KNOB SCREW M 8X40 RD 35 VERZINKT |
| 20 | 6300016322 | Washer |
| 21 | 6103001178 | Hex head screw |
| 22 | 6721074089 | Parallel key |
| 23 | 8050133045 | CAPACITOR 10uF/400V 36X72 BOLZEN M 8 KAB |
| 24 | 1009681090 | MOTOR 230V |
| 25 | 1009681147 | RIP FENCE ASSEMBLY |
| 26 | 1381680920 | TABLE INSERT RD 38X3,5 |
| 27 | 1380680935 | BANDSAW TABLE 340X345 |
| 28 | 6400047330 | RETAINING RING FOR SHAFTS 8X0,8 |
| 29 | 1382686850 | TENSION PLATE |
| 30 | 1009726507 | FAN WING+FAN COVER BAS 260 |
| 31 | 1385680801 | BEARING SHAFT |
| 32 | 6209114230 | Flange nut |
| 33 | 1009680833 | SWITCH |
| 34 | 6131001540 | CROSS RECESSED FLAT HEAD SCREW M 4X10 VE |
| 35 | 6110000667 | Truss head screw |
| 36 | 9132081414 | BRUSH STRIP |
| 38 | 6209110995 | Flange nut |
| 39 | 6202002291 | HEXAGON NUT, PREV. TORQUE TYPE |
| 40 | 7005135529 | Thumb-nut |
| 41 | 6110076574 | Truss head screw |
| 42 | 1381680947 | GLIDE SEGMENT |
| 43 | 1380680951 | TABLE TRUNNION, UPPER |
| 44 | 6103015675 | Hex head screw |
| 45 | 6304084047 | Serrated lock washer |
| 46 | 1380680889 | TABLE SUPPORT |
| 47 | 7000025458 | STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT |
| 48 | 1381053489 | CONNECTOR RD 100 SPA 1000 |
| 50 | 6161050910 | HEX. SOCKET SET SCREW, FLAT PT M 6X12 |
| 51 | 1385681077 | POLY-RIB PULLEY |
| 52 | 6110000594 | CUP SQUARE NECK SCREW |
| 53 | 6103019921 | HEXAGON HEAD SCREW M 6X30 VERZ. |
| 54 | 6200002219 | Hex nut |
| 55 | 1383681002 | GUIDE EXTRUSION 340MM |
| 56 | 1382680894 | SAWBAND GUARD |
| 57 | 1382680789 | DOOR, LOWER |
| 70 | 7232680916 | BANDSAW TYRE |
| 71 | 6400047349 | RETAINING RING FOR SHAFTS 10X1 VERZ. |
| 72 | 1380680790 | BANDSAW WHEEL, UPPER |
| 73 | 7100010180 | DEEP GROOVE BALL BEARING |
| 74 | 6103001135 | Hex head screw |
| 75 | 1385681085 | BEARING SHAFT |
| 76 | 1383680960 | BLADE GUIDE TUBE EXTRUSION |
| 77 | 6143071144 | KNURLED THUMB SCREW M 6X25 VERZ. |
| 78 | 6305002087 | Washer |
| 80 | 1382052818 | PILOT PIN 6,9X5,9X35 |
| 81 | 1009686866 | THRUST BEARING |
| 82 | 1009686874 | PIN GUIDE ASSEMBLY |
| 84 | 1380681044 | BANDSAW WHEEL, LOWER |
| 86 | 7232681068 | FLAT BELT |
| 87 | 6205088367 | HEXAGON THIN NUT |
| 89 | 1381680998 | SLIDER |
| 90 | 1381681021 | GUIDE PIECE |
| 91 | 6172065544 | LENS SHEET SCREW M.KRZSZ ST 4.8X32 |
| 92 | 1388681035 | SHAFT WITH GEARWHEEL |
| 93 | 1381681013 | STAR KNOB |
| 97 | 1380680978 | SEAT, THREE-ROLLER GUIDE |
| 98 | 6174001942 | COUNTERSUNK HEAD TAPPING SCREW |
| 99 | 1009681139 | THREE-ROLLER GUIDE ASSEMBLY |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo BAS 250 0090025007 10
11 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
