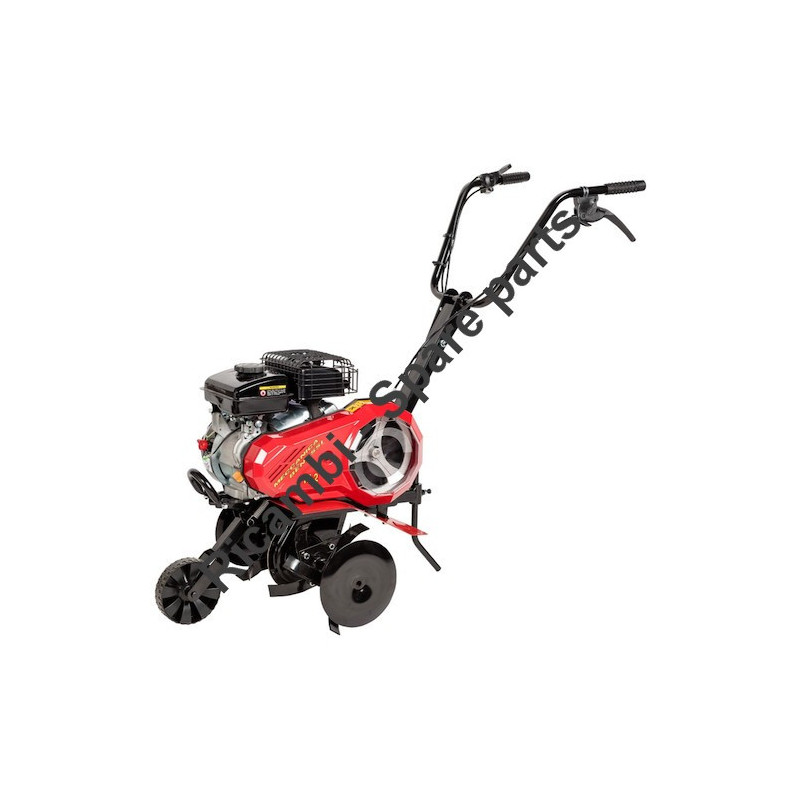

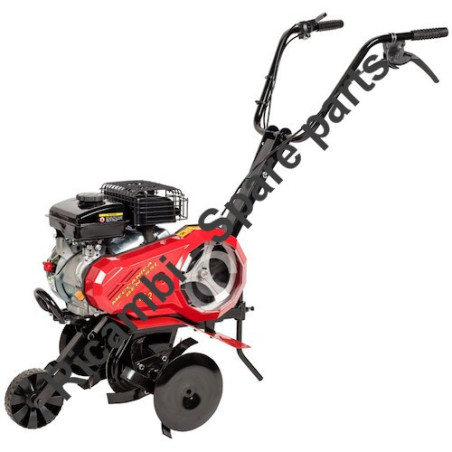

Meccanica Benassi Spare Parts for Tiller RL 2 - 06/2017
€2.55
Tax included
Meccanica Benassi Spare Parts for Motor Hoe RL 2 - 06/2017
Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor Hoe RL 2 to N° 2701745 - 06/2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Meccanica Benassi Spare Parts for Motor Hoe RL 2 - 06/2017
Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor Hoe RL 2 to N° 2701745 - 06/2017.In the following table, look for the model of the Tiller and the respective parts of the code.
| Meccanica Benassi Motor Hoe RL 2 to N° 2701745 - 06/2017 | ||
| Table 1 - Pag.1 | ||
| # | Part Num. | Description |
| 2 | SI0300062 | SCREW M8X16 |
| 3 | SI0300029 | NUT M8 |
| 4 | SI0310002 | SUPPORT II TYPE |
| 5 | SI0155310 | SCREW M8X20 |
| 6 | SI0300066 | SCREW M8X70 |
| 7 | SI0300053 | RIGHT SUPPORT |
| 8 | SI0300052 | LEFT SUPPORT |
| 9 | SI0150211 | NUT M8 |
| 11 | SI0300041 | BUSH |
| 12 | SI0300054 | BUSH |
| 13 | SI0300069 | WASHER Ø24 × Ø6.3 × 2 |
| 14 | SI0300055 | FIXING PLATE |
| 15 | SI0152111 | WASHER Ø20 × Ø8.5 × 2 |
| 16 | SI0300024 | INTERNAL CARTER |
| 17 | SI0300051 | BUSH |
| 18 | SI0300050 | ROD |
| 19 | SI0300057 | BELT 10X950 |
| 20 | SI0320008 | BELT COVER |
| 21 | SI0150610 | SCREW TE M8X35 |
| 22 | SI0152311 | NUT M8 |
| 23 | SI0300060 | SPERONE |
| 24 | SI0300059 | ATTACCO SPERONE |
| 25 | SI0149011 | FLAT WASHER Ø8 |
| 26 | SI0300067 | M6X30 SCREW |
| 27 | SI0061910 | Ø6 ELASTIC WASHER |
| 28 | SI0300048 | PULLEY |
| 29 | SI0300068 | 5X25 KEY |
| 30 | SI0300063 | PIN M8X15 |
| 31 | SI0300049 | PULLEY |
| 32 | SI0300056 | SPACER |
| 33 | SI0300065 | SCREW M8X105 |
| 34 | SI0300042 | LEFT HOLDER ENGINE |
| 35 | SI0300043 | RIGHT HOLDER ENGINE |
| 36 | SI0149710 | Ø8 ELASTIC WASHER |
| 37 | SI0152711 | BUSH Ø11.8 × Ø8.2 × 13.5 |
| 38 | SI0147811 | NUT M6 |
| 39 | SI0154610 | SCREW TE M8X50 |
| 40 | SI0300064 | SCREW TE M8X55 |
| 42 | SI0310028 | HOLDER TILLER (II TYPE) |
| 46 | SI0300045 | BLADE COVER LEFT |
| 47 | SI0300046 | BLADE COVER LEFT |
| 48 | SI0300044 | CASING HOLDER |
| 49 | SI0156011 | SPRING |
| 50 | SI0300038 | WHEEL WITH SUPPORT |
| 51 | SI0300061 | HANDLE |
| 52 | SI0148910 | SCREW TE M8X70 |
| 53 | SI0310001 | PIN |
| Table 2 - Pag.2 | ||
| 1 | SI0147811 | NUT M6 |
| 2 | SI0300004 | RIGHT CASING |
| 3 | SI0300003 | LEFT CASING |
| 4 | SI0300012 | GASKET |
| 6 | SI0300013 | SPRING |
| 7 | SI0300011 | BEARING 6202-2Z |
| 8 | SI0004910 | SEEGER Ø15 |
| 9 | SI0300005 | PRIMARY PINION |
| 10 | SI0153410 | SCREW M6X12 |
| 14 | SI0154010 | SEEGER Ø20 |
| 15 | SI0320001 | SHAFT II TYPE |
| 16 | SI0300010 | CHAIN 35-1-86 |
| 17 | SI0320002 | BEARING 6004-2RS |
| Table 3 - Pag.3 | ||
| 1 | SI0300016 | KNOB |
| 2 | SI0300020 | THROTTLE LEVER |
| 3 | SI0300022 | SCREW M5X30 |
| 4 | SI0147511 | FLAT WASHER Ø5 |
| 5 | SI0162606 | CLAMP |
| 6 | SI0147811 | NUT M6 |
| 7 | SI0062010 | FLAT WASHER Ø6 |
| 8 | SI0300019 | CORD GUARD |
| 9 | SI0148110 | SCREW ST4X12-C |
| 10 | SI0052306 | FLAT WASHER Ø4 |
| 11 | SI0148300 | SWITCH |
| 12 | SI0148406 | SWITCH SUPPORT |
| 13 | SI0148511 | NUT M5 |
| 14 | SI0310023 | CABLE STOP |
| 15 | SI0300021 | THROTTLE CABLE |
| 16 | SI0310015 | STYLE II TYPE |
| 17 | SI0300017 | CLUTCH CABLE |
| 18 | SI0300018 | RING |
| 19 | SI0200901 | CLUTCH LEVER |
| Table 4 - Pag.4 | ||
| 1 | SI0155310 | SCREW M8 × 20 |
| 2 | SI0150211 | NUT M8 |
| 3 | SI0300025 | INTERNAL CASE |
| 4 | SI0300030 | WASHER Ø24XØ8.5X2 |
| 5 | SI0300026 | FIXING ROD |
| 6 | SI0300027 | ARM PULLEY |
| 7 | SI0300029 | NUT M8 |
| 8 | SI0300028 | IDLER PULLEY |
| Table 5 - Pag.5 | ||
| 1 | SI0300032 | SCREW TE M8X20 |
| 2 | SI0300033 | BLADE LEFT |
| 3 | SI0300034 | BLADE RIGHT |
| 4 | SI0149710 | Ø8 ELASTIC WASHER |
| 5 | SI0152311 | NUT M8 |
| 6 | SI0300035 | INTERNAL HUB |
| 7 | SI0201101 | PIN |
| 8 | SI0155711 | PIN |
| 9 | SI0300036 | SIDE DISC |
| Table 6 - Pag.6 | ||
| 1 | SI0300036 | SIDE DISC |
| 2 | SI0300032 | SCREW TE M8X20 |
| 3 | SI0300033 | LEFT BLADE |
| 4 | SI0300034 | RIGHT BLADE |
| 5 | SI0149710 | Ø8 ELASTIC WASHER |
| 6 | SI0152311 | NUT M8 |
| 7 | SI0201101 | PIN |
| 8 | SI0300035 | INTERNAL HUB |
| 9 | SI0155711 | PIN |
| Table 7 - Pag.7 | ||
| 1 | SI0300039 | FORK |
| 2 | SI0150211 | NUT M8 |
| 3 | SI0300040 | WHEEL |
| 4 | SI0156311 | BUSH Ø11.8 × Ø8.2 × 56 |
| 5 | SI0156410 | SCREW TE M8X75 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RL 2 - 06/2017
