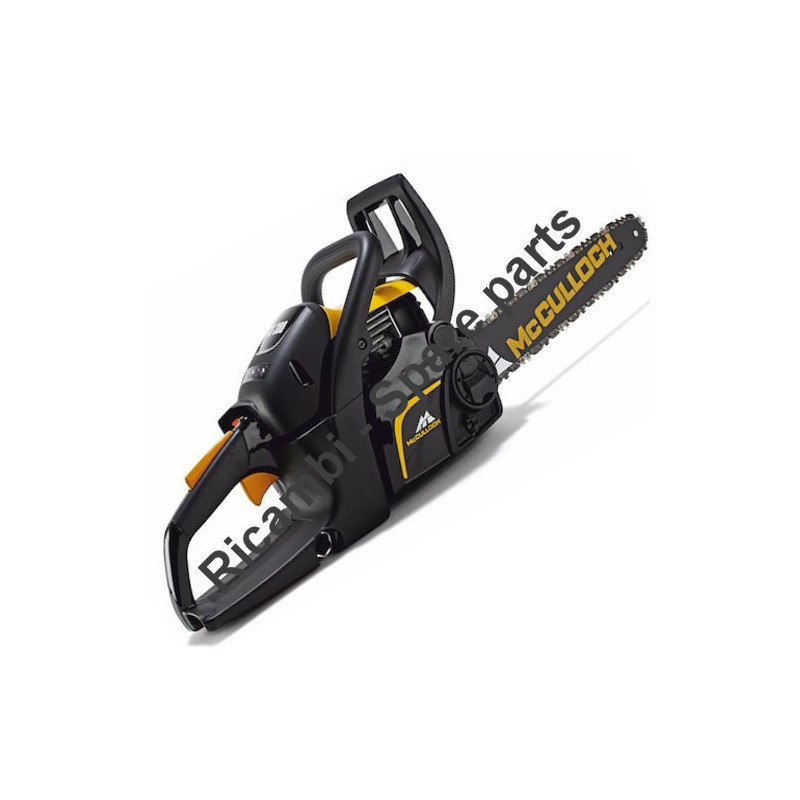

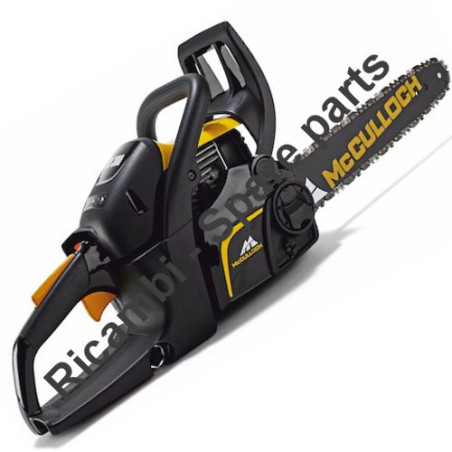

McCulloch Spare Parts for Chain Saw CS 340 - CS 380
€5.45
Tax included
McCulloch Spare Parts for Chain Saw CS 340 - CS 380
McCulloch genuine spare parts or replacement parts for to repair Chain Saw CS 340 - CS 380.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
McCulloch Spare Parts for Chain Saw CS 340 - CS 380
McCulloch genuine spare parts or replacement parts for to repair Chain Saw CS 340 - CS 380.In the following table, look for the model of the Chain Saw and the respective parts of the code.
Items will be shipped within 15/20 working days approx.
| A1 - CS380 CHAIN BRAKE & CLUTCH COVER | ||
| 1 | 576449301 | KIT, CHAIN BRAKE ASSEMBLY |
| 2 | 579107301 | ASSEMBLY KNOB EZT |
| 3 | 530057950 | PIN, DOWEL |
| 4 | 530057940 | ASSY, FRONT LINK |
| 5 | 574780301 | M3.63 X 1.34 X 8 TORX |
| 6 | 530016415 | SPRING COMPRESSION |
| 7 | 577830201 | KIT, BRAKE BAND |
| 8 | 545071002 | COVER, BRAKE BAND |
| 9 | 545227101 | SCREW 19 X .437 .PL. PAN. |
| 10 | 577830301 | KIT, GEARS |
| 11 | 577830401 | KIT, BAR ADJUST |
| 12 | 545059202 | COVER, GEAR |
| 13 | 545227101 | SCREW 19 X .437 .PL. PAN. |
| 14 | 576807801 | DECAL, EZT CLUTCH COVER |
| 15 | 576082301 | HEAT SHIELD |
| 16 | 545227101 | SCREW 19 X .437 .PL. PAN. |
| A2 - CS340 CHAIN BRAKE & CLUTCH COVER | ||
| 1 | 577805501 | KIT, CHAIN BRAKE ASS'Y FRT ADJ |
| 2 | 530057950 | PIN, DOWEL |
| 3 | 530057940 | ASSY, FRONT LINK |
| 4 | 574780301 | M3.63 X 1.34 X 8 TORX |
| 5 | 530016415 | SPRING COMPRESSION |
| 6 | 530069611 | KIT, BAR ADJUST |
| 7 | 577830201 | KIT, BRAKE BAND |
| 8 | 545071002 | COVER, BRAKE BAND |
| 9 | 545227101 | SCREW 19 X .437 .PL. PAN. |
| 10 | 530015917 | NUT, BAR MTG |
| 11 | 577815301 | DECAL, CLUTCH COVER |
| B - CS340, CS380 CLUTCH & OIL PUMP | ||
| 1 | 530014949 | ASSY CLUTCH |
| 2 | 530015611 | WASHER, CLUTCH (LARGE) |
| 3 | 530047061 | 3/86 TOOTH DRUM ASEMBLY |
| 4 | 579621501 | WASHER, THRUST |
| 5 | 581063901 | ASSEMBLY OIL PUMP |
| 6 | 525318401 | DUST SEAL |
| 7 | 530037820 | GEAR WORM |
| 8 | 577830501 | KIT, OIL BLOCK AND PICK UP |
| 9 | 530016064 | SCREW 19 X .437 .PL. PAN. |
| 10 | 581063901 | ASSEMBLY OIL PUMP COMPLETE |
| C - CS340, CS380 CYLINDER COVER | ||
| 1 | 577831501 | CS340, KIT CYLINDER SHIELD |
| 1 | 577831001 | CS380, KIT CYLINDER SHIELD |
| 2 | 574320601 | SCREW, CYLINDER SHIELD |
| 3 | 576807701 | DECAL, STARTING INSTRUCTION |
| * D1 - CS340, CS380 CYLINDER & PISTON ( ONLY FOR THES CODES ) 966631401, 966631402, 966631403, 966631404, 966631405, 966631501, 966631502, 966631503, 966631504, 966631505, 966631506, 966631507, 966631508, 966631509, 966631510, 967027401, 967027501 |
||
| 1 | 577831101 | KIT, CYLINDER & PISTON CS340, CS380 |
| 2 | 545081501 | BOLT, CYLINDER |
| 3 | 574190801 | INSERT, TRANSFER LEFT |
| 4 | 574190901 | INSERT, TRANSFER RIGHT |
| 5 | 585040601 | PISTON RING |
| 6 | 530015697 | PISTON PIN RETAINER |
| 7 | 503235108 | LUGSPARK (RCJ 7Y) |
| 8 | 577831301 | KIT, PISTON CS340, CS380 |
| * D2 - CS340, CS380 CYLINDE R & PISTON ( ONLY FOR THES CODES ) 967326201, 967326203, 967326204, 967326301, 967326303, 967326304, 967326307, 967326309 |
||
| 1 | 577831102 | KIT, CYLINDER & PISTON CS340, CS380 |
| 2 | 545081501 | BOLT, CYLINDER |
| 3 | 574190801 | INSERT, TRANSFER LEFT |
| 4 | 574190901 | INSERT, TRANSFER RIGHT |
| 5 | 585040601 | PISTON RING |
| 6 | 530015697 | PISTON PIN RETAINER |
| 7 | 503235108 | LUG SPARK (RCJ 7Y) |
| 8 | 577831301 | KIT, PISTON CS340, CS380 |
| * E1 - CS340, CS380 CRANK SHAFT ( ONLY FOR THES CODES ) 966631401, 966631402, 966631403, 966631404, 966631405, 966631501, 966631502, 966631503, 966631504, 966631505, 966631506, 966631507, 966631508, 966631509, 966631510, 967027401, 967027501 |
||
| 1 | 576243901 | ASSY MAIN BEARING & SEAL |
| 2 | 580302701 | ASSEMBLY CRANKSHAFT |
| 3 | 577830801 | KIT, CRANKSHAFT ASSEMBLY |
| * E2 - CS340, CS380 CRANK SHAFT ( ONLY FOR THES CODES ) 967326201, 967326203, 967326204, 967326301, 967326303, 967326304, 967326307, 967326309 |
||
| 1 | 581608001 | SEAL |
| 2 | 574449401 | BEARING |
| 3 | 577830802 | ASSEMBLY CRANKSHAFT |
| F - CS340, CS380 MUFFLER | ||
| 1 | 530016338 | MUFFLER BOLT |
| 2 | 530054884 | MUFFLER GASKET |
| 3 | 545066901 | MUFFLER BACK PLATE |
| 4 | 545008027 | KIT SPARK ARRESTOR |
| 5 | 545180843 | KIT MUFFLER COMPLETE |
| G - CS340, CS380 CARBURETOR & AIR FILTER | ||
| 1 | 586936202 | CARBURETOR (ZAMA) 200053A |
| 2 | 577815201 | THROTTLE WIRE |
| 3 | 575493401 | FILTER HOUSING |
| 4 | 545061801 | AIR FILTER |
| 5 | 545151801 | FILTER PLATE |
| 6 | 530016101 | NUT, CARB |
| 7 | 545061901 | ISOLATOR FILTER HOUSING |
| 8 | 577830701 | KIT, SWITCH LEVER |
| 9 | 545061601 | CHOKE KNOB |
| 10 | 545061501 | CARB ADAPTOR SEAL |
| 11 | 577636501 | CARB ADAPTOR |
| 12 | 545033701 | STUDCARBURETOR |
| 13 | 545158301 | CARB ADAPTOR SCREW |
| 14 | 530016080 | SCREW ROPE RETAINER |
| 15 | 545074901 | TOP STUDCARBURETOR |
| 16 | 545081892 | GASKET KIT |
| 17 | 530016349 | SCREW M5.28X1.81X16MM PLAS |
| * H1 - CS340, CS380 CRANKCASE ( ONLY FOR THES CODES ) 966631401, 966631402, 966631403, 966631404, 966631405, 966631501, 966631502, 966631503, 966631504, 966631505, 966631506, 966631507, 966631508, 966631509, 966631510, 967027401, 967027501 |
||
| 1 | 575943601 | HANDGUARD |
| 2 | 545127301 | BOSS SCREW, HANDGUARD |
| 3 | 576141001 | REAR WALL |
| 4 | 545227101 | SCREW, MTG REAR WALL |
| 5 | 545075401 | GROMMET, REAR WALL |
| 6 | 545071401 | PLATE BAR MOUNTING |
| 7 | 577830901 | KIT, SPRING, HANDGUARD POSITION |
| 8 | 577831201 | KIT, CHASSIS ASSEMBLY |
| 8 | 577831202 | KIT, CHASSIS ASSEMBLY, US/CANADA ONLY |
| 9 | 545033501 | ASSY, VENT LINE |
| 10 | 530026119 | CHECK VALVE (DUCK BILL) |
| 11 | 530021132 | LINERETURN PURGE |
| 12 | 530023877 | FITTING FUEL LINE |
| 13 | 545061901 | ISOLATOR FILTER HOUSING |
| 14 | 544111202 | ASSYOIL/FUEL CAP W/RET. |
| 15 | 530015906 | SCREW M5.28X1.81X16MM PLAS |
| 16 | 545033801 | ASSY FRONT ISOLATOR |
| 17 | 577540601 | REAR ISOLATOR SPRING |
| 18 | 530095646 | ASSY PICKUP |
| 19 | 530021106 | LINE, FUEL |
| 19 | 580403101 | LINE, FUEL, US/CANADA ONLY |
| 20 | 530015814 | SCREW CHAIN CATCHER |
| 21 | 530029850 | CHAIN CATCHER |
| 22 | 530038990 | SPIKE |
| 23 | 530016439 | SCREW SPIKE |
| 24 | 530014381 | KIT SPIKE |
| 25 | 529310301 | BOLT, BAR |
| * H2 - CS340, CS380 CRANKCASE ( ONLY FOR THES CODES ) 967326201, 967326203, 967326204, 967326301, 967326303, 967326304, 967326307, 967326309 |
||
| 1 | 575943601 | HANDGUARD |
| 2 | 545127301 | BOSS SCREW, HANDGUARD |
| 3 | 576141001 | REAR WALL |
| 4 | 545227101 | SCREW, MTG REAR WALL |
| 5 | 545075401 | GROMMET, REAR WALL |
| 6 | 545071401 | PLATE BAR MOUNTING |
| 7 | 577830901 | KIT, SPRING, HANDGUARD POSITION |
| 8 | 577831203 | KIT, CHASSIS ASSEMBLY |
| 9 | 545033501 | ASSY, VENT LINE |
| 10 | 530026119 | CHECK VALVE (DUCK BILL) |
| 11 | 530021132 | LINERETURN PURGE |
| 12 | 530023877 | FITTING FUEL LINE |
| 13 | 545061901 | ISOLATOR FILTER HOUSING |
| 14 | 544111202 | ASSYOIL/FUEL CAP W/RET. |
| 15 | 530015906 | SCREW M5.28X1.81X16MM PLAS |
| 16 | 545033801 | ASSY FRONT ISOLATOR |
| 17 | 577540601 | REAR ISOLATOR SPRING |
| 18 | 530095646 | ASSY PICKUP |
| 19 | 530021106 | LINE, FUEL |
| 19 | 580403101 | LINE, FUEL, US/CANADA ONLY |
| 20 | 530015814 | SCREW CHAIN CATCHER |
| 21 | 530029850 | CHAIN CATCHER |
| 22 | 530038990 | SPIKE |
| 23 | 530016439 | SCREW SPIKE |
| 24 | 530014381 | KIT SPIKE |
| 25 | 529310301 | BOLT, BAR |
| K - CS340, CS380 HANDLE | ||
| 1 | 576025401 | FRONT HANDLE |
| 2 | 576025501 | REAR HANDLE W/OVMLD |
| 3 | 576025701 | REAR HANDLE COVER |
| 4 | 577540801 | ASSY FRONT ISOLATOR |
| 5 | 576808301 | ISOLATION LIMITER SCREW |
| 6 | 530016433 | SCREW 816X15.1 PL PAN.TRX |
| 7 | 530016349 | SCREW M5.28X1.81X16MM PLAS |
| 8 | 530016432 | SCREW M5.3814X22.225MM |
| 9 | 577821901 | KIT TRIGGER & LOCKOUT |
| 10 | 577830001 | KIT HANDLE |
| 11 | 545227101 | SCREW 19 X .437 .PL. PAN. |
| 12 | 576389301 | SCRENCH CLIP |
| M - CS340, CS380 IGNITION SYSTEM | ||
| 1 | 575635502 | FLYWHEEL ASSY |
| 2 | 530015127 | WASHER, FLYWHEEL |
| 3 | 530016134 | NUT, FLYWHEEL |
| 4 | 575803501 | MODULE IGNITION |
| 5 | 545121901 | SCREW, IGN MODULE |
| 6 | 545079901 | ASSY WIRE HARNESS |
| N - CS340, CS380 STARTER | ||
| 1 | 530021179 | SCREW SHOULDER |
| 2 | 530059677 | STARTER HUB EPS |
| 3 | 530021180 | SPRING EPS |
| 4 | 530016080 | SCREW, ROPE RETAINER |
| 5 | 545058201 | PULLEY STARTER EPS |
| 6 | 530042095 | SPRING RECOIL |
| 7 | 545180812 | KIT, EPS STARTER |
| 8 | 575942801 | BAFFLE |
| 9 | 575942301 | FAN HOUSING |
| 10 | 576431301 | HANDLE & ROPE assy |
| 11 | 530016432 | SCREW M5.3814X22.225MM |
| 12 | 577162501 | KIT, COMPLETE EPS |
| 13 | 576807501 | DECAL, FAN HOUSING |
| P - CS340, CS380 CARBURETOR | ||
| 1 | 586936202 | CARB COMPLETE |
| 2 | 545008030 | PURGE AND LINE ASSEMBLY |
| 3 | 587609701 | KIT CARB REPAIR |
