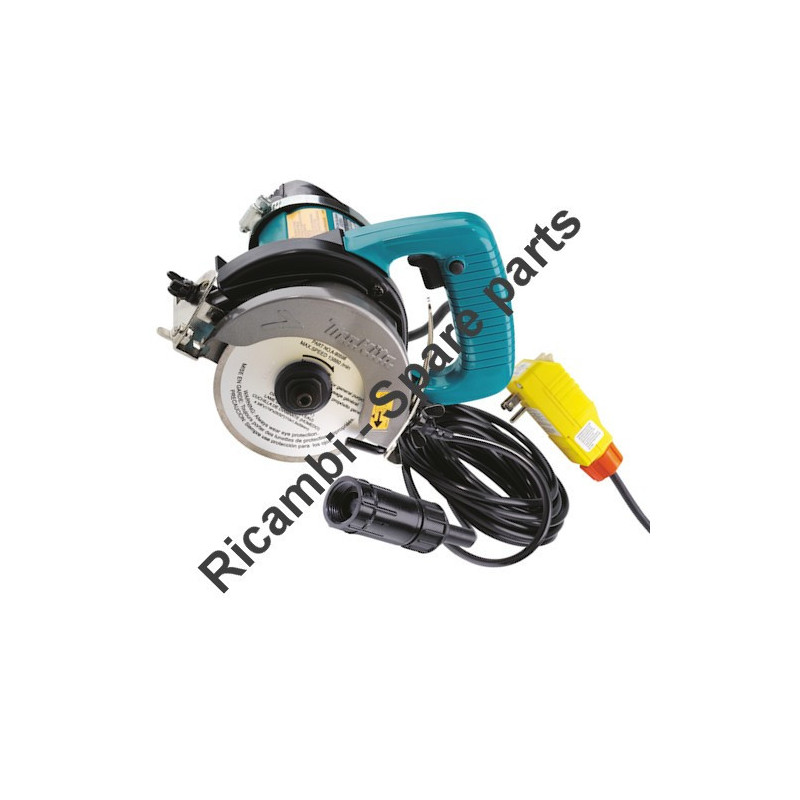

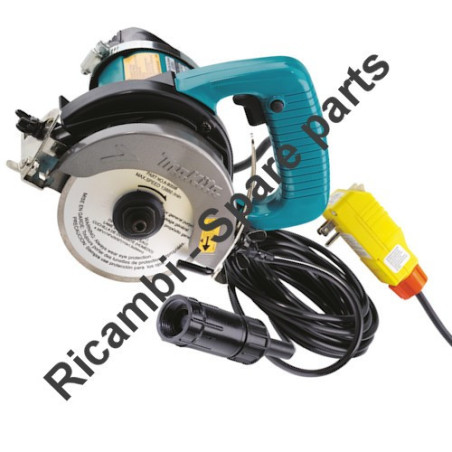

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for 5" Masonry Saw Wet Cutting Ø 110 mm 4101RH.
In the following table, look for the model of Dustless Cutter and the respective parts of the code.![]()
| Masonry Saw Wet Cutting 4101RH | ||
| # | Part Num. | Description |
| 1 | 266133-3 | BOLT M6 X 20 |
| 2 | 224081-2 | EXTERNAL FLANGE |
| 3 | 224080-4 | INTERNAL FLANGE 36 |
| 4 | 213255-0 | SEAL 18 |
| 5 | 285815-8 | BEARING RETAINER 19-33 |
| 6 | 321197-5 | TREE |
| 7 | 254001-2 | KEY CRESCENT 4 |
| 8 | 925146-0 | HEXAGON SCREW M4x25 |
| 9 | 151509-6 | HEADPHONES DISCO CPL 4101R |
| 10 | 911123-8 | HEAD SCREW CILIND. M4x14 |
| 11 | 153409-6 | TAP 4101R |
| 12 | 410910-7 | COVER B |
| 13 | 911203-0 | SCREW M5X8 |
| 14 | 150926-7 | HOUSING GEAR CPL |
| 15 | 213407-3 | SEAL 26 |
| 16 | 415403-9 | AIR CONVEYOR |
| 17 | 423155-8 | SEAL RUBBER |
| 18 | 414074-9 | COVER |
| 19 | 163282-6 | CERCHIETTO |
| 20 | 911258-5 | SCREW M5x35 |
| 22 | 212004-2 | ROLLER BEARING 810 |
| 23 | 226420-2 | GEAR |
| 24 | 961052-5 | RETAINING RING S12 |
| 26 | 911546-0 | HEAD SCREW CILIND. M4x25 |
| 27 | 911263-2 | HEAD SCREW CILIND. |
| 28 | 150927-5 | HOUSING MOTOR |
| 29 | 211129-9 | BALL BEARING 6201DD |
| 30 | 522843-5 | FIELD - STATOR 220 |
| 31 | 213262-3 | SEAL 18 |
| 32 | 253192-6 | FLAT WASHER 14 |
| 33 | 211033-2 | BEARING 608LB |
| 34 | 681613-2 | INSULATION WASHER |
| 35 | 516343-5 | ARMATURE |
| 36 | 240007-6 | FAN 68 |
| 37 | 253741-9 | FLAT WASHER 9 |
| 38 | 210042-8 | BEARING FOR 629LLB GD600 |
| 39 | 226419-7 | GEAR |
| 40 | 961004-6 | RETAINING RING S8 |
| 41 | 254002-0 | KEY CRESCENT 3 |
| 42 | 252623-2 | BUTTERFLY SCREW M6 |
| 43 | 942151-2 | WASHER 6 |
| 44 | 941151-9 | WASHER 6 |
| 45 | 168216-4 | BASE |
| 46 | 263002-9 | PIN RUBBER 4 |
| 47 | 911285-2 | SCREW M5x60 |
| 48 | 911133-5 | SCREW M4X18 |
| 49 | 687052-4 | CLAMP cable tie |
| 50 | 152597-6 | COVER HANDLE |
| 51 | 682504-0 | CABLE SLEEVE 10/85 |
| 53 | 421329-5 | DUST COVER |
| 54 | 651252-2 | SWITCH X 5014-5016 |
| 55 | 191963-2 | CARBON BRUSHES CB-303 |
| 56 | 643750-0 | PLUG BRUSH HOLDER |
| 57 | 645253-0 | CAPACITOR |
| 58 | 251886-7 | BUTTERFLY SCREW M6x10 |
| 59 | 942151-2 | WASHER 6 |
| 60 | 251919-8 | SCREW M6X20 |
| 61 | 951219-3 | JACK BAND 6/32 |
| 62 | 941151-9 | WASHER 6 |
| 63 | 654532-5 | TERMINAL BLOCK 6E / 1DS |
| 64 | 632829-2 | CABLE |
| 65 | 652014-1 | SCREW M4X8 |
