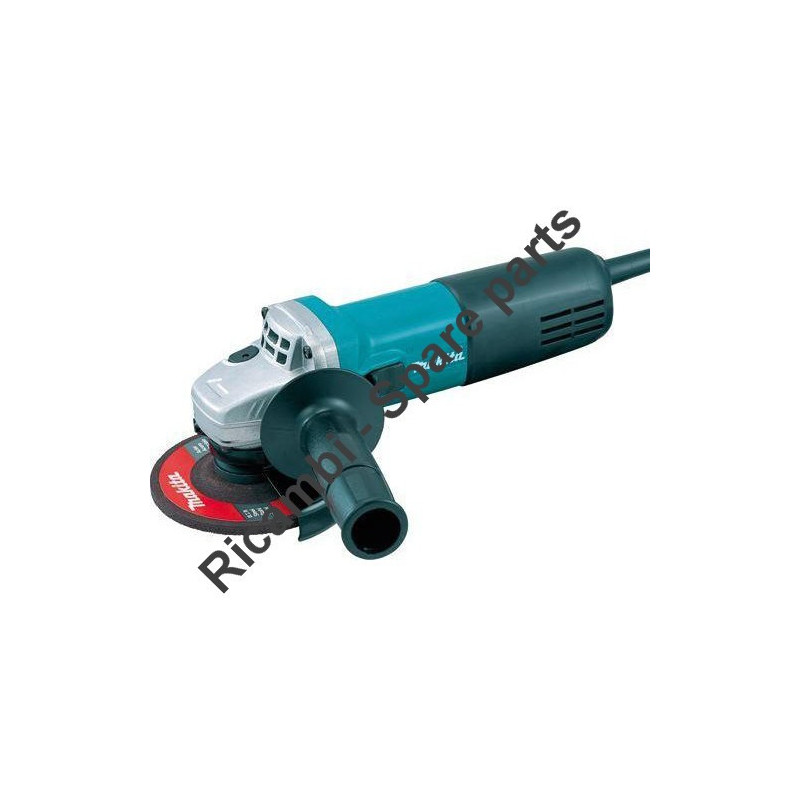

Makita Spare Parts for Angle Grinder 9554HNG
search
  • Makita Spare Parts for Angle Grinder 9554HNG
  • Makita Spare Parts for Angle Grinder 9554HNG

Makita Spare Parts for Angle Grinder 9554HNG

€38.65
Tax included

Makita Spare Parts for Angle Grinder 9554HNG

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder 9554HNG.
ITEM CODE: 153488-4
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Angle Grinder 9554HNG

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder 9554HNG.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.


Angle Grinder 9554HNG
1 621713-6 STATOR X 9554NB
2 418795-5 BAFFLEX 9554NB
3 421868-5 RUBBER RING X 9554NB
4 210034-7 BEARING 607LLB X 9554NB
5 681636-0 INSULATOR
6 515619-7 ARMATURE X 9554NB
7 240076-7 FAN 56 X 9554NB
8 317821-6 COVER SCAT.INGR. X 9554NB
9 213445-5 RING 26 X 9554NB
10 210042-8 BEARING FOR 629LLB GD0600
11 227541-3 GEAR 10
12 252186-8 NUT M6 X 9554NB
13 417771-6 BUTTON X 9554NB
14 233376-2 SPRING COMP. 8 X MT952
15 266050-7 SCREW 4X30 PT
16 213960-9 RING 5 X 9554NB
17 256546-6 DISC LOCK PIN
18 318941-9 GEAR BOX
19 263002-9 RUBBER PLUG 4
20 210033-9 BEARING 696ZZ X 2107FK
21 961052-5 RETAINING RING S12
22 267794-2 WAVY WASHER 12 X 9554NB
23 227542-1 GEAR 37
24 962151-6 RETAINING RING R32
25 211129-9 BALL BEARING NSK 6201DD
26 267238-2 WASHER 12 X 9554NB
27 213622-9 RING 45 X 9554NB
28 318331-6 BEARING BOX X 9554NB
29 265099-4 SCREW M4 X 14 X 9554NB
30 345464-4 RING DUST X 9554NB
31 254011-9 KEY 4
32 324489-1 POST X 9554NB
33 265180-1 SCREW M5X16
34 123098-1 WHEEL GUARD 115AK
35 224415-9 FLANGE INTERNAL 42 GA95010
36 224554-5 EXTERNAL FLANGE 14-45 X 9541
37 266325-4 SCREW M 4 X 70 X MT952
39 266007-8 SCREW M3 X10 HP2030
40 643760-7 BRUSH HOLDER X BO6040
41 194074-2 CARBON BRUSHES CB-325 X 9554NB
43 651947-7 SWITCH-9527PB 9528PB
44 687124-5 CLAMP ties MT953
45 265995-6 SCREW M4X18 X 6408 / 6221DW
46 638740-6 CAPACITOR
47 682559-5 CORD ARMOR X 6822
49 419566-3 BUTTON SWITCH 9554NB
50 451126-5 HOUSING MOTOR X 9554NB
51 643760-7 BRUSH X BO6040
52 233121-5 SPRING COMPRESSION 4 X 9554NB
53 418796-3 LEVER SWITCH X 9554NB
54 418726-4 BACK COVER X 9554NB
55 265995-6 SCREW M4X18 X 6408 / 6221DW
