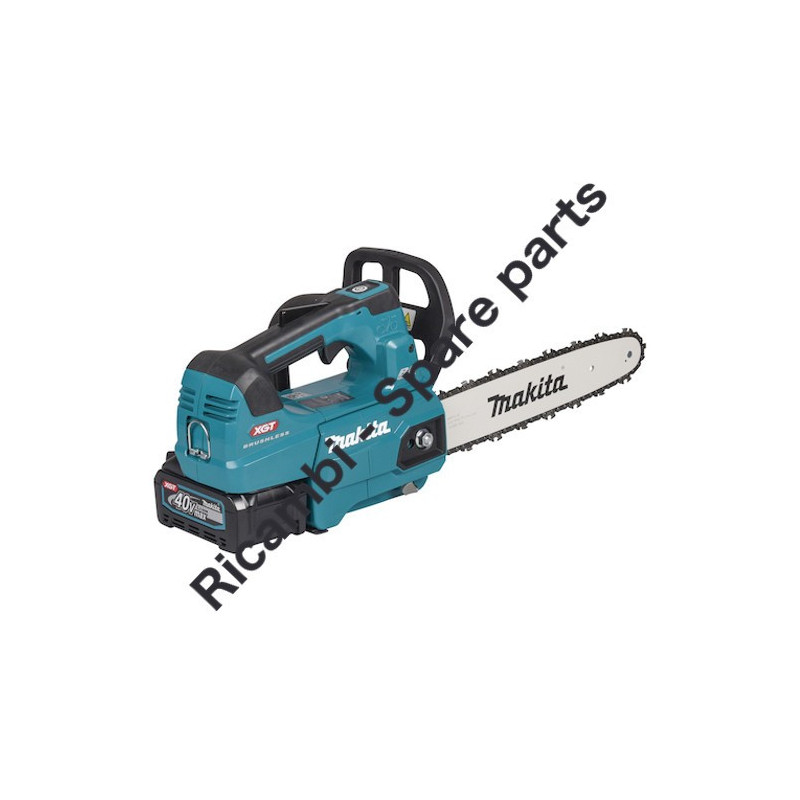

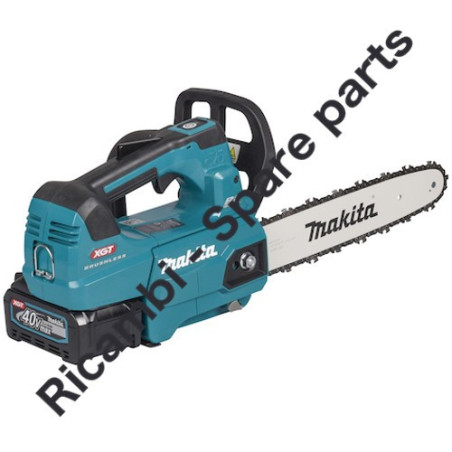

Makita Cordless Chainsaw UC002G Parts
€5.43
Tax included
Makita Cordless Chainsaw UC002G Spare Parts
Fix Your Cordless Chainsaw UC002G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Cordless Chainsaw UC002G Spare Parts
Fix Your Cordless Chainsaw UC002G. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
| MAKITA UC002G 25cm CORDLESS CHAIN SAW 115MM Spare Parts | ||
| # | Part Num. | Description |
| 001 | 413979-0 | FRONT HANDLE |
| 002 | 122A77-2 | TANK CAP ASSEMBLY |
| D10 | INC. 3 | |
| 003 | 213080-9 | O RING 29.5 |
| 004 | 266326-2 | TAPPING SCREW 4X18 |
| 005 | 8041P2-4 | UC002G MODEL NO. LABEL |
| 006 | 141G07-0 | SWITCH CIRCUIT COMPLETE |
| C10 | 810D46-0 | SWITCH LABEL |
| 007 | 266420-0 | TAPPING SCREW 5X20 |
| 007-1 | 265C57-8 | TAPPING SCREW 5X20 |
| 008 | 183U56-5 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 19,45 | |
| 008-1 | 1831C9-5 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 19,45 | |
| 009 | 232713-7 | TORSION SPRING 10 |
| 009-1 | 232867-0 | TORSION SPRING 10 |
| 010 | 413987-1 | CATCH LEVER |
| 010-1 | 141V70-3 | LOCK OFF LEVER COMPLETE |
| 011 | 650011-1 | SWITCH C3JR-4BM-PAND3 |
| 012 | 632L49-0 | SWITCH UNIT |
| 013 | 459282-5 | SWITCH LEVER |
| 014 | 632L48-2 | SWITCH UNIT |
| 015 | 620F70-5 | CONTROLLER |
| C10 | 688131-1 | LINE FILTER |
| 015-1 | 620P50-1 | CONTROLLER |
| C11 | 688131-1 | LINE FILTER |
| 016 | 652031-1 | PAN HEAD SCREW M3X6 |
| 017 | 632S63-8 | TERMINAL UNIT |
| 018 | 8110T7-9 | UC002G SERIAL NO. LABEL |
| 019 | 422467-6 | CAP |
| 020 | 422764-0 | OIL TUBE 3-85 |
| 021 | 911113-1 | PAN HEAD SCREW M4X10 WITH |
| WR | ||
| 022 | 142156-4 | OIL PUMP COMPLETE |
| 023 | 422765-8 | OIL TUBE 3-109 |
| 024 | 231975-4 | SPRING |
| 025 | 452666-6 | NIPPLE |
| 026 | 911218-7 | PAN HEAD SCREW M5X14 |
| 027 | 961011-9 | STOP RING E-4 |
| 028 | 226884-0 | WORM GEAR |
| 029 | 413904-1 | MOTOR HOUSING |
| 030 | 652093-9 | PAN HEAD SCREW M2X5 |
| 030-1 | 652119-7 | PAN HEAD SCREW M2X6 |
| 031 | 620F73-9 | SENSOR UNIT |
| 032 | 652069-6 | FLAT HEAD SCREW M3X6 |
| 033 | 629A85-9 | STATOR |
| 034 | 413980-5 | BAFFLE PLATE |
| 034-1 | 413V76-4 | BAFFLE PLATE |
| 035 | 266326-2 | TAPPING SCREW 4X18 |
| 036 | 210026-6 | BALL BEARING 696ZZ |
| 037 | 519710-3 | ROTOR ASSY |
| D10 | INC. 36,38 | |
| 038 | 210059-1 | BALL BEARING 6000DDW |
| 039 | 911118-1 | PAN HEAD SCREW M4X12 |
| 040 | 413907-5 | FRONT HAND GUARD RETAINER |
| 041 | 141E58-1 | FRONT HAND GUARD COMPLETE |
| C10 | 8042N8-4 | CAUTION LABEL |
| 042 | 232714-5 | COMPRESSION SPRING 3 |
| 043 | 313212-9 | HAND GUARD GUIDE |
| 044 | 8110T4-5 | UC002G NAME PLATE |
| 045 | 183U56-5 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 8,19 | |
| 045-1 | 1831C9-5 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 8,19 | |
| 046 | 8012U4-2 | XGT LOGO LABEL |
| 047 | 422466-8 | GROMET |
| 048 | 227620-7 | DRIVE GEAR 14 |
| 049 | 227634-6 | STRAIGHT BEVEL GEAR 14 |
| 050 | 347517-5 | TENSION SLIDE |
| 051 | 327317-9 | ADJUST SCREW |
| 052 | 227496-2 | STRAIGHT BEVEL GEAR 14 |
| 053 | 281222-3 | HOOK |
| 054 | 347514-1 | HOOK SUPPORT |
| 054-1 | 347D19-5 | HOOK SUPPORT |
| 055 | 347516-7 | CHAIN CATCHER |
| 056 | 266326-2 | TAPPING SCREW 4X18 |
| 057 | 266326-2 | TAPPING SCREW 4X18 |
| 058 | 346809-9 | SPIKE BUMPER |
| 059 | 141E60-4 | LINK PLATE COMPLETE |
| 060 | 232452-9 | COMPRESSION SPRING 7 |
| 061 | 347864-4 | BRAKE BAND |
| 062 | 413981-3 | HOUSING R COVER |
| 063 | 266326-2 | TAPPING SCREW 4X18 |
| 064 | 162979-4 | BRAKE DRUM |
| 065 | 213060-5 | O RING 10 |
| 066 | 191V90-7 | SPROCKET 6 SET |
| 067 | 961013-5 | STOP RING E-7 |
| 068 | 347533-7 | GUIDE PLATE L |
| 069 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 |
| 070 | 266007-8 | TAPPING SCREW BIND PT 3X10 |
| 071 | 347534-5 | GUIDE PLATE R |
| 072 | 136573-8 | SPROCKET COVER ASS'Y |
| D10 | INC. 70,71,73,74,76 | |
| 073 | 162494-8 | FLANGE NUT COMPLETE |
| 074 | 413986-3 | NUT COVER |
| 076 | 422310-9 | CHIP GUIDE |
| 077 | 324616-0 | HOSE CLAMP |
| A01 | 191G14-3 | GUIDE BAR 10 SET |
| A02 | 458501-6 | GUIDE BAR CASE |
| A02-1 | 458501-6 | GUIDE BAR CASE |
| A03 | 199897-3 | OIL VESSEL SET |
| A04 | 199075-5 | SAW CHAIN SET |
| A04-1 | 191H00-0 | SAW CHAIN 10 SET |
| A05 | 782023-7 | WRENCH 13-16 |
| A07 | 412393-7 | BATTERY COVER |
| A07-1 | 412393-7 | BATTERY COVER |
| A08 | 191E07-8 | DC40RA FAST CHARGER |
| D10 | 630B63-0 | DC40RA (BULK) FAST CHARGER |
| A09 | 191B36-3 | BATTERY BL4025 40V MAX 2,5AH |
| A11 | 191C10-7 | INTERCHANGEABLE ADAPTER |
| A12 | 191J81-6 | KIT ENERGY 40VmaxBL4025 2,5Ax2+DC40RA |
| A13 | 191J97-1 | KIT ENERGY 40VmaxBL4040 4Ax2+DC40RA |
| E01 | 8039U0-8 | CAUTION TAG |
| E02 | 8040V6-2 | SOUND LABEL |
| F02 | 191H00-0 | SAW CHAIN 10 SET |
| F03 | 191H08-4 | SAW CHAIN 10 SET |
| F04 | 191V90-7 | SPROCKET 6 SET |
| F06 | 195093-1 | CHAIN OIL SET |
| F07 | 195923-6 | ROUND FILE 4.5 SET |
| F07-1 | D-70954 | FILE HOLDER SET 4.5MM(11/64") |
| F08 | 196205-9 | SAW CHAIN SET |
| F09 | 198457-8 | CHAIN EDGER SET |
| F09-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") |
| F10 | 199075-5 | SAW CHAIN SET |
| E01 | 8032W7-6 | CAUTION TAG |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
