Makita Spare Parts for Lawnmower PLM5102

€7.73
Tax included

Makita Spare Parts for Lawnmower PLM5102

We have the original Makita Spare Parts for Lawnmower PLM5102, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawnmower PLM5102. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 671006062
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Lawnmower PLM5102

Fix Your Makita Spare Parts for Lawnmower PLM5102. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Lawnmower and the respective parts of the code.
Makita PLM5102

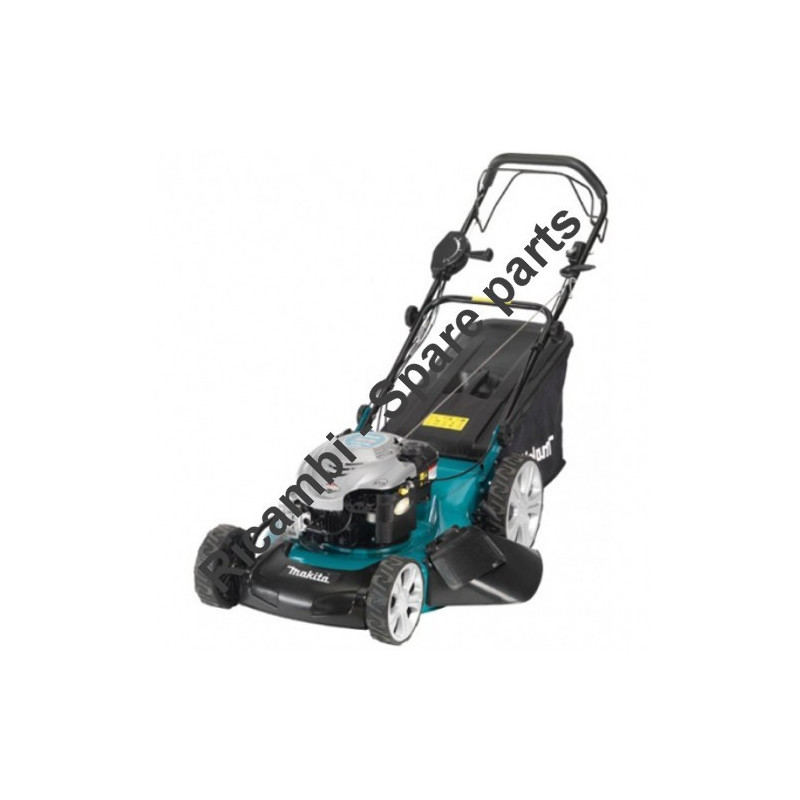

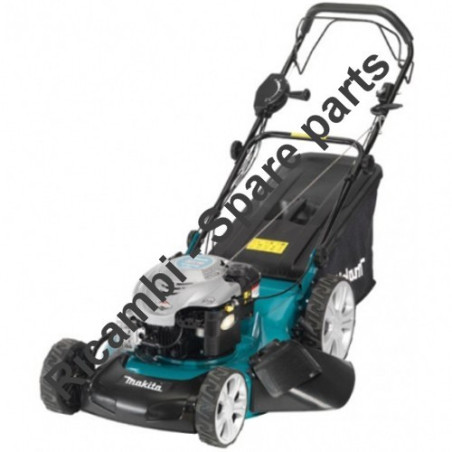

PLM5102 - PETROL LAWNMOWER MAKITA 51CM 190cc
# Part Num. Description
1 671006062 BLADE TIGHTEN SCREW PM5100S3
2 671010730 WASHER D.44.5 / 10.2X2.5
3 671002552 BLADE FOR PM5102S3
4 671015252 BLADE BOSS PM5100S3
5 671090002 WOODROOF KEY PLM4110-4610-4611
6 671003005 SCREW M6X10 PLM4110-4610-4611
7 671004013 PULLEY PM5100S3
8 DA00000968 RUBBER BELT PM5100S3
9 671006066 SCREW PM5100S3
10 DA00000873 SCREW M4,2X15 ELM 3310-3710
11 671005008 NUT M8 PLM4110-4610-4611
12 671522001 BELT COVER PM5100S3
13 671011136 SPRING PM5100S3
14 671001539 PLATE PM5100S3
15 671004015 BEARING 6001RS
16 671005028 NUT M8 ELM4110
17 671005024 NUT M6 ELM4110
18 671003044 SCREW M8X17X35 PLM4110-4610-11
19 671006025 SCREW M8X35 PLM4110-4610-4611
20 671003024 SCREW M8X60X17 PLM4110-4610-11
21 671008002 WASHER ELM4110
22 671007007 WASHER 8 ELM3310-3710
23 671001062 SCREW 4,2X10 PM5100S3
24 671001177 WHEEL COVER 200 ELM4110
25 671004012 BALL BEARING 6201Z ELM4110
26 671020160 WHEEL 200 PLM4110-4610-4611
27 671418001 FIXED BRACKET ELM4110
28 671002028 SCREW M6X45 ELM4110
29 671513001 FRONT PANEL PM5100S3
30 671001573 FRONT AXLE PM5100S3
31 671445001 BRACKET PRESSING BOARD ELM4110
32 671005005 NUT M6 ELM4110
33 671011142 SPRING PM5100S3
34 671001322 BOSS COVER PM5100S3
35 671002021 REAR WHEEL PM5100S3
36 671200010 GEAR PM5120-5120S
37 671001005 SCREW M4X16 ELM3310-3710
38 671518001 INNER WHEEL COVER PM5100S3
39 671001575 BAR PM5100S3
40 671001326 CHASSIS PM5102
41 671010280 HEIGHT ADJUSTABLE PLATE
42 671002019 SCREW M6X12 ELM4110
43 671111300 TORSION SPRING
44 671001019 PLATE PM5100S3
45 671001571 PLATE PM5100S3
46 DA00000198 ELASTIC WASHER
47 671201501 PM5100S3 SCREW
48 671514001 SIDE EXHAUST COVER PM5100S3
49 DA00000969 PROTECTION PM5100S3
50 671090020 WASHER PLM4110-4610-4611
51 DA00001090 SPROCKET SX PLM4110-4610-4611
52 DA00001029 BALL BEARING FOR ELM4611
53 DA00000610 BALL BEARING BOX
54 671090001 PIN 5X21.5
55 671001244 PLATE ELM4110
56 671501031 TRACTION SET PM5100S3
57 DA00001091 RATCHET WHEEL DX PLM4611
58 DA00000915 FIXING PLATE 2
59 671006064 SCREW M8X6 ELM4110
60 671001460 PLATE PLM4110-4610-4611
61 671008003 WASHER PLM4110-4610-4611
62 671005011 NUT M5 ELM4110
63 671001082 LOWER PULLEY
64 671001082 LOWER PULLEY
65 671010540 UPPER PULLEY
66 671011122 SPRING PM5100S3
67 671001457 PROTECTION PLATE
68 671009020 RING 19 PM5100S3
69 671006123 SCREW M5X55
70 671009003 WASHER D.19X1.5 PLM4611
71 671001574 REAR AXLE PM5100S3
72 671002030 SCREW PM5100S3
73 DA00001074 DEPTH LEVER PLM5113N
75 671001356 SUPPORT DX PM5100S3
76 671009017 BRAKE RING ELM4110
77 671001518 SUPPORT PLM4110-4610-4611
78 671011101 SPRING ELM4110
79 671001355 SUPPORT DX PM5100S3
80 671144701 RUBBER RING PM5100S3
84 671011162 SPEED GEARBOX CABLE PM5100S3
85 671001028 SCREW
86 671001513 BUSHING 9X32
87 671470001 CASE SX PM5100S3
88 671006011 SCREW M6X35 PLM4110-4610-4611
89 671001514 CONTACT PM5100S3
90 671002075 WASHER 12/4
91 671006063 SCREW M6X40
92 671317001 PLATE PLM4110-4610-4611
93 671011005 SPRING PLM4110-4610-4611
94 671316004 LOCK BUTTON PLM4110-4610-
95 671509001 MULCHING CAP PM5100S3
96 671001511 SCREW M6X60
97 671470002 CASE DX PM5100S3
98 671011123 SPRING
99 671001458 LEVER
100 671471001 LEFT PLATE PM5100S3
101 671001454 TRACTION LEVER PLM4110-4610
102 671001448 ENGINE BRAKE LEVER PM4110-4610
103 671001524 PRESSURE PLATE PM5100S3
104 671001017 HANDLE COVER PM5100S3
105 671001497 HANDLE PM5100S3
106 671471002 PLATE PM5100S3
107 671001151 ENGINE BRAKE CABLE PM5100S3
108 DA00000977 TRACTION CABLE PM5100S3
109 671336001 SUPPORT PLM4110-4610-4611
110 671005016 NUT M6 PLM4110-4610-4611
111 671007008 PLM4110-4610-4611 WASHER
112 671001150 THROTTLE CABLE PM5100S3
113 671006059 SCREW M6X50 PLM4110-4610-4611
114 671177001 CABLE SUPPORT ELM4110
115 671001647 LOCKING RING PM5100S3
116 671005023 NUT M8
117 671530010 KNOB PLM5600
118 671001085 WASHER ELM4110
119 671006004 SCREW M8X52
120 671178001 CORD PROTECTING SHEATH PLM4110-4610-4611
121 671001453 LOWER HANDLE PLM4110-4610-4611
122 DA00000880 SCREW M8X35 ELM4410
123 671454001 GRASS BAG HANDLE ELM4410
124 671521001 GRASS BAG COVER PM5100S3
125 671468001 COVER PLM4110-4610-4611
126 671001443 GRASS BAG FRAME PLM4110-4610-4611
127 671001436 WASHER ELM4110
128 671001203 PLATE ELM4110
129 671105502 SCREW M5X16
130 671001054 SCREW 5X12 ELM3310-3710
131 671001353 PLATE PLM4110-4610-4611
132 671144401 GRASS BAG PLM5102
133 671011021 SPRING PM5100S3
134 671003042 SCREW
135 671001455 SUPPORT PM5100S3
136 671001056 PULLEY
137 671009021 RING 28
138 671001533 PRESSURE PLATE
139 DA00000971 PLATE
140 671001078 KEY 21MM PLM4110-4610-4611
141 671001079 KEY LEVER 21 PLM4110-4610
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
