Makita Spare Parts for Electric Saw 5014B
search
  • Makita Spare Parts for Electric Saw 5014B

Makita Spare Parts for Electric Saw 5014B

€16.76
Tax included

Makita Spare Parts for Electric Saw 5014B

Makita original spare parts for to make maintenance, replacement of broken parts or repair electrical or mechanical components for to fix Corded Chain Saw 5014B.
ITEM CODE: 152252-0
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Electric Saw 5014B

Makita original spare parts for to make maintenance, replacement of broken parts or repair electrical or mechanical components for to fix Corded Chain Saw 5014B.

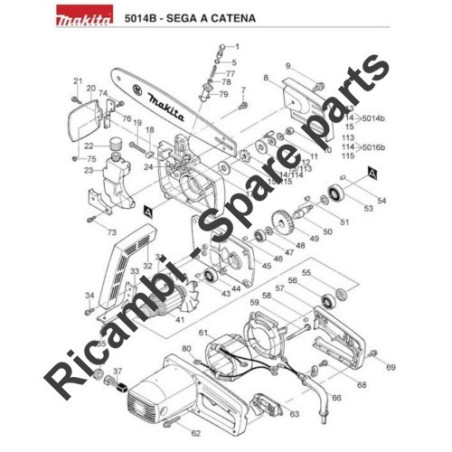

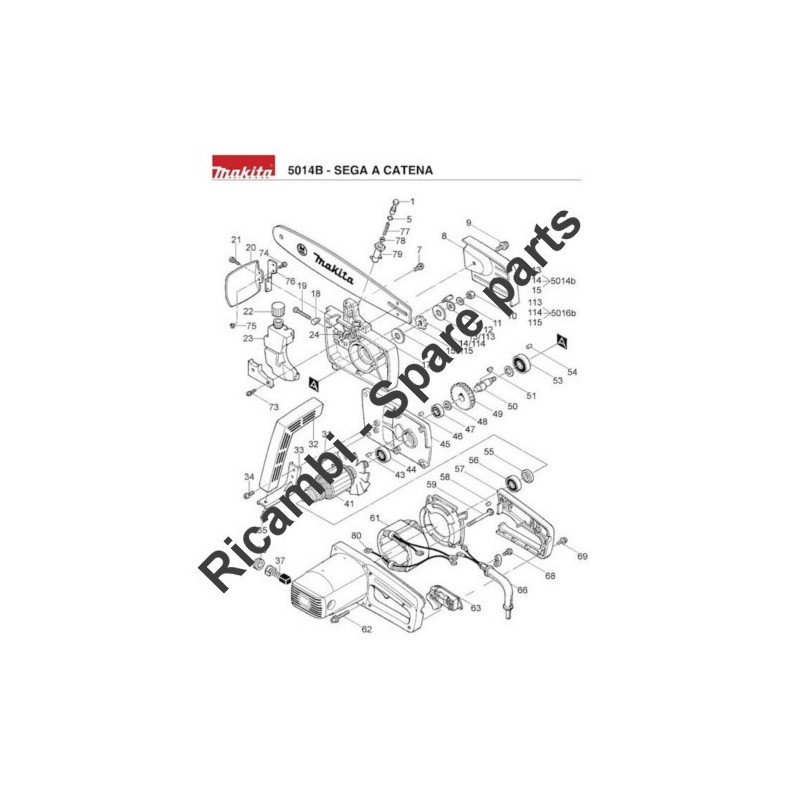

In the following table, look for the model of Electric Saw and the respective parts of the code.
Makita 5014B

Corded Chain Saw 5014B
# Part Num. Description
1 321261-2 OIL BUTTON X 5011B / 12B
5 213003-7 GASKET 6 5011NB / 14B
7 911223-4 CYLINDER HEAD SCREW. M5X16
8 345160-4 BLADE COVER 5014B / 16B
9 251697-0 BOLT WITH BORDER M8X17
10 252043-0 NUT M8 / 13 5014B / 16B / 12B
11 942201-3 WASHER 8
12 941201-0 FLAT WASHER 8
13 253753-2 FLAT WASHER 12 5011NB / 14B
14 221504-1 SPROKET 9 5011NB / 14B
15 345159-9 5014B BLADE HOLDER PLATE
16 253753-2 FLAT WASHER 12 5011NB / 14B
17 156916-8 NEW GEAR BOX X5014 / 16B
18 325549-2 PIN 5014B / 16B
19 265062-7 SCREW M5X40 5011NB / 14B / 16B
20 411747-5 GUARD X 5012B / 14B / 16B
21 911211-1 SCREW M5X12
22 242054-3 CAP 5014B / 16B
23 155812-7 OIL TANK 5014B / 16B
24 412025-6 PIPE 4 5011NB / 14B / 16B
31 911231-5 CYLINDER HEAD SCREW. M5X20
32 273603-5 HANDLE 5014B / 5016B
33 322046-9 HOLDER KNOB 5014B / 16B
34 911218-7 CYLINDER HEAD SCREW. M5x14
35 911211-1 SCREW M5X12
36 643650-4 BRUSH HOLDER CAP
37 181044-0 CARBON BRUSH CB-153 (150/52/54)
41 514557-0 ARMATURE X 5014B / 5016B
43 263005-3 RUBBER PIN 6
44 211129-9 BEARING 6201DD NSK
45 156969-7 GEAR BOX CAP5014B / 16B
46 263002-9 PIN RUBBER 4
47 211131-2 BALL BEARING 6001DD
48 253052-2 WASHER 12
49 221636-4 GEAR 53 5014B / 16B
50 325550-7 SHAFT 5014B / 16B
51 254032-1 WOODRUFF 5
53 211228-7 BEARING 6202DD BEARING
54 263005-3 RUBBER PIN 6
55 681623-9 ISOLATING WASHER
56 211087-9 BALL BEARING 6200DDW NSK
57 414119-3 COVER GRIP 5014B / 16B
58 263002-9 PIN RUBBER 4
59 911290-9 SCREW M5X65
61 524508-5 STATOR X 5014B / 5016B
62 911266-6 CYLINDER HEAD SCREW. M5X45
63 651034-2 X 5014 / 16B SWITCH
66 682505-8 CORD GUARD 10/90
68 911133-5 SCREW M4X18
69 911151-3 CYLINDER HEAD SCREW. M4X28
73 911546-0 CYLINDER HEAD SCREW. M4x25
74 911223-4 CYLINDER HEAD SCREW. M5X16
75 252156-7 NUT M5 X 4191D
76 341772-1 HOLDER PROTX5014 / 16B
77 231294-8 SPRING 6 X5012B
78 253811-4 WASHER 5 X 5012B
79 152252-0 PUMP BODY X 5014 / 16B
80 654020-2 TERMINAL RING 94
113 253813-0 FLAT WASHER 12 5012B / 2708
114 221514-8 SPROCKET 5012B / 16B 6 TEETH
115 341650-5 GUIDE BAR X 5016B
501 511492752 SAW CHAIN 14" 3/8" 1,3 MM 0,50" 52
502 511492756 SAW CHAIN 16" 3/8" 1,3 MM 0,50" 56
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
