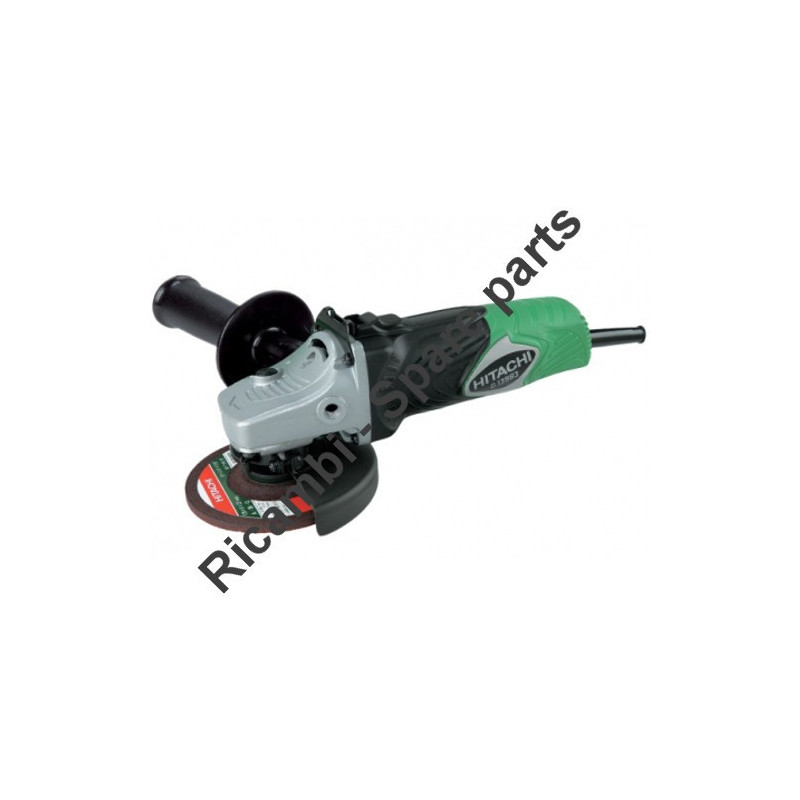

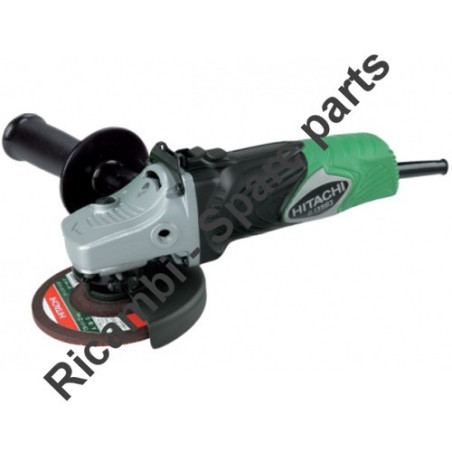

We have the original Spares Hitachi-HIKOKI for Angle Grinder 125 mm G13SN the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Angle Grinder G13SN. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table , look for the model of the grinder and the ripettivo spare part.![]()
| Angle Grinder 125 mm G 13SN | ||
| 1 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 2 | 301944 | PUSHING BUTTON |
| 3 | 332529 | GEAR COVER ASS'Y |
| 4 | 309191 | SPECIAL NUT M6 |
| 5 | 628VVC | BALL BEARING 628VVC2PS2-L |
| 6 | 327887 | BEARING HOLDER |
| 7 | 360891F | ARMATURE 230V |
| 8 | 327886 | FAN GUIDE |
| 9 | 982021 | HEX. HD. TAPPING SCREW D4X70 |
| 10 | 340791J | STATOR 230V-240V |
| 11 | 321722 | DUST SEAL |
| 12 | 626VVM | BALL BEARING 626VVC2PS2L |
| 13 | 309929 | RUBBER BUSHING |
| 14 | 301943 | LOCK PIN |
| 15 | 987201 | SEAL LOCK SCREW (W/SP. WASHER) M4X10 |
| 16 | 316490 | BEARING COVER |
| 17 | 6201VV | BALL BEARING 6201VVCMPS2L |
| 18 | 301946 | FELT PACKING |
| 19 | 316489 | PACKING GLAND |
| 20 | 987203 | SEAL LOCK SCREW (W/SP. WASHER) M4X12 |
| 21 | 302047 | WOODRUFF KEY |
| 22 | 332536 | SPINDLE |
| 22 | 332537 | SPINDLE |
| 23 | 308386 | MACHINE SCREW (W/SP. WASHER) M5X16(BLACK |
| 24 | 301949 | SET PLATE |
| 25 | 332539 | WHEEL GUARD ASS'Y |
| 26 | 937817Z | WHEEL WASHER |
| 26B | 334456 | WHEEL WASHER (C) |
| 27 | 316822 | D. C. WHEELS 125MM A36Q |
| 28 | 994324 | WHEEL NUT M14 |
| 28 | 937923P | WHEEL NUT 5/8"-11UNC |
| 28A | 337329 | WHEEL NUT M14 |
| 29 | 327888 | GEAR SET |
| 30 | 333366 | SLIDE BAR |
| 31 | 314429 | SPRING |
| 32 | 314428 | SLIDE KNOB |
| 33 | 333365 | HOUSING ASS'Y |
| 34 | 999005 | CARBON BRUSH (1 PAIR) |
| 35A | 333844 | BRUSH HOLDER |
| 36 | 328210 | TAPPING SCREW D3X8 |
| 37 | 938307 | PILLAR TERMINAL |
| 38 | 958308Z | PILLAR TERMINAL (A) |
| 39 | 959140 | CONNECTOR 50091 |
| 39 | 959140 | CONNECTOR 50091 |
| 40 | 975144 | CABLE TIE |
| 41 | 980063 | TERMINAL |
| 41 | 980063 | TERMINAL |
| 41 | 930804 | TERMINAL M4.0 |
| 42 | 317491 | NOISE SUPPRESSOR |
| 43 | 314603 | SWITCH (1P SOLDER TYPE) |
| 44 | 305499 | MACHINE SCREW (W/WASHER) M3.5X6 |
| 45 | 332545 | INTERNAL WIRE |
| 46 | 988054 | CABLE TIE |
| 47 | 937631 | CORD CLIP |
| 48 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 50 | 980063 | TERMINAL |
| 51 | 953327 | CORD ARMOR D8.8 |
| 51 | 938051 | CORD ARMOR D10.1 |
| 53 | 307811 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 56 | 327894 | TAIL COVER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
