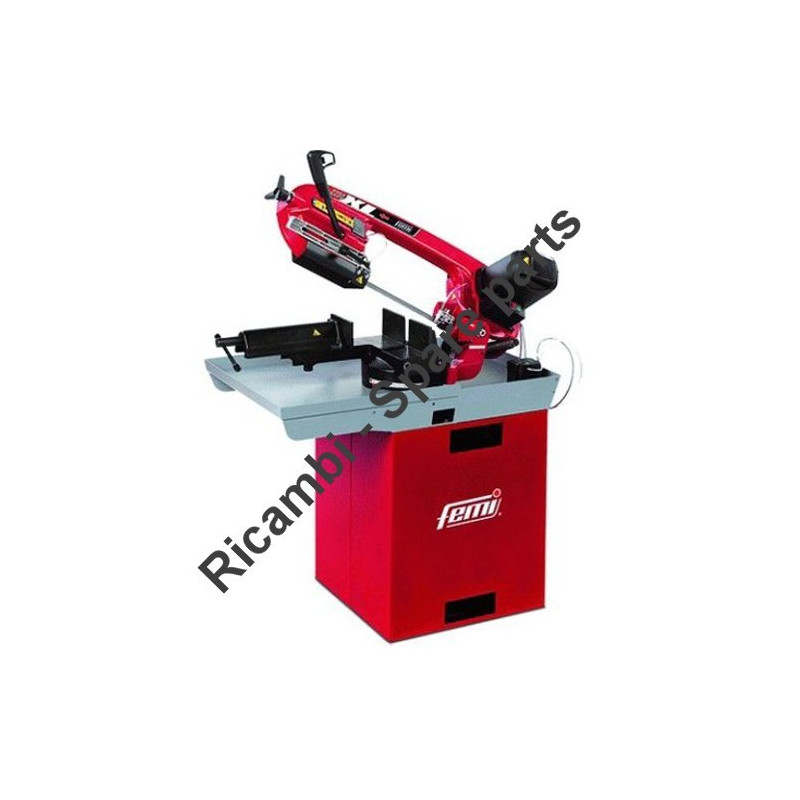

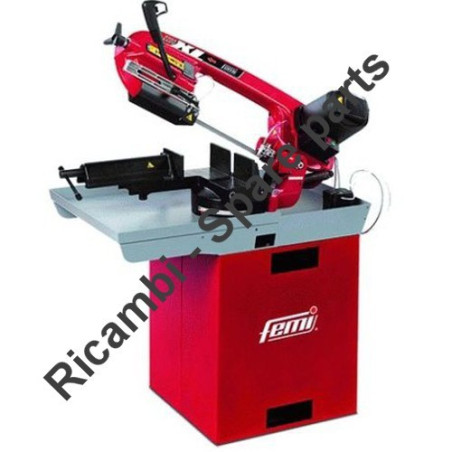

Femi Spare Parts for Stationary Band Saws 2200 XL-8487022

€136.60
Tax included

Femi Spare Parts for Stationary Band Saws 2200 XL-8487022

Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Stationary Band Saws 2200 XL - 8487022.

- Single-phase with electronic speed controller
- Max cutting capacity at 0° Ø 175 mm. - 200x75 mm.
- Bandsaw blade mm. 2140x19x0,9
- Single-phase universal motor 2000 Watt
ITEM CODE: 5130796
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Femi Spare Parts for Stationary Band Saws 2200 XL-8487022

Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Stationary Band Saws 2200 XL - 8487022.

In the following table, look for the model of the Band Saw and the respective parts of the code.
Femi 2200 XL - 8487022

Stationary Band Saws - 2200 XL 2200
# Part Num. Description
1 5130796 STOP PLATE
3 0147007 HAND LEVER
6 0147017 HAND LEVER
7 5182532 COVER
8 5152594 VICE JAW
9 5152595 VICE JAW
11 5130864 VICE SCREW SUPPORT
14 0152630 ELASTIC PIN
16 5152611 VICE JAW
17 5130863 MOBILE VICE
18 5159517 INDEX
20 0140059 LEVER COVER
22 5171040 PIN
23 5142023 LEVER
25 0140073 HANDGRIP
27 5171035 BUSHING
30 5124033 WASHER
31 0120708 PLAIN WASHER
34 5133703 TANK BASE
35 7113524 ELECTRIC PUMP
36 5871072 CABLE
38 5182533 PUMP SUPPORT
39 5182534 TANK FILTER
40 5124056 WASHER
42 7075064 WISE DEGREES LABELS 17X2 - 18X2 - 19 X1.6
43 0402905 RIVET
44 0124032 PLAIN WASHER
46 5171038 VICE PIN
47 0101716 SELF-LOCKING NUT
49 0606203 BALL BEARING
51 0606306 BALL BEARING
52 5171039 JOINT PIN
53 5063036 BUSHING
54 0802316 SWITCH
55 5182504 SWITCH COVER
57 5124060 WASHER
58 0606204 BALL BEARING
60 5214224 FREE WHEEL
61 5130746 GUIDE
62 5001562 SHAFT
63 5081007 SPRING
64 5142058 LEVER
65 5100505 BLADE TENSIONING SCREW
66 5120661 SPACER
68 5122017 SPRING CONTEINER
69 5124030 WASHER
70 0064002 BEARING FIFTH WHEEL
71 0711528 CAGE BEARING
72 0140099 BLADE TENSIONING KNOB
73 0080260 SPRING WASHER
75 5061038 RUBBER BUSHING
76 5066016 BUSHING
77 0801101 MICROSWITCH
78 5182842 SWITCH BOX
80 5143005 MICROSWITCH BUTTON
81 5142059 LEVER
82 5182523 LIGHT PILOT COVER
84 0106120 SELF-LOCKING RING NUT
86 5214026 DRIVING WHEEL
87 0155149 THICKNESS WASHER
88 5130795 WHEEL SUPPORT
92 0894007 LIGHT PILOT
93 7213006 GEAR ASSY
94 0150139 WOODRUFF
95 0586200 BALL BEARING
96 5024112 STATOR FIELD
97 5871071 CABLE
98 0606007 BALL BEARING
99 5124054 SPACER
100 5042834 BAND SAW BODY
101 7213005 GEAR ASSY
102 0731212 NEEDLE BEARING
103 0124026 THICKNESS WASHER
104 7213004 GEAR ASSY
501 5850110 CARBON BRUSHE SET
105 5850006 BRUSHES SUPPORT
106 5154501 CABLE LOCKING DEVICE
108 0181021 CABLE SLEEVE
109 0816004 NOISE SUPPRESSOR
110 5182823 SWITCH BOX
111 0181018 CABLE SLEEVE
112 5182843 MOTOR COVER
113 5850111 FAN WITH MAGNETIC RING
115 5182525 COVER
117 7801611 MOTOR ASSEMBLY 93 ( Rif. 7801606 )
119 0816005 RADIO INTERFERENCE SUPPRESSOR
120 5061041 RUBBER BUSHING
121 7013134 ARMATURE (Rif. 7013133)
122 0241443 PIPE FITTING
123 5142069 LEVER
125 5081009 SPRING
129 5171018 SPRING PIN
132 5181856 BLADE PROTECTION
133 0123315 RUBBER WASHER
134 1855803 COOLING LIQUID PIPE
135 5181688 CABLE PROTECTION
138 5152596 PROTECTION FIXING DEVICE
139 7130567 INTERNAL BEARING GROUP
141 5871056 CABLE
142 5050117 HANDLE
143 0802317 SWITCH
144 5050122 HANDLE COVER
145 0241367 PIPE FITTING
146 5871060 CABLE
148 5154103 CABLE LOCKING DEVICE
151 0241366 PIPE FITTING
152 1855805 COOLING LIQUID PIPE
156 5130747 SUPPORT
158 5181628 PROTECTION
159 5181683 SLIDING PROTECTION
160 0147002 HAND LEVER
161 0124029 FLAT WASHER
162 0063025 BUSHING
163 5100069 SCREW
164 5130942 MOBILE BLADE GUIDE
165 0124027 THICKNESS WASHER
167 0600626 BALL BEARING
168 5130943 BLADE GUIDE SUPPORT
169 5100070 SCREW
170 0600607 BALL BEARING
176 0241442 PIPE FITTING
179 5120638 SPACER
180 5133752 RIGHT SUPPORT
181 5133753 LEFT SUPPORT
182 7820107 ELECTRONIC SPEED REGULATOR
