Dolmar Spare Parts for Back Pack Blower PB500R
We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB500R - BACKPACK BLOWER 49CC.In the following table, look for the model of the Cordless Blower and the respective parts of the code.

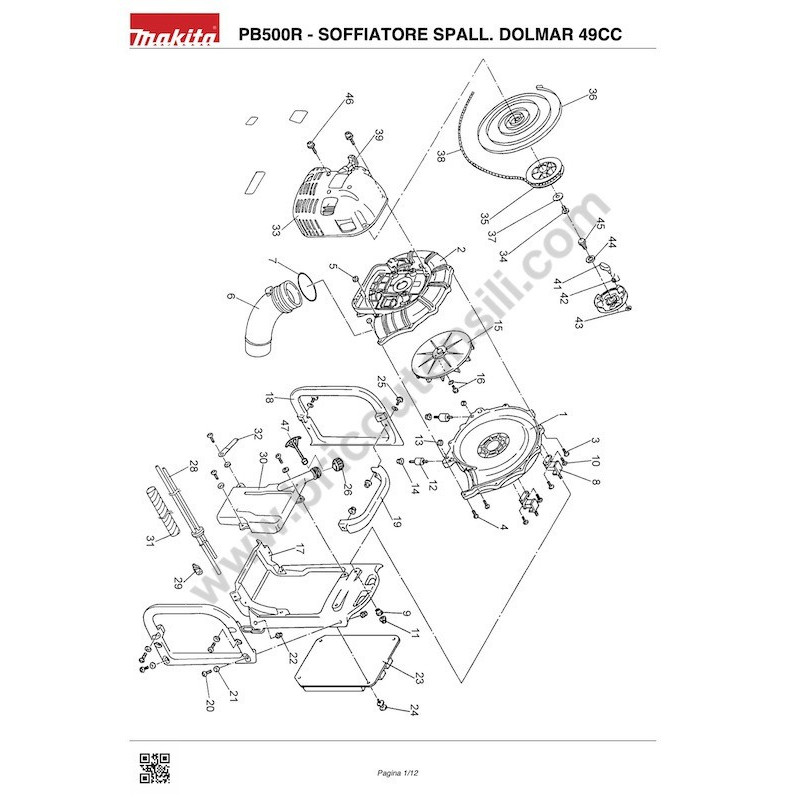

| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.1 | ||
| # | Part Num. | Description |
| 1 | 6621500201 | VOLUTE CASE 1, RBL500 PB500R |
| 2 | 6621004003 | VOLUTE CASE 2 CPL., RBL500 PB500R |
| 3 | 0150059870 | SELF TAPPING SCREW PB500R |
| 4 | 0043605250 | SCREW M525 RBK 410 |
| 5 | 0021705000 | NUT M5 RBC415 |
| 6 | 6621006001 | ELBOW COMPLETE, RBL500 PB500R |
| 7 | 0062630850 | O-RING PB500R |
| 8 | 6621005000 | BRACKET COMPLETE, RBL500 PB500R |
| 9 | 6621500300 | SPACER C PB500R |
| 10 | 0150059910 | SELF TAPPING SCREW PB500R |
| 11 | 0023705000 | NUT M5 PB500R |
| 12 | 6621500401 | DAMPER, RBL500 PB500R |
| 13 | 0021706000 | NUT G.2400R-3500R |
| 14 | 0023706000 | FLANGE NUT |
| 15 | 6821500201 | IMPELLER, RBL500 PB500R |
| 16 | 0011306250 | BOLT CPL PB500R |
| 17 | 6622008001 | FRAME CPL PB500R |
| 18 | 6622500600 | SIDE FRAME PB500R |
| 19 | 6622500701 | KNOB PB500R |
| 20 | 0043105200 | PAN HEAD HEAD SCREW PB500R |
| 21 | 0031205000 | WASHER RBC415 / RBL250 |
| 22 | 0023705000 | FLANGE NUT M5 PB500R |
| 23 | 6622010001 | CUSHION PB500R |
| 24 | 6822500200 | LOCK RIVET, RBL500 PB500R |
| 25 | 0043605250 | PAN HD SCREW M5X25 RBL500 RBK 410 |
| 26 | 452920-8 | FUEL TANK CAP |
| 28 | 6623003001 | PB500R TUBE |
| 29 | 163447-0 | FUEL FILTER DCS230T |
| 30 | 6623005000 | FUEL TANK ASS'Y, RBL500 PB500R |
| 31 | 8558502200 | SPIRAL TUBE PB500R |
| 32 | 8558501100 | CLAMP PB500R |
| 33 | 6628010000 | ENGINE COVER CPL., PB500R T2 PB500R |
| 34 | 5105015110 | SCREW RBC260 / 230/520 |
| 35 | 5415003010 | REEL RBC260 |
| 36 | 5415003020 | SPIRAL SPRING, RBC260 RBC260 |
| 37 | 5415003030 | WASHER RBC 260 |
| 38 | 5415001140 | STARTER ROPE, RBC260/410 / RBK 410 |
| 39 | 5305002110 | STARTER KNOB, BBX7600 RBC260 / RBK41 |
| 41 | 5415011010 | RATCHET, RBL500 PB500R |
| 42 | 5415011020 | RETURN SPRING PB500R |
| 43 | 5215003040 | RETAINER RING PB500R |
| 44 | 0200069920 | WASHER M6 RBC310 / 410 / RBK410 |
| 45 | 0011306160 | BOLT ASSY RBC230/EM4251/4340L / 260/225/255 |
| 46 | 0043606200 | SCREW M620 PB500R |
| 47 | 140436-2 | STRAP COMPLETE EBH341U |
| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.2 | ||
| 47 | 5411012000 | CRANK CASE ASS'Y, RBL500 PB500R |
| 48 | 0440179930 | OIL SEAL PB500R |
| 49 | 213546-9 | OIL SEAL PB500R-RBC525 |
| 50 | 0600179830 | BALL BEARING 6203C3 PB500R-RBC |
| 51 | 0600159880 | BALL BEARING 6202C3 PB500R |
| 52 | 5411501200 | GASKET (CRANKCASE), EW110R RBC410 / RBK 410 |
| 53 | 319241-0 | CYLINDER |
| 54 | 442156-7 | CYLINDER GASKET RBC420E |
| 55 | 0119069990 | HEX SOCKET HEADBOLT M6X18 RBC 410 / RBK 410 |
| 56 | 0119059940 | HEX SOCKET HEAD BOLT M5X30 RBC410 / RBK 410 |
| 57 | 5412024000 | CRANKSHAFT CPL PB500R |
| 58 | 319442-0 | PISTON |
| 59 | 5602501100 | PISTON PIN RBC520 |
| 60 | 5602500900 | PISTON RING RBC520 |
| 61 | 0610129950 | NEEDLE ROLLER BEARING PB500R |
| 62 | 233995-4 | CLIP RBL500/BBX7600 |
| 63 | 0053203101 | WOODRUFF KEY, RBL500 / RBK 410 |
| 64 | 168890-8 | EXHAUST MUFFLER |
| 65 | 5413046002 | INSULATOR CPL PB500R |
| 66 | 5413501700 | MUFFLER GASKET PB500R |
| 67 | 5413502001 | MUFFLER BOLT M613 PB500R |
| 68 | 0200099990 | WASHER M6 PB500R |
| 69 | 0011506160 | BOLT ASSEMBLY M616 PB500R |
| 70 | 5413036000 | LEAD VALVE ASSEMBLY, RBL500 PB500R |
| 71 | 442160-6 | GASKET LEAD VALVE, EW110R |
| 72 | 5403500600 | INSULATOR GASKET RBC350- |
| 73 | 0119059630 | S.H. BOLT M5X20, RBL500 PB500R |
| 74 | 5417021010 | FLYWHEEL PB500R |
| 75 | 5417024021 | COIL PB500R |
| 76 | 0655009940 | SPARK PLUG CAP RBC410 / RBK410RBC520 |
| 77 | 324891-8 | PLUG CAP SPRING EH7500/EPH1 EBH341 |
| 78 | 168648-5 | SPARK PLUG NGK BPMR7A |
| 79 | 0011308160 | BOLT & WASHER ASS'Y, G5501R G.5500R |
| 80 | 0031108000 | WASHER G.5500R |
| 81 | 0119059790 | HEX SOCKET HEAD BOLT M5X22 RB / RBK 410 M522 |
| 82 | 0011306250 | BOLT ASSEMBLY, RBL500 PB500R |
| 83 | 6628003000 | WIRE COMPLETE, RBL500 PB500R |
| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.3 | ||
| 84 | 5416043003 | CARBURETOR RBL500 |
| 85 | 5416043430 | STRAINER, RBL500 PB500R |
| 86 | 5416043460 | RETAINER, RBL500 PB500R |
| 87 | 5416043020 | THROTTLE SHAFT ASSEMBLY, RBL500 |
| 88 | 5416043520 | THROTTLE LEVER, RBL500 PB500R |
| 89 | 5416043030 | THROTTLE RETURN SPRING, RBL500 PB500R |
| 90 | 5416043040 | THROTTLE VALVE, RBL500 PB500R |
| 91 | 5416043260 | DIAPHRAGM ASSEMBLY, RBL500 PB500R |
| 92 | 5416043110 | PUMP DIAPHRAGM, RBL500 PB500R |
| 93 | 5416043310 | METERING CHAMBER GASKET, RBL500 PB500R |
| 94 | 5416043120 | PUMP GASKET, RBL500 PB500R |
| 95 | 5416043210 | INLET NEEDLE VALVE, RBL500 PB500R |
| 96 | 5416043220 | METERING LEVER SPRING, RBL500 PB500R |
| 97 | 5416043230 | METERING LEVER, RBL500 PB500R |
| 98 | 5416043240 | PIN PB500R |
| 99 | 5416043350 | MAIN MIXTURE SCREW, RBL500 PB500R |
| 100 | 5416043360 | IDLE MIXTURE SCREW, RBL500 PB500R |
| 101 | 5416043551 | CHOKE SHAFT ASSY, RBL500 PB500R |
| 102 | 5416043620 | CHOKE VALVE, RBL500 PB500R |
| 103 | 5416043540 | POST, RBL500 PB500R |
| 104 | 5416043920 | PRIMER BASE ASSEMBLY, RBL500 PB500R |
| 105 | 5416043510 | SYRINGE, RBL500 PB500R |
| 106 | 5416043250 | SCREW PB500R |
| 107 | 5416043050 | SCREW PB500R |
| 108 | 5416043340 | SCREW PB500R |
| 109 | 5416043160 | SCREW PB500R |
| 110 | 5416043530 | SCREW PB500R |
| 111 | 5416043060 | RETAINER RING PB500R |
| 112 | 5416043330 | RETAINER SCREW, RBL500 PB500R |
| 113 | 5416043850 | E-RING, RBL500 PB500R |
| 114 | 5416043760 | TAMPER RESIST (R) LIMITER, RBL500 PB500R |
| 115 | 5416043810 | TAMPER RESIST(W) LIMITER, RBL500 PB500R |
| 116 | 5416043640 | CHOKE RETURN SPRING, RBL500 PB500R |
| 117 | 5416043560 | CHOKE CONTROL LEVER, RBL500 PB500R |
| 118 | 5416043660 | CHOKE LEVER, RBL500 PB500R |
| 119 | 5416043610 | CHOKE SHAFT COLLER, PB500R PB500R |
| 120 | 5416043710 | CHOKE LEVER SCREW, RBL500 PB500R |
| 121 | 5416043820 | PUMP COVER KIT, RBL500 PB500R |
| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.4 | ||
| 122 | 5413048001 | PLATE CLEANER ASSEMBLY, RBL500 PB500R |
| 123 | 5413507001 | AIR CLEANER CASE, RBL500 PB500R |
| 124 | 5413507101 | AIR CLEANER ELEMENT, RBL500 PB500R |
| 125 | 5413507200 | AIR CLEANER GASKET, RBL500 PB500R |
| 126 | 0043605140 | SCREW ASS'Y M5X14 RBC225-255 |
| 127 | 5416504302 | CARBURETOR GASKET, RBL500 PB500R |
| 128 | 0043605550 | SCREW RBL250 |
| 129 | 5416504600 | CABLE BRACKET, RBL500 PB500R |
| 130 | 5216008010 | CABLE ADJUST SCREW, RBL500 RBC260 310 |
| 131 | 0022706000 | NUT M6 PB500R |
| 132 | 5413507900 | CARBURETOR GASKET, RBL500 PB500R |
| 133 | 5413507800 | PLATE, RBL500 PB500R |
| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.5 | ||
| 134 | 6625001003 | CONTROL LEVER ASSY, RBL500 PB500R |
| 135 | 6625500500 | CASE COVER, RBL500 PB500R |
| 136 | 6625003001 | SWITCH COMPL, RBL500 PB500R |
| 137 | 453716-0 | THROTTLE LEVER 1, BBX7600 PB500R |
| 138 | 6625500701 | THROTTLE LEVER 2, RBL500 PB500R |
| 139 | 6625004000 | PLATE COMPLETE, RBL500 PB500R |
| 140 | 6625500901 | TORSION SPRING PB500R |
| 141 | 0630139901 | CONTROL CABLE, RBL500 PB500R |
| 142 | 6625501001 | CABLE TUBE, RBL500 PB500R |
| 143 | 6625501700 | SOCKET HEAD BOLT 6X30, RBL500 PB500R |
| 144 | 0150049970 | TAPPING SCREW, RBL500 RBC415 |
| 145 | 0031106000 | WASHER RBC221/RST250/BBX7600 |
| 146 | 0032206000 | WAVE WASHER RBL500/BBX7600 PB500R |
| 147 | 0022706000 | NUT M6 PB500R |
| 148 | 0150049940 | TAPPING SCREW, RBL500 M4X16 PB500R |
| 149 | 0043605250 | PAN HEAD SCREW M5X25 RBK 410 |
| 150 | 0043105200 | PAN HD SCREW M5X20 RBL500 PB500R |
| DOLMAR PB500R - BACKPACK BLOWER 49CC. pag.6 | ||
| 1 | 6709026001 | BAND SET |
| 2 | 6629019000 | HOSE CLAMP RBL500 |
| 3 | 6629020000 | HOSE CLAMP RBL500 |
| 4 | 6989506900 | FLEXIBLE PIPE RBL500 |
| 5 | 6709017010 | PIPE 1 RBL500 |
| 6 | 6709017020 | PIPE 2 RBL500 |
| 7 | 6629506700 | END PIPE RBL500 |
| 8 | 5019001000 | TOOL KIT RBL500 HT2276E |
