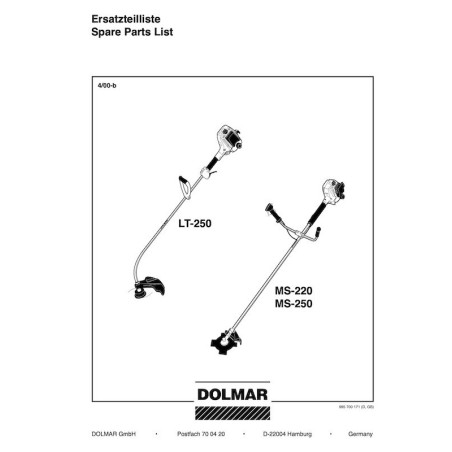

Dolmar Spare Parts for Grass Trimmer MS-220

Name: Dolmar Spare Parts for Grass Trimmer MS-220
Brand: Makita
SKU: Dolmar MS-220
Price: 51.73 EUR
Availability: InStock

€51.73

Tax included

Dolmar Spare Parts for Grass Trimmer MS-220

We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for MS-220 - GRASS TRIMMER 24,5CC DOLMAR.

ITEM CODE: 388250190

388250190
388250260
388508997
388150230
388150180
367004992
377400993
382650390
381650030
381650020
381105999
119114030
381360518
965404031
381500211
985000150
985000155
381500203
388500301
367201400
929110100
382151200
381905995
381601804
388600803
381600512
381600101
381600104
381600401
367360514
367150630
367905990
381224310
381224330
362224140
370341450
370341410
940804000
387260100
385260040
362224160
362224230
369224071
369224070
369224072

Quantity

on 7/10 Business Days Approx

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

Dolmar Spare Parts for Grass Trimmer MS-220

GRASS TRIMMER DOLMAR MS-220
1	388101100	Crankcase cpl.
2	388150220	Gasket, crankcase
3	381650025	Damper
4	388012997	Radial ring
5	388201500	Crankshaft cpl. X LT-250
5	367201100	Crankshaft cpl. X MS-220 - MS-250
6	388250240	Stud
8	388250190	Piston X LT-250 - MS-250
8	367250070	Piston X MS-220
9	388250260	Piston pin X LT-250 - MS-250
9	367250080	Piston pin X MS-220
10	388508997	Clip
11	382250070	Piston ring X LT-250 - MS-250
11	367250000	Piston ring X MS-220
12	388150230	Gasket, cylinder
13	388150180	Cylinder X LT-250 - MS-250
13	367150120	Cylinder X MS-220
14	382905973	Socket head bolt
15	388350390	Gasket, insulator
16	388350400	Insulator, Carburetor X LT-250
16	367350520	Insulator, Carburetor X MS-220 - MS-250
17	388303800	Insulator cpl.
18	388350410	Gasket, insulator
19	388005952	Screw
20	388550120	Wire
21	388350430	Gasket, muffler
22	388350440	Insulator, muffler X LT-250
22	367350530	Insulator, muffler X MS-220 - MS250
23	388303700	Muffler, exhaust X LT-250
23	367304100	Muffler, exhaust X MS-220 - MS250
24	991105451	Socket head bolt
26	388703102	Coil
27	388330420	Screw assy. X LT-250
27	367004992	Screw assy. X MS-220 - MS250
28	388750320	Grommet
29	377400993	Spring, plug cap
30	388750330	Cap, plug
31	381014981	Plug, spark
35	388650410	Tank, fuel
36	377601400	Tank cap, fuel
37	377502100	Strap unit
38	388604800	Tube
39	382650390	Filter
40	381650030	Plate
41	381650020	Plate
42	381105999	Hose clamp
42	119114030	Hose clamp
GRASS TRIMMER DOLMAR MS-220 pag.2
1	388503400	Cover, starter X LT-250
1	367503600	Cover, starter cpl. X MS-2220 - MS-250
2	388550460	Tapping screw
3	381360518	Screw assy.
4	388650430	Pump
5	965404031	Starter knob X LT-250
5	381500211	Starter knob X MS-2220 - MS-250
6	381500206	Starter rope ø3 x 900 mm X LT-250
6	985000150	Starter rope ø3 x 100 mm X LT-250
6	985000155	Starter rope ø3,5x100m (900mm) MS-220 - MS250
7	381500203	Spiral spring X LT-250
7	367502403	Spiral spring X MS-220 - MS250
8	381500202	Reel X LT-250
8	367502401	Reel X MS-220 - MS250
9	388500301	Set screw
10	388500300	Pulley X LT-250
10	367502500	Pulley X MS-220 - MS250
11	367550470	Bolt assy.
15	388503500	Cover, engine cpl. X LT-250
15	367503800	Cover, engine cpl. X MS-220 - MS250
16	388703101	Flywheel
17	388200500	Clutch assy.
18	388200400	Drum, clutch cpl. X LT-250
18	367201400	Drum, clutch cpl. X MS-220 - MS250
19	929110100	Snapring outer X LT-250
19	382151200	Snapring outer X MS-220 - MS250
20	388005951	Screw
21	388360530	Screw assy. X LT-250
22	381270500	Nut X LT-250
23	388005995	Tapping screw X LT-250
25a	367150680	Bracket, pipe 1 x=15 mm X MS-220 - MS250
25b	367150950	Bracket, pipe 1 x=18 mm X MS-220 - MS250
26a	367150690	Bracket, pipe 2 x=15 mm X MS-220 - MS250
26b	367150960	Bracket, pipe 2 x=18 mm X MS-220 - MS250
27	367150660	Damper, pipe 1 X MS-220 - MS250
28	367150670	Damper, pipe 2 X MS-220 - MS250
29	381905995	Socket head bolt M5x18 X MS-220 - MS250
GRASS TRIMMER DOLMAR MS-220 pag.3
1	388604700	Carburetor
2	381601804	Swivel
3	381600811	Plug
4	388600803	Screw
5	388604702	Valve assy., throttle
6	381600512	Ring, retaining
7	381600101	O-ring
8	388602901	Jet
9	381600103	Gasket-pump
10	381600104	Diaphragm-pump
11	381600401	Screen-inlet
12	388600413	Gasket
13	381600525	Diaphragm assy.
14	388600503	Cover primer pump
15	388600202	Screw
16	388650460	Tube X LT-250
16	367114996	Tube X MS-220 - MS-250
17	388950000	Holder
20	388350460	Case, air cleaner X LT-250
20	367350550	Case, air cleaner X MS-220 - MS-250
21	367360514	Screw assy. X MS-220 - MS-250
22	388350470	Air cleaner
23	388350450	Plate, cleaner cpl. X LT-250
23	367350570	Plate, cleaner cpl. X MS-220 - MS-250
24	367360565	Screw assy.
25	388350500	Plate, choke
26	388110400	Washer
27	388004998	Screw
28	388350420	Gasket, Carburetor
29	388350480	Lever choke
GRASS TRIMMER DOLMAR MS-220 pag.4
1	388100600	Pipe, flexible unit X LT-250
2	388100503	Shaft, flexible X LT-250
3	388100504	Spacer X LT-250
4	388501200	Control lever assy. X LT-250
5	388550060	Lever X LT-250
6	388550070	Connector X LT-250
7	388500900	Switch cpl. X LT-250
8	388004992	Tapping screw X LT-250
9	388004991	Tapping screw X LT-250
10	388003990	Control cable X LT-250
12	388400300	Handle cpl. X LT-250
13	388950020	Spacer X LT-250
14	388700645	Bolt, cross recess X LT-250
15	388110600	Washer X LT-250
16	388370600	Flange nut X LT-250
18	388300200	Case, gear cpl. X LT-250
19	388850080	Receive washer X LT-250
20	388800600	Protector assy. X LT-250
GRASS TRIMMER DOLMAR MS-220 pag.5
1	367102800	Pipe, shaft cpl. X MS-220 - MS-250
2	367150630	Shaft X MS-220 - MS-250
4	367401900	Hanger assy. X MS-220 - MS-250
5	367450280	Handle X MS-220 - MS-250
6	367450220	Holder, handle 1 X MS-220 - MS-250
7	367450230	Holder, handle 2 X MS-220 - MS-250
8	381905995	Socket head bolt M5X18 X MS-220 - MS-250
9	367450260	Damper, handle 1 X MS-220 - MS-250
10	367450270	Damper, handle 2 X MS-220 - MS-250
11a	367450240	Bracket, Handle 1 x=14 mm X MS-220 - MS-250
12a	367450250	Bracket, Handle 2 x=14 mm X MS-220 - MS-250
11b	367450242	Bracket, Handle 1 x=18 mm X MS-220 - MS-250
12b	367450252	Bracket, Handle 2 x=18 mm X MS-220 - MS-250
13	381450000	Grip X MS-220 - MS-250
14	367504800	Control lever assy.(incl. control cable) X MS-220 - MS-250
15	367505200	Control cable X MS-220 - MS-250
16	367550370	Case, connector X MS-220 - MS-250
20	381802800	Protector f. metal blade X MS-220 - MS-250
21	381800800	Protector f. trimm. Head X MS-220 - MS-250
22	381170630	Bolt assy. X MS-220 - MS-250
23	381905995	Tapping screw X MS-220 - MS-250
25	367301400	Case, gear assy. X MS-220 - MS-250
26	367905989	Socket head bolt X MS-220 - MS-250
27	367905990	Socket head bolt X MS-220 - MS-250
28	367301101	Bolt, oil X MS-220 - MS-250
29	367850440	Washer receive X MS-220 - MS-250
30	367850450	Washer clamp X MS-220 - MS-250
31	367850500	Nut X MS-220 - MS-250
32	367350370	Ball bearing X MS-220 - MS-250
33	381250030	Ball bearing X MS-220 - MS-250
34	367150900	Snap ring, outer X MS-220 - MS-250
35	381142400	Snap ring, inner X MS-220 - MS-250
36	367301300	Gear set X MS-220 - MS-250
40	381750010	Cushion X MS-220 - MS-250
GRASS TRIMMER DOLMAR MS-220 pag.6
1	381224260	Dual line trimming head X LT-250
2	381224340	Adaptor X LT-250
3	381224261	Dual line trimming head X MS-250
4	381224350	Adaptor, left thread X MS-250
5	381224310	Spool for line X LT-250 - MS-250
6	381224320	Button X LT-250 - MS-250
7	381224330	Thread bush X LT-250 - MS-250
7	362224140	Star blade X MS-220 - MS-250
8	370341450	Protection case X MS-220 - MS-250
8a	370341410	Clamping rubber X MS-220 - MS-250
9	388901900	Tool kit X LT-250
9	377900100	Tool kit X LT-250
10	381900600	Tool kit X MS-220 - MS-250
11	940804000	Allen key X MS-220 - MS-250
12	387260100	Double shoulder harness X MS-220 - MS-250
13	385260040	Snaphook X MS-220 - MS-250
17	362224180	8-tooth eddy blade X MS-220 - MS-250
20	362224160	Nylon line X LT-250 - MS-220 - MS-250
20	362224230	Nylon line X LT-250 - MS-220 - MS-250
20	369224071	Silent nylon line X LT-250 - MS-220 - MS-250
20	369224070	Silent nylon line X LT-250 - MS-220 - MS-250
20	369224072	Silent nylon line X LT-250 - MS-220 - MS-250
