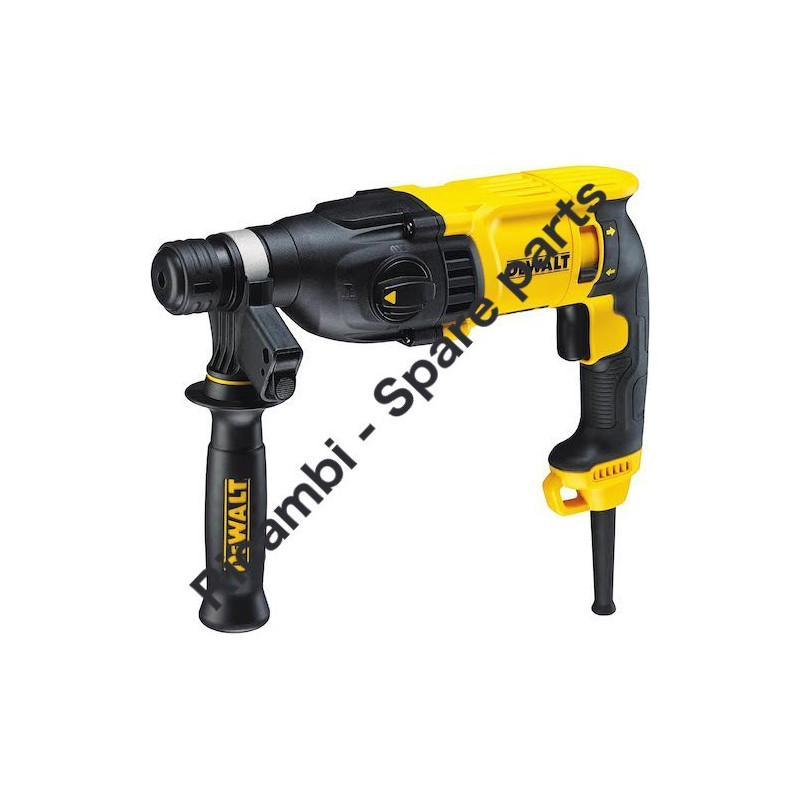

DEWALT D25133K-QS Rotary Hammer Type 1 Parts
€1.93
Tax included
DEWALT D25133K-QS Rotary Hammer Type 1 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25133K-QS Rotary Hammer Type 1.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
DEWALT D25133K-QS Rotary Hammer Type 1 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25133K-QS Rotary Hammer Type 1.
In the following table, look for the model of the hammer and the respective parts of the code.
| DeWalt D25133K-QS Rotary Hammer Type 1 Spare Parts | ||
| # | Part Num. | Description |
| 1 | N325879 | SCREW |
| 2 | 323489-00 | CAP |
| 3 | 579212-00 | RING SNAP 21 |
| 4 | NA098071 | TUBE From WK15 2021 to WK19 2022 |
| 4 | NA073152 | TUBE From WK15 2021 to WK19 2022 |
| 5 | 583890-00 | BALL 7.0 |
| 6 | 578387-00 | SDS BALL PLATE (WASHER SDS 1.4MM) |
| 7 | 871690 | SPRING BEVEL |
| 8 | N417731 | HOUSING SA |
| 9 | 330065-16 | SCREW |
| 10 | 327141-06 | SEAL |
| 11 | N020023 | NEEDLE BEARING |
| 13 | 1005788-00 | WASHER |
| 17 | N899980 | WASHER,NEEDLE BEARING >=WK15 2021 |
| 17 | NA419837 | SHAFT SA <WK15 2021 |
| 18 | N264677 | SPRING |
| 19 | NA014716 | O-RING >=WK15 2021 |
| 19 | NA419837 | SHAFT SA <WK15 2021 |
| 20 | NA012069 | GEAR >=WK15 2021 |
| 20 | NA419837 | SHAFT SA <WK15 2021 |
| 21 | N406151 | LOCKING RING |
| 21 | N869110 | LOCK RING >=WK15 2021 |
| 21 | NA419837 | SHAFT SA <WK15 2021 |
| 22 | N394276 | O-RING |
| 23 | N470388 | TUBE GUIDE FROM wk32-2017 |
| 23 | N470388 | TUBE GUIDE TO wk32-2017 |
| 24 | N417744 | BEAT PIECE |
| 25 | 1005808-00 | RING TO wk32-2017 |
| 25 | 580990-00 | O-RING FROM wk32-2017 |
| 26 | N531681 | WASHER FROM wk32-2017 |
| 26 | 327087-00 | WASHER TO wk32-2017 |
| 27 | N294259 | RING SNAP 22.5 |
| 28 | N267565 | RING |
| 29 | N417745 | BEARING |
| 32 | N264642 | O RING 14X3 |
| 33 | N425231 | PISTON |
| 34 | 1005842-00 | WASHER U SHAPE |
| 35 | N325041 | CROSS BOLT |
| 36 | N495931 | HOUSING BEARING |
| 37 | N264673 | O RING 22X2 |
| 38 | N418018 | INTERSHAFT SA |
| 44 | 1005844-00 | WASHER INTERSHAFT FRONT |
| 45 | N264672 | O RING 68X4 |
| 46 | N417853 | COLLAR |
| 47 | N417859 | GEARS |
| 48 | 1005812-00 | FELT |
| 49 | N445171 | SCREW |
| 50 | 324006-15 | SCREW ,TAPTITE M4X20 ANU LOCK |
| 51 | NA048777 | PLATE |
| 52 | 1005795-00 | SPRING |
| 55 | N091381-00 | O-RING |
| 61 | N481043 | HOUSING MOTOR FR DATE CD WK32 2016 |
| 61 | N271819 | HOUSING MOTOR TO DATE CD WK32 2016 |
| 64 | N418023 | FIELD 120V |
| 64 | N484765 | FIELD 230V FR DATE CD WK32 2016 |
| 64 | N489766 | SERVICE KIT 230V TO DATE CD WK32 2016 |
| 65 | N245239 | WASHER |
| 66 | 1005895-00 | BEARING |
| 67 | 330003-60 | BEARING |
| 68 | N344965 | BAFFLE |
| 69 | N476768 | RUBBER PAD FR DATE CD WK32 2016 |
| 70 | N442577 | RING |
| 71 | N442578 | BEARING COVER |
| 72 | 1005894-00 | CLIP |
| 73 | N418034 | BRUSH HOLDER SA 120V |
| 73 | N418033 | BRUSH HOLDER SA |
| 77 | N418040 | BRUSH PAIR 120V |
| 77 | N418039 | BRUSH PAIR 230V |
| 78 | N415820 | ASS. HANDLE SIDE |
| 79 | 798846-02 | DEPTH STOP |
| 84 | N475466 | SCREW FR DATE CD WK32 2016 |
| 84 | N086775 | SCREW TO DATE CD WK32 2016 |
| 85 | N418013 | HANDLE SIDE SA |
| 88 | N364921 | SWITCH 115V |
| 88 | N364920 | SWITCH 240V to wk46 2012 |
| 89 | 320842-19 | CAPACITOR |
| 90 | 329301-00 | CLAMP, CORD |
| 91 | 1005757-00 | CORDSET (EURO) |
| 92 | 403395-00 | CORD PROTECTOR |
| 93 | 330065-08 | SCREW M4x18 T20 |
| 94 | 1005879-00 | LEAD BLUE |
| 95 | NA032293 | LEAD SA |
| 97 | N476832 | SCREW |
| 100 | NA098108 | SPINDLE SA >=WK19 2022 |
| 100 | NA098071 | SPINDLE SA From WK15 2021 to WK19 2022 |
| 100 | NA419837 | SPINDLE SA <WK15 2021 |
| 101 | N417861 | SELECTOR SA |
| 102 | N418035 | RAM SA |
| 103 | N418030 | ARMATURE 115/120V |
| 103 | N566901 | ARMATURE 230V |
| 105 | NA049706 | RATING PLATE |
| 800 | 870889-02 | RENOLIT PARAGON EP 1/2 90GR |
| 801 | 487130-04 | GREASE,GLK FLUID, 10G SACHET - SERVICE |
| 836 | 596005-99 | SERVICE TOOLING KIT |
| 836 | 1003959-99 | S.T.CIRCLIP REMOVER |
| 836 | 1003960-99 | S.T.CIRCLIP REMOVER |
| 846 | N418448 | SERVICE KIT 230V |
| 846 | N418466 | SERVICE KIT 120V |
| 861 | N440493 | KITBOX |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
