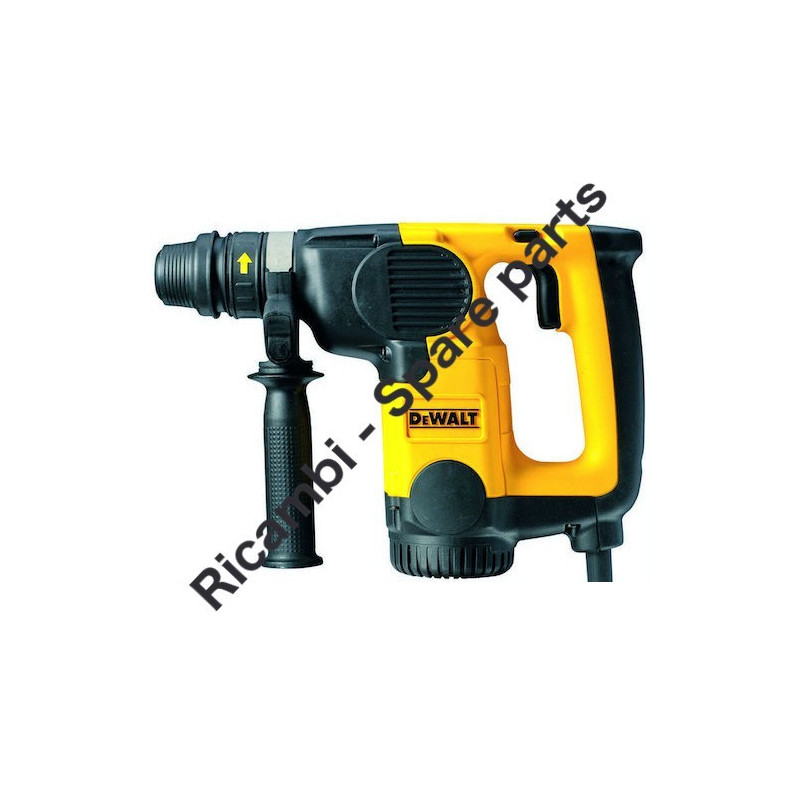

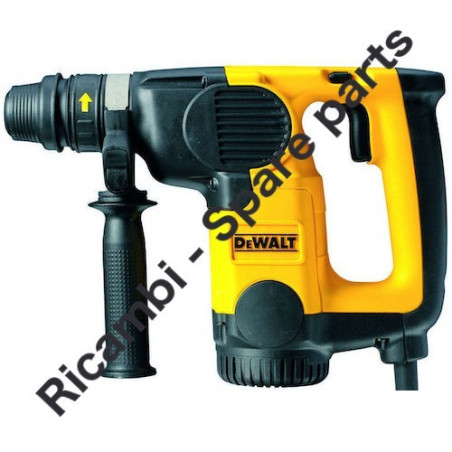

DEWALT D25330K-QS Chipping Hammer Type 1 Parts
€62.60
Tax included
DEWALT D25330K-QS Chipping Hammer Type 1 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25330K-QS Chipping Hammer Type 1.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
DEWALT D25330K-QS Chipping Hammer Type 1 Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25330K-QS Chipping Hammer Type 1.In the following table, look for the model of the hammer and the respective parts of the code.
| DeWalt D25330K-QS Chipping Hammer Type 1 | ||
| # | Part Num. | Description |
| 1 | 477225-01 | ARMATURE 115V |
| 1 | 477225-00 | ARMATURE 230V |
| 2 | 576690-06 | FIELD 115V |
| 2 | 576690-05 | FIELD 230V |
| 3 | 588724-01 | SWITCH 115V |
| 3 | 588724-00 | SWITCH 240V |
| 4 | 577805-04 | BRUSH HOLDER 115V |
| 4 | 577805-03 | BRUSH HOLDER 230V |
| 5 | 584429-01 | BRUSH KIT 115V |
| 5 | 584429-00 | BRUSH KIT 230V |
| 6 | 320842-19 | CAPACITOR |
| 7 | NA073534 | CORD PROTECTOR |
| 8 | 582319-17 | CORDSET (M/PLUG) QS |
| 12 | 584304-10 | LEAD BLUE |
| 16 | 582064-16 | LEAD BLUE |
| 17 | 589456-04 | LEADWIRE |
| 18 | 930026-01 | BUMPER |
| 19 | 588902-00 | SLIDER |
| 20 | 578220-00 | LEVER |
| 21 | 870052 | BEARING COVER |
| 22 | 579720-00 | BUSH |
| 23 | 326519-03 | SCREW |
| 24 | 330003-19 | BEARING |
| 25 | 330003-64 | BEARING, BALL |
| 28 | 582877-00 | INSERT |
| 30 | 577986-20 | HOUSING HANDLE |
| 31 | 581808-00 | BAFFLE FAN |
| 32 | 577993-00 | FIELD CASE |
| 33 | 584041-00 | END CAP SA |
| 34 | 588675-00 | HANDLE COVER |
| 35 | 330065-08 | SCREW M4X18 |
| 36 | 821070 | CLAMP, CORD |
| 37 | 330065-09 | SCREW PLSTC THD FORM M4X25 T20 |
| 39 | 330065-26 | SCREW |
| 40 | 330065-25 | SCREW PLSTC THD FORM M3X9 T10 |
| 50 | 1006350-00 | INTERSHAFT |
| 51 | 580908-00 | O RING |
| 60 | 582865-00 | FELT FILTER |
| 62 | 583981-00 | SCREW |
| 70 | 477212-00 | HOUSING BEARING |
| 71 | 330003-81 | BEARING |
| 72 | 578229-00 | SEAL |
| 73 | 577801-00 | BEARING BLOCK |
| 74 | 577802-00 | WASHER SHIM |
| 75 | 477213-00 | PISTON |
| 76 | 579699-00 | O RING |
| 77 | 477214-00 | RAM SA |
| 78 | N042808 | BEARING BUSH |
| 79 | 324006-15 | SCREW ,TAPTITE M4X20 ANU LOCK |
| 90 | 577793-00 | CLIP |
| 92 | 580990-00 | RING RAMCATCHER |
| 93 | 577135-00 | O RING |
| 94 | 477215-00 | BUSH |
| 95 | 584424-01 | BEAT PIECE |
| 96 | 477216-00 | BEARING & SEAL |
| 97 | 577139-00 | SEAL |
| 110 | 577797-00 | WASHER |
| 114 | 477217-00 | SPINDLE SA |
| 115 | 577814-00 | WASHER |
| 117 | 589186-00 | O RING |
| 118 | 477218-00 | GEARCASE SA |
| 121 | 330065-28 | SCREW |
| 132 | 871690 | SPRING BEVEL |
| 133 | 578387-00 | SDS BALL PLATE (WASHER SDS 1.4MM) |
| 134 | 583890-00 | BALL 7.0 |
| 135 | N504215 | TUBE |
| 136 | 323489-00 | CAP |
| 137 | 579212-00 | RING SNAP 21 |
| 140 | 586892-00 | SLEEVE |
| 145 | 586893-00 | SPRING |
| 147 | 586894-00 | LOCKING RING |
| 150 | 586891-00 | SLEEVE |
| 160 | 589467-00 | SIDE HANDLE |
| 800 | 870889-02 | RENOLIT PARAGON EP 1/2 90GR |
| 801 | 487130-04 | GREASE,GLK FLUID, 10G SACHET - SERVICE |
| 821 | 569037-00 | RATING PLATE, DeWALT, BLANK |
| 846 | 477246-00 | SERVICE KIT 115V |
| 846 | 477245-00 | SERVICE KIT 230V |
| 861 | 578005-00 | KITBOX |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
