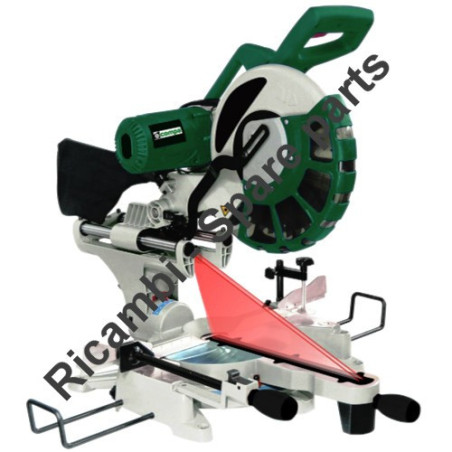

| SLIDER COMPOUND MITRE SAW 305 X-2T | ||
| # | Part Num. | Description |
| 17 | 305X2T/017 | Complete vertical vice x 305 X2 / T |
| 22 | 305X2T/022 | Knob |
| 36 | 305X2T/036 | Bolt Left Thead 305X2T |
| 37 | 305X2T/037 | Clamp flange 05X2T |
| 39 | 305X2T/039 | Recieve flange 305X2T |
| 41 | 305X2T/041 | Carter cover blade |
| 43 | 305X2T/043 | Nut M5 |
| 44 | 305X2T/044 | Spring d.10.5x22x1.2 |
| 45 | 305X2T/045 | Socket screw |
| 46 | 305X2T/046 | Blade spacer |
| 54 | 305X2T/054 | Motor holder arm |
| 55 | 305X2T/055 | Nut M5 UNI5587 |
| 56 | 305X2T/056 | Upper half handle |
| 57 | 305X2T/057 | Lever |
| 58 | 305X2T/058 | Spring |
| 59 | 305X2T/059 | Switch release button |
| 61 | 305X2T/061 | Arm return spring |
| 63 | 305X2T/063 | Switch |
| 64 | 305X2T/064 | Butterfly |
| 65 | 305X2T/065 | Switch cover |
| 68 | 305X2T/068 | Lower half handle |
| 71 | 305X2T/071 | electronic board 305X2T |
| 72 | 305X2T/072 | 40mF capacitor |
| 73 | 305X2T/073 | Plastic cover |
| 76 | 305X2T/076 | Saw Tree |
| 77 | 305X2T/077 | Tab |
| 79 | 305X2T/079 | Bearing stop flange |
| 80 | 305X2T/080 | Driven pulley |
| 81 | 305X2T/081 | Plain washer d.15x28x3 UNI 1734 |
| 82 | 305X2T/082 | Low nut M15x1 burnished |
| 85 | 305X2T/085 | Poly V-belt |
| 87 | 305X2T/087 | Flat washer |
| 88 | 305X2T/088 | Pulley |
| 90 | 305X2T/090 | Ball bearing |
| 91 | 305X2T/091 | Tab |
| 95 | 305X2T/095 | Rotor |
| 96 | 305X2T/096 | Ball bearing |
| 110 | 305X2T/110 | Locking pin incl. arm |
| 121 | 305X2T/121 | Rotating nut for table 305X2T |
| 125 | 305X2T/125 | Knob locking rotation table 305X2T |
| 132 | 305X2T/132 | Semi sliding table ring |
| 156 | 305X2T/156 | Registration flange incl. arm |
| 160 | 305X2T/160 | Radial sliding rod head |
| 182 | 305X2T/182 | Left mobile stop |
| 183 | 305X2T/183 | Right mobile stop |
| 184 | 305X2T/184 | Tightening Knob M6x20 |
| 187 | 305X2T/187 | Lower bracket |
| 192 | 305X2T/192 | Arm fulcrum rod x 305 X2 / T |
| 193 | 305X2T/193 | Arm return spring |
| 198 | 305X2T/198 | Index |
| 201 | 305X2T/201 | Blade passage strip |
| 250 | 305X2T/250 | Motor Assy 305X2T |
| 251 | 305X2T/251 | Accessory set (booklet, 018, 019, 017 |
| 252 | 305X2T/252 | handle Assy (55/68) |
| 253 | 305X2T/253 | Arm stop unit (from 165 to 174) |
