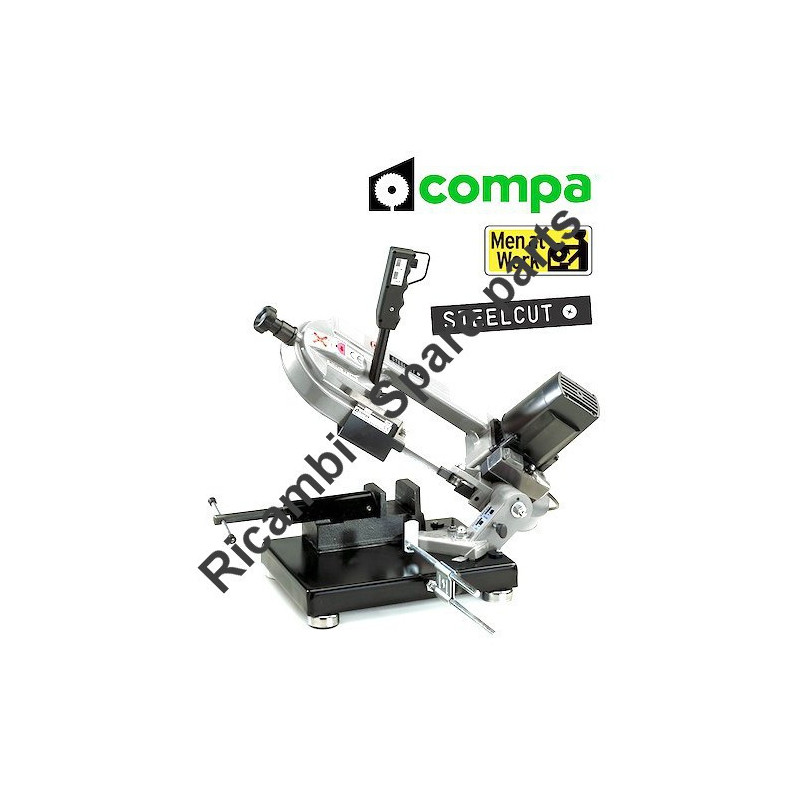

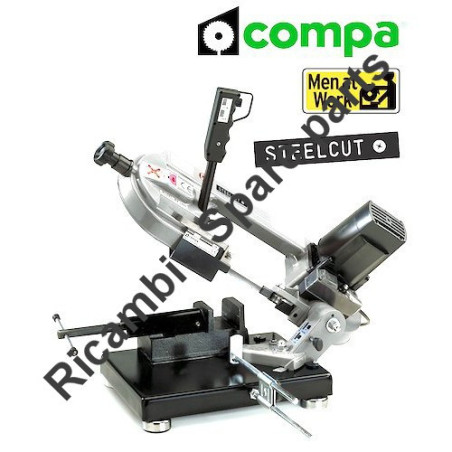

Compa-OMS Spare Parts for Band Saw SC 1325-01/VAR
€1.25
Tax included
Compa-OMS Spare Parts for Band Saw SC 1325-01/VAR
Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Band Saw SC 1325-01/VAR.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Compa-OMS Spare Parts for Band Saw SC 1325-01/VAR
Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Band Saw SC 1325-01/VAR.
In the following Table, choose the model of the Band Saw and the relative spare part code.
| Band Saw SC 1325-01/VAR | ||
| # | Part Num. | Description |
| 1 | WS1000/001 | Adjustable stop |
| 2 | WS1000/002 | Square screw under the head |
| 3 | WS1000/003 | Basement |
| 4 | WS1000/004 | Hexagonal head screw |
| 5 | WS1000/005 | Nut |
| 6 | WS1000/006 | Foot |
| 7 | WS1000/007 | Hexagonal cylindrical screw |
| 8 | WS1000/008 | Washer |
| 9 | WS1000/009 | Eccentric washer |
| 10 | WS1000/010 | Cross cylindrical head screw |
| 11 | WS1000/011 | Rivet |
| 12 | WS1000/012 | Graduated scale |
| 13 | WS1000/013 | Seeger ring |
| 14 | WS1000/014 | Cylindrical plug |
| 15 | WS1000/015 | vise |
| 16 | WS1000/016 | Pin with caps |
| 17 | WS1000/017 | Self-blocking dice |
| 18 | WS1000/018 | Wheat |
| 19 | WS1000/019 | Head lock |
| 20 | WS1000/020 | Locking pin |
| 21 | WS1000/021 | Blind nut |
| 22 | WS1000/022 | Hex nut |
| 23 | WS1000/023 | Washer |
| 24 | WS1000/024 | Articulated support |
| 25 | WS1000/025 | Snap handle (USE 23010220!) |
| 26 | WS1000/026 | Ring |
| 27 | WS1000/027 | Stator ASSY |
| 28 | WS1000/028 | Fine grain stroke |
| 29 | WS1000/029 | Nut |
| 30 | WS1000/030 | Washer |
| 31 | WS1000/031 | Spring |
| 32 | WS1000/032 | Pin hinging |
| 33 | WS1000/033 | Electronic card protection |
| 33 | WS1000/0333 | Variator complete (33.34,35,36,37,38,39,40 |
| 36 | WS1000/036 | ON OFF button |
| 37 | WS1000/037 | Electronic card |
| 38 | WS1000/038 | ON OFF button |
| 40 | WS1000/040 | cap |
| 41 | WS1000/041 | Lives |
| 42 | WS1000/042 | Strain |
| 43 | WS1000/043 | Power cord with plug |
| 44 | WS1000/044 | Armature assembly |
| 44 | WS1000/044-1 | Rotor bearing rubber bushing |
| 45 | WS1000/045 | Contact charcoal engine |
| 45 | WS1000/045-1 | Brush holder WS1000 |
| 46 | WS1000/046 | Switch |
| 47 | WS1000/047 | Handle |
| 48 | WS1000/048 | Bearing slider |
| 49 | WS1000/049 | Washer |
| 50 | WS1000/050 | Handle |
| 51 | WS1000/051 | Lives |
| 52 | WS1000/052 | Fan cover |
| 53 | WS1000/053 | Hexagonal head screw |
| 54 | WS1000/054 | Engine support |
| 55 | WS1000/055 | Motor casing |
| 56 | WS1000/056 | Blind nut |
| 57 | WS1000/057 | Washer |
| 58 | WS1000/058 | Bearing |
| 59 | WS1000/059 | Lives |
| 60 | WS1000/060 | Plug |
| 61 | WS1000/061 | Lives |
| 62 | WS1000/062 | Protection plate |
| 63 | WS1000/063 | Electrical cable |
| 64 | WS1000/064 | Handle rod |
| 65 | WS1000/065 | Washer |
| 66 | WS1000/066 | Bearing |
| 67 | WS1000/067 | Fixed pin |
| 68 | WS1000/068 | Eccentric pin |
| 69 | WS1000/069 | SKF HK0609 needle roller case |
| 70 | WS1000/070 | Thick washer d.6,1x12x0,1 |
| 71 | WS1000/071 | Helical gear |
| 72 | WS1000/072 | Straight gear |
| 73 | WS1000/073 | Roller case |
| 74 | WS1000/074 | Rond.piana UNI6592 brass d.6,4x12,5x1,6 |
| 75 | WS1000/075 | Spacing washer d.6,1x12x0,1 |
| 76 | WS1000/076 | Roller case |
| 77 | WS1000/077 | Elastic ring (OBSOLETE !! DOES NOT COME |
| 78 | WS1000/078 | Bearing 627 ZZ 7x22x7 |
| 79 | WS1000/079 | Primary gear |
| 80 | WS1000/080 | Bearing 6202 ZZ 15x35x11 |
| 81 | WS1000/081 | Spacing washer d.8,1x14x0,1 |
| 82 | WS1000/082 | SKF HK0810 needle roller case |
| 83 | WS1000/083 | Arm |
| 84 | WS1000/084 | Blade register bush |
| 85 | WS1000/085 | Spring |
| 86 | WS1000/086 | Knob d.55 M8x95 |
| 87 | WS1000/087 | Spring guide ring |
| 88 | WS1000/088 | Wheat |
| 89 | WS1000/089 | Lives |
| 90 | WS1000/090 | Strain |
| 91 | WS1000/091 | Hexagonal nut blind |
| 92 | WS1000/092 | Washer |
| 93 | WS1000/093 | Lives |
| 94 | WS1000/094 | Nut |
| 95 | WS1000/095 | Bearing |
| 96 | WS1000/096 | Nut |
| 97 | WS1000/097 | Cylindrical plug |
| 98 | WS1000/098 | Washer |
| 99 | WS1000/099 | Bearing |
| 100 | WS1000/100 | Washer |
| 101 | WS1000/101 | Feltrino |
| 102 | WS1000/102 | Support |
| 103 | WS1000/103 | Fixed pin |
| 104 | WS1000/104 | Eccentric pin |
| 105 | WS1000/105 | Square pin under the head |
| 106 | WS1000/106 | Insert |
| 108 | WS1000/108 | Bearing |
| 109 | WS1000/109 | Washer |
| 110 | WS1000/110 | Bearing |
| 111 | WS1000/111 | Support clamping x WS 1000 |
| 112 | WS1000/112 | Bead sleeve |
| 113 | WS1000/113 | Spring |
| 114 | WS1000/114 | Washer |
| 115 | WS1000/115 | Washer |
| 116 | WS1000/116 | Square nut |
| 117 | WS1000/117 | Screw for square nut x WS 1000 |
| 117 | WS1000/118 | Idler pulley support |
| 119 | WS1000/119 | Idle wheel shaft |
| 120 | WS1000/120 | Washer |
| 121 | WS1000/121 | Idler wheel |
| 123 | WS1000/123 | Blade guard fixing screw |
| 124 | WS1000/124 | Sheet metal casing |
| 125 | WS1000/125 | Driving wheel |
| 126 | WS1000/126 | Integrated circuit |
| 127 | WS1000/127 | Support for coal contacts |
| 131 | WS1000/131 | 14x16x15 KU bushing |
| 132 | WS1000/132 | Vise support plate |
| 133 | WS1000/133 | Complete engine Ws1000 (27-44-45-51-52- |
| 134 | WS1000/134 | WS1000 belt tensioning unit |
| 135 | WS1000/135 | External blade guide |
