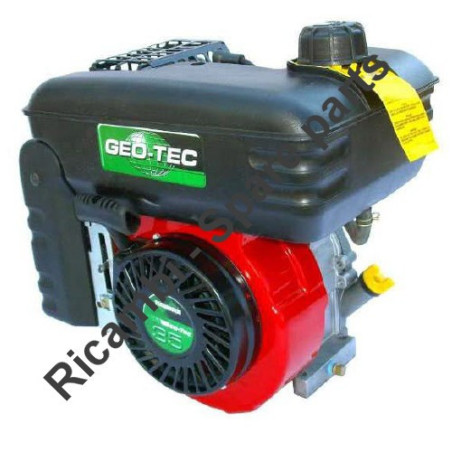

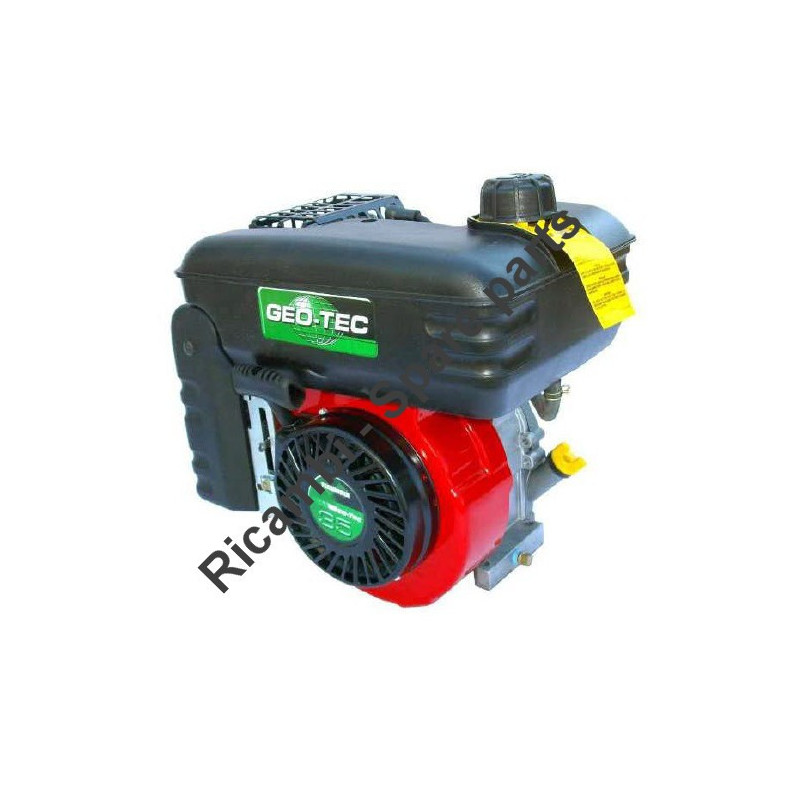

CM Motori Spare Parts for Motor Geotec
€9.32
Tax included
CM Motori Spare Parts for Engine Geotec
CM Motori genuine parts or replacement parts for to repair engines CM GEOTEC with Centrifugal or Self Priming body Pump.VALVES: head for high efficiency and low emissions
SHAFT: heat-treated steel
ROD: pressed aluminum and treated
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
CM Motori Spare Parts for Engine Geotec
CM Motori genuine parts or replacement parts for to repair engines CM GEOTEC with Centrifugal or Self Priming body Pump.
In the following table, look for the model of the Motor Pump and the respective parts of the code.
Items will be shipped within 7/10 working days approx.
| ENGINE CM GEOTEC | ||
| 1 | 16010085 | Cylinder (2,3,4,7 Inc.) (66.60 mm Ales.) |
| 2 | 29410001 | Wheat |
| 3 | 27430009 | Ball Bearing |
| 4 | 29610034 | Corteco |
| 5 | 16130001 | Complete Valve Intake (Inc.- 9.110) (Std) |
| 5 | 16130002 | Complete Valve Intake (Inc. 9 1 0) (OS. 0.80 mm) |
| 6 | 16140009 | Exhaust valve (0 Inc.- 9.1) (Std) |
| 7 | 29320003 | Drainage oil cap |
| 9 | 27910003 | Valve Spring |
| 10 | 22470006 | Lower cup |
| 11 | 16070123 | Complete Crankshaft |
| 12 | 29590029 | Thrust washer |
| 14 | 16090009 | Plunger and plug (16 Inc.) (OS. 00:50 mm) |
| 14 | 16090007 | Plunger and plug (16 Inc.) (Std Ales 63.50 mm.) |
| 14 | 16090008 | Plunger and plug (16 Inc.) (OS. 0.25mm) |
| 15 | 16100010 | Complete Set Rings (OS. 0.25mm) |
| 15 | 16100009 | Complete Set Rings (STD 63.50 mm Ales.) |
| 15 | 16100011 | Complete Set Rings (OS. 12:50 mm) |
| 15 | 16100015 | Complete Set Rings (Std 66.60 mm Ales.) |
| 15 | 16100017 | Complete Set Rings (OS. 0.50 mm) |
| 15 | 16100016 | Complete Set Rings (OS. 0.25 mm) |
| 16 | 29450004 | Retention Pin Piston |
| 18 | 29190164 | Screw 114 - 20 (L=23mm) |
| 20 | 22330006 | Oil mixer |
| 17A | 16110005 | Complet Rod (Inc. 18A, 20A) |
| 18A | 29190171 | Screw 1/4 - 20 (L = 24 mm) |
| 20A | 22330005 | Oil mixer |
| 21 | 22440001 | Tappet |
| 22 | 22410075 | Camshaft (RCR) |
| 24 | 29630020 | Cover Gasket Cylinder |
| 25 | 16040016 | Full cover cylinder (26,27,28 Inc.) |
| 26 | 29610002 | Corteco |
| 27 | 22720011 | Regulator rod |
| 28 | 27430001 | Ball Bearing |
| 29 | 29190171 | Screw 1/4 - 20 (L = 24mm) |
| 30 | 29490005 | Fuel pipe clip |
| 32 | 29510015 | Rosetta |
| 33 | 16170005 | Gear regulator |
| 34 | 22740010 | Spool Regulator |
| 35 | 29450005 | Retention Gear regulator |
| 38 | 22750017 | Probe POST |
| 40 | 29450021 | Retention Post probe |
| 42 | 27240145 | Controller lever |
| 43 | 29160003 | M5 screw (L = 20mm) |
| 44 | 29220006 | Nut M5 |
| 46 | 29620015 | Cylinder head gasket |
| 47 | 21210019 | Cylinder Head |
| 49 | 29180063 | Screw 5/16 - 18 (L = 36mm) |
| 50 | 15950001 | Full cap Candle |
| 51 | 29010015 | Candle |
| 52 | 29630004 | Valve Cover Gasket |
| 53 | 16190008 | Overall Vent |
| 54 | 21660010 | Valve Cover |
| 55 | 29190169 | Screw 10-24 (L = 15mm) |
| 61 | 28510041 | Aspiration duct |
| 62 | 29190171 | Screw 114-20 (L = 24mm) |
| 63 | 29630093 | Seal duct extraction |
| 64 | 16630023 | Series Adjustment Screws |
| 71 | 27920178 | Spring Regulator |
| 73 | 21520151 | Silencer |
| 74 | 27530005 | Locking plate |
| 75 | 29190152 | Screw 114-20 (L = 70mm) |
| 80 | 16380001 | Cable Massa |
| 81 | 29630013 | Seal Carburetor |
| 82 | 29210013 | Nut 114 -20 |
| 83 | 29190219 | Screw 114-20 (L = 22mm) |
| 84 | 29190208 | Screw 10-32 (L = 16mm) |
| 85 | 16290027 | Air Filter group (inc. - 86,87,88,89,90,91) |
| 86 | 23430089 | Air filter cover |
| 87 | 23410061 | Filter element (Charter) |
| 88 | 23420069 | Corps Air Cleaner |
| 89 | 23410062 | Filter Element |
| 90 | 29190242 | M5 screw (L = 36 mm) |
| 91 | 29220007 | Nut M5 |
| 94 | 29190091 | Screw 10-32 (L = 13mm) |
| 95 | 29630086 | Seal Air Filter |
| 96 | 17410111 | Fixed Speed Control (Inc. - 64) |
| 97 | 29190177 | M5 screw (L = 10mm) |
| 98 | 24320247 | Conveyor |
| 99 | 29190038 | Screw 114-20 (L = 12mm) |
| 101 | 16210038 | Complete Fuel Tank (II02 Inc.) |
| 102 | 13350003 | Gas Cap |
| 103 | 29190091 | Screw 10-32 (L = 13mm) |
| 104 | 29490031 | Fuel pipe clip |
| 105 | 16270001 | Conducted Fuel (Only available in rolls of 5m) |
| 106 | 29510050 | Elastic Washer |
| 107 | 29210020 | Nut 112-20 |
| 110 | 24220015 | Cup Starter |
| 112 | 29190180 | Screw 8-32 (L = 8mm) |
| 113 | 14210090 | Complete TOP starter (Inc. - 1 14) |
| 114 | 24230004 | Handle Starter |
| 115 | 27410145 | Tank bracket (Superior) |
| 117 | 24330139 | Bracket Protection |
| 118 | 29190310 | Screw 1/4 - 20 (L = 1 5mm) |
| 119 | 29190186 | Screw 10-24 (L = 14mm) |
| 129 | 29190038 | Screw 1/4 - 20 (L = 12mm) |
| 130 | 27410140 | Bracket Protection |
| 132 | 29630096 | Seal tube Oil Level |
| 135 | 29320040 | Oil level dipstick |
| 136 | 29630094 | Seal oil level dipstick |
| 140 | 23088011 | Carburettor |
| 142 | 29410009 | Stick Badminton |
| 150 | 24110045 | Flywheel (Heavy) |
| 151 | 29490055 | Spacer Key Flywheel |
| 152 | 14160072 | Ignition Coil ACE (Turning full) |
| 153 | 29190168 | Screw 10-24 (L = 24mm) |
| 165 | 16610030 | Seals series |
| 214 | 24330133 | Protection Silencer |
| 215 | 29190221 | Tek Screw |
| 216 | 29190186 | Screw 10-24 (L = 14mm) |
| 331 | 19710002 | Complete Sensor Oil |
| 333 | 29510054 | Washer |
| Centrifugal + Self Priming Body Pump | ||
| 96 | 1000300F00 | BOLT TE 6x16 |
| 102 | 1000900F00 | BOLT TE 6x20 |
| 105 | 29190312 | BOLT 5 / 16x1 "3/4 |
| 106 | 29190311 | BOLT 16.5 x 24 x 12.2 |
| 107 | 1001130F00 | BOLT TE 10x20 |
| 188 | 2400200F00 | AGAINST FACE 21/42/8 |
| 222 | 2850200F00 | BODY PUMP PRIMING 1'' 1/2 |
| 222 | 2850220F00 | BODY PUMP PRIMING 2 " |
| 224 | 2850400F00 | BODY PUMP CENTRIFUGAL 1'' 1/2 |
| 224 | 2850700F00 | BODY PUMP CENTRIFUGE 2'' |
| 224 | 2850600F00 | BODY PUMP CENTRIFUGE 2'' 1/2 |
| 262 | 3100200F00 | NUT M6 |
| 296 | 3500100F00 | FLANGE INLET 1'' 1/2 |
| 296 | 3500120F00 | FLANGE INTAKE 2'' |
| 326 | 3750200F00 | CRUISING |
| 330 | 3750600F00 | ROTATING 1'' 1/2 |
| 330 | 3750800F00 | ROTATING 2'' |
| 330 | 3750900F00 | ROTATING 2'' 1/2 |
| 347 | 4100600F00 | SEAL BODY PUMP |
| 384 | 4101800F00 | SEAL BODY PUMP |
| 380 | 4102810F00 | SEAL FLANGE INTAKE |
| 381 | 4103000F00 | SEAL PLUG LOAD |
| 532 | 7400300F00 | FLAT WASHER O. 6X24x2 |
| 647 | 9000920F00 | PUMP SUPPORT SPIN |
| 649 | 9000930F00 | SUPPORT PUMP PRIMING |
| 660 | 9120100F00 | PLUG LOAD 1/2 " |
| 661 | 9120200F00 | PLUG LOAD |
| 664 | 9120500F00 | DRAIN PLUG 1/4'' |
| 671 | 9170200F00 | MECHANICAL SEAL FA / 19-2 · A · X |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CM Motori snc websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CM Motori snc brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
