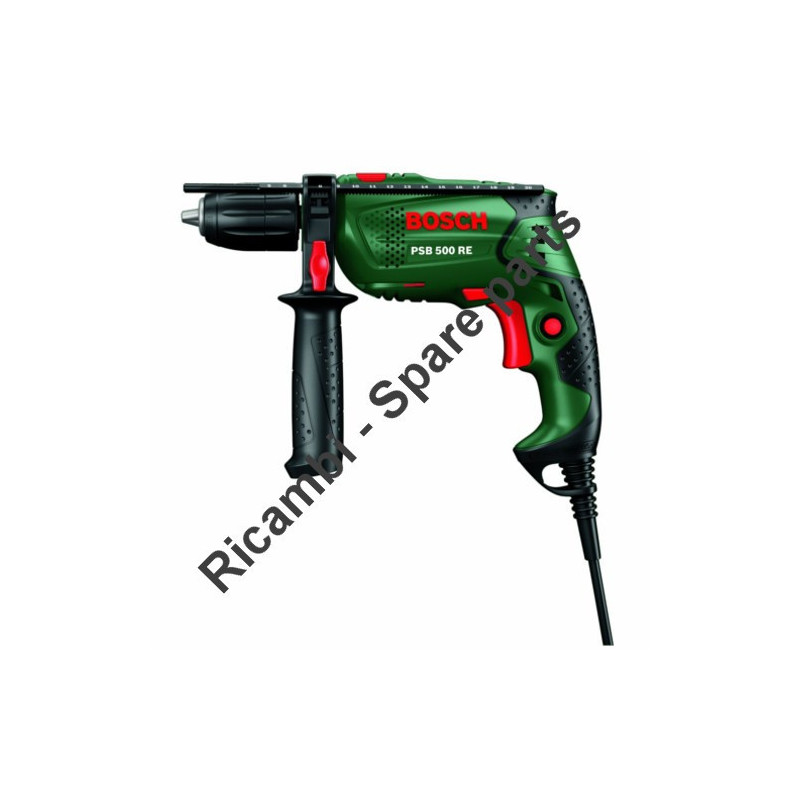

We have the original Spares BOSCH for Percussion Drill PSB 500 RE - 0603337603 the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Percussion Drill PSB 500 RE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.![]()
| Percussion Drill PSB 500 RE/0 603 337 603 | ||
| 1 | 2605104599 | Housing Section GREEN |
| 2 | 2604220601 | Field 220-240V |
| 3 | 2604011173 | Armature 230-240V |
| 3/50 | 1606610116 | Fan |
| 4 | 2607200556 | Switch |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 9 | 2601119551 | Manufacturer's nameplate |
| 16 | 2604337061 | Brush Plate |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2x9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0x1,5 MM |
| 25 | 2602098008 | Change-Over Switch RED |
| 35 | 2600914019 | Needle bearing |
| 37 | 2600301052 | Porous Bearing |
| 38 | 2601990010 | Indexing Disk BLACK |
| 39 | 2601074004 | Pressure Plate |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 42 | 2600101047 | Shim 0,3 MM |
| 45 | 2604610047 | Compression Spring |
| 47 | 2608040120 | Frame |
| 48 | 2600390031 | Sleeve |
| 53 | 2601329043 | Contact Strap |
| 54 | 2601119602 | Reference Plate RED |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 56 | 2604448228 | Pvc-Insulated Cable L=120 MM BLUE |
| 746 | 2608571056 | Key Chuck 1/2" |
| 746/7 | 2607950007 | Chuck Wrench SG2 |
| 754 | 2602025102 | Auxiliary Handle 1/2" |
| 755 | 2603001019 | Depth-Gauge |
| 805 | 1607000388 | Power supply cord EU 2,65m 2 x 1,0mm |
| 808 | 2601119680 | Nameplate |
| 813 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 816/04 | 2607014017 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9x13-C-H |
| 826 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 833 | 2605807932 | Bearing Bracket |
| 834 | 2603231040 | Push-Button BLACK |
| 836 | 2605808922 | Gear Cover GREEN |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3x5 |
