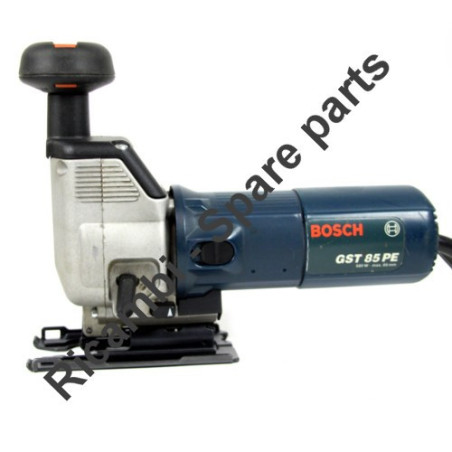

Bosch Spare Parts for Jig Saw GST 85 PE
€2.60
Tax included
Bosch Spare Parts for Jig Saw GST 85 PE
Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST 85 PE - 0601584603.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Jig Saw GST 85 PE
Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST 85 PE - 0601584603.
In the following table, look for the model of the jig Saw and the respective parts of the code.
| Jig Saw GST 85 PE/0 601 584 603 | ||
| # | Part Num. | Description |
| 4 | 1903201042 | Needle Roller DIN 5402-A3x11,8-G2 |
| 5 | 2600108077 | Felt Washer |
| 6 | 2600500002 | Cupped Washer |
| 8 | 2916660008 | Spring retaining ring DIN 472-24x1,2 MM |
| 9 | 2600400008 | Receptacle |
| 12 | 2600101616 | Shim 0,5 MM |
| 15 | 1619P02581 | Eccentric Cog Wheel |
| 16 | 2600102653 | Shim 1,0 MM |
| 17 | 2600100515 | Shim 0,3 MM |
| 17A | 2600100516 | Shim 0,5 MM |
| 18 | 2601923004 | Fork Lever |
| 20 | 2600102652 | Shim 0,5 MM |
| 21 | 2600100625 | Shim 0,1 MM |
| 21A | 2600100626 | Shim 0,2 MM |
| 21B | 2600100627 | Shim 0,3 MM |
| 21C | 2600100628 | Shim 0,5 MM |
| 22 | 2601098003 | Counterweight |
| 23 | 2600309009 | Spacer Sleeve |
| 25 | 2600100575 | Shim 0,2 MM |
| 25A | 2600100576 | Shim 0,3 MM |
| 25B | 2600100577 | Shim 0,5 MM |
| 27 | 2914551176 | Microencapsulated Screw DIN 7985-M4x12MM |
| 29 | 2600100568 | Shim 0,5 MM |
| 29A | 2600100569 | Shim 1,0 MM |
| 29B | 2600100607 | Shim 0,3 MM |
| 32 | 2602305042 | Air Eliminator |
| 34 | 2600590006 | Ratchet Cap |
| 35 | 2602026036 | Rotary Knob BLACK |
| 37 | 2602026037 | Rotary Knob BLACK |
| 39 | 2601015050 | Seal |
| 40/10 | 2600301046 | Sintered-Metal Bushing |
| 40/20 | 2600301045 | Bushing |
| 41 | 2603410048 | Thread-forming tap. Screw M4x8 |
| 42 | 2604613000 | Compression Spring |
| 43 | 2601322010 | Guide Bracket |
| 44 | 2600780177 | Lifting Rod |
| 45 | 2602329011 | Clamping Saddle |
| 46 | 2602317053 | Sliding Piece |
| 47 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5x8-10.9 |
| 48 | 2600112031 | Supporting Disc 0,5 MM |
| 49 | 2600290017 | Seal ring 0,5 MM |
| 50 | 2600101612 | Shim 0,5 MM |
| 53 | 2603490011 | Clamp Screw |
| 57 | 2600116011 | Locking Washer |
| 60 | 2603490024 | Torx Oval-Head Screw 4x25 |
| 62 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 64 | 2601030019 | Profile Beading |
| 65 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6x16-8.8 |
| 68 | 2605702016 | Flanged Fitting |
| 71 | 2604617003 | Compression Spring |
| 72 | 2603410054 | Thread-forming tap. Screw M 5x16 |
| 74 | 2603410049 | Thread-forming tap. Screw M4x12 MM |
| 75 | 2606491015 | Coupling Half |
| 76 | 2601328044 | Scale Plate |
| 77 | 2600100032 | Shim 0,2 MM |
| 78 | 2601110930 | Sticker |
| 85 | 2604610040 | Compression Spring |
| 90 | 2601322021 | Safety Device |
| 91 | 2910011128 | Socket head cap screw DIN 84-AM4x18-5.8 |
| 102 | 2604220709 | Field 220-240V |
| 103 | 2604010578 | Armature 230-240V |
| 103/60 | 2606610049 | Fan |
| 104 | 2607200674 | Switch |
| 106 | 2600703027 | Grommet Ø6,5-Ø6,9x95 MM |
| 107 | 2601035001 | Cable Clip |
| 109 | 2601118483 | Manufacturer's nameplate GST 85 |
| 112 | 2607329104 | Suppression Filter |
| 113 | 1900905018 | Deep-Groove Ball Bearing 7x22x7 |
| 116 | 2601323021 | Brush Holder |
| 2601323022 | Brush Holder | |
| 118 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 119 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 120 | 2601118526 | Reference Plate SHADOW SIDE |
| 129 | 2910601321 | Tapping Screw DIN 7982-ST3,9x22C-H |
| 130 | 2602026015 | Switch Handle BLACK |
| 131 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 132 | ||
| 133 | 2604465049 | Suppression Filter |
| 134 | 2604448044 | Connecting Cable L=86MM WHITE |
| 135 | 2604448140 | Cable L=103MM WHITE |
| 137 | 2604448040 | Connecting Cable L=125MM WHITE |
| 139 | 2910611006 | Tapping Screw DIN 7981-ST2,9x13-C-H |
| 140 | 2600409017 | Insulation Tubing |
| 149 | 2603231032 | Plug BLUE |
| 150 | 2600101027 | Shim washer 0,3 MM |
| 150A | 2600101022 | Shim 0,2 MM |
| 150B | 2600101020 | Shim 0,5 MM |
| 151 | 2600150004 | Shim |
| 152 | 2603435086 | Tapping Screw |
| 153 | 2602319005 | Adjusting Slide BLUE |
| 154 | 2601328045 | Cover Disc |
| 155 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 156 | 2604652009 | Spiral Spring |
| 157 | 2600508037 | Housing Cover BLUE |
| 801 | 2605808917 | Gear Housing |
| 802 | 2605108904 | Motor Housing BLUE |
| 805 | 1607000385 | Power supply cord EU 2,6m 2 x 1,0 mm |
| 807 | 2600905021 | Deep-Groove Ball Bearing 9x24x7 |
| 810 | 2604320912 | Carbon-Brush Set |
| 810A | 1607000486 | Carbon-Brush Set 10 x 2 604 320 912 |
| 813 | 2607001130 | Needle-Roller Cage |
| 819 | 2916080007 | Locking Washer DIN 6799-4-FSt |
| 824 | 2601072901 | Eccentric Disc |
| 826 | 2916080910 | Locking Washer DIN 6799-7-FSt |
| 830 | 2600917900 | Needle bearing |
| 836 | 2916080008 | Locking Washer DIN 6799-5-FSt |
| 838 | 2600116009 | Spring retaining ring |
| 840 | 2605808921 | Gear Cover |
| 851 | 2601015901 | Sealing Plate |
| 854 | 2601321902 | Roller Lever |
| 855 | 2600326903 | Roller Set |
| 859 | 2916080005 | Locking Washer DIN 6799-2,3 |
| 861 | 2605500900 | Fan Cover |
| 863 | 2601016903 | Base Plate |
| 869 | 2602026900 | Handle |
| 888 | 1601106032 | Nameplate 26x52 MM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GST 85 PE - 0601584603
10 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
