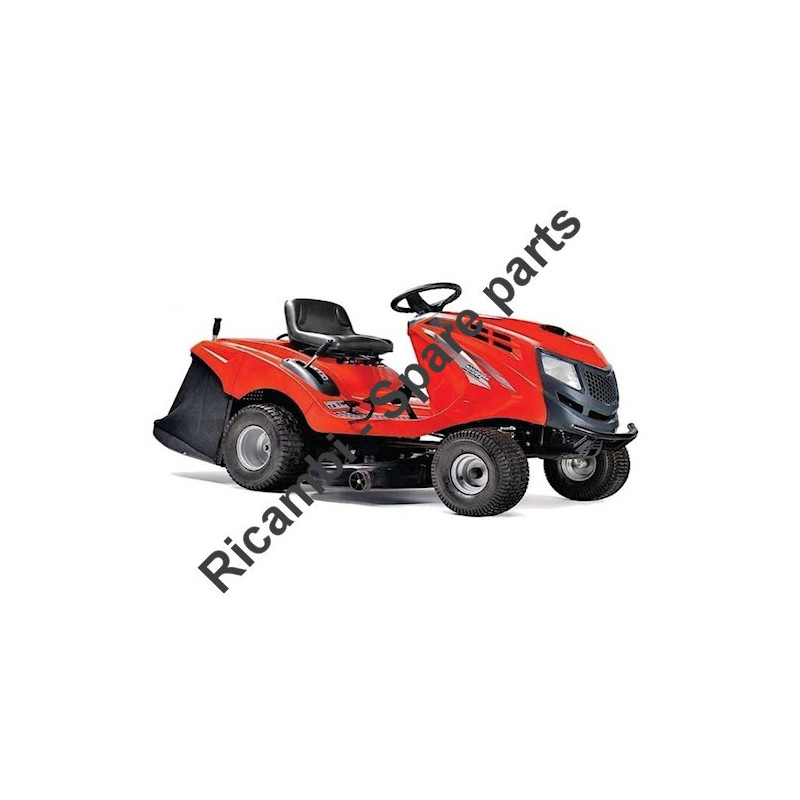

Ama Spare Parts for Lawn Tractor ATR102B – 89977
€48.28
Tax included

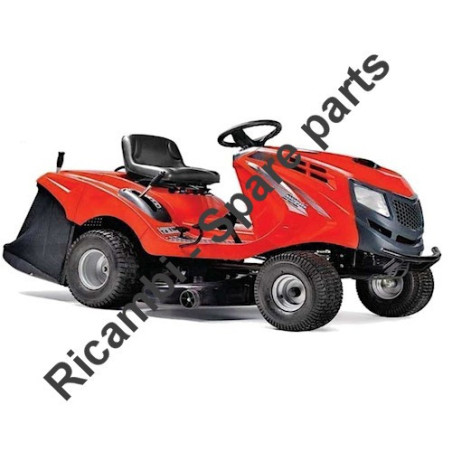

Ama Spare Parts for Lawn Tractor ATR102B – 89977
Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.For Availability and order management times, call our telephone numbers.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Lawn Tractor ATR102B – 89977
Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.
For Availability and order management times, call our telephone numbers.
In the following table, look for the model of the Lawn Tractor and the respective parts of the code.
| AMA Garden Lawn Tractor ATR102B – 89977 | ||
| Cover Pag.1 | ||
| # | Part Num. | Description |
| 1 | RZJ0332 | Rear cover |
| 2 | RZJ0338 | Right foot board |
| 3 | RZJ0339 | Bottom plate |
| 4 | Screws M6x25 | |
| 5 | RZJ0337 | Left foot board |
| 6 | RZJ0329 | Left cover |
| 7 | Screw ST4.8x13 | |
| 8 | RZJ0080 | Left light cover |
| 9 | RZJ0070 | Front cover |
| 10 | Clamp | |
| 11 | RZJ0468 | Pin |
| 12 | Hair pin cotter | |
| 13 | RZJ0081 | Right light cover |
| 14 | RZJ0331 | Light |
| 15 | Top cover | |
| 16 | Screw ST4.2x10 | |
| 17 | RZJ0360 | Front wind board |
| 18 | RZJ0330 | Right cover |
| 19 | RZJ0340 | Left wind board |
| 20 | RZJ0469 | Spring fastener |
| 21 | RZJ0341 | Right wind board |
| 22 | Hexagon lock nut M5 | |
| 23 | RZJ0334 | Instrument board |
| 24 | RZJ0333 | Shield |
| 25 | Screw M5x16 | |
| 26 | Hexagon bolt M6x16 | |
| 27 | RZJ0335 | Cup support |
| 28 | RZJ0336 | Handle guide plate |
| 29 | RZJ0052 | Clutch switch |
| 30 | RZJ0049 | Rotary Switch |
| 31 | Hexagon bolt M5x45 | |
| 32 | Switch gland | |
| 33 | RZJ0370 | Guide sleeve |
| 34 | RZJ0259 | Spring |
| 35 | RZJ0260 | Rubber pad |
| 36 | RZJ0306 | Buckle nut M6 |
| 37 | Hexagon lock nut M6 | |
| 38 | RZJ0048 | Open Close Switch |
| 39 | RZJ0098 | Seat switch base |
| 40 | Screw M6x16 | |
| Frame Pag.2 | ||
| 2 | RZJ0497 | Front cover bracket L |
| 5 | RZJ0393 | Bumper weldment |
| 6 | RZJ0390 | Frame weldment |
| 7 | RZJ0498 | Front cover bracket R |
| 8 | RZJ0345 | Bumper end lid |
| 9 | RZJ0490 | Muffler cover |
| 11 | RZJ0517 | Muffler |
| 12 | RZJ0163 | Muffler base |
| 15 | RZJ0150 | Tank cap |
| 16 | RZJ0277 | Screw5/16-18UNC |
| 17 | RZJ0035 | Vent-pipe washer |
| 18 | RZJ0286 | Nut 5/16-18UNC |
| 19 | RZJ0159 | Vent Pipe |
| 20 | RZJ0185 | Vent pipe shield |
| 22 | RZJ0076 | Tank |
| 23 | RZJ0496 | Hood fastener |
| 24 | RZJ0509 | Pivot tube |
| 26 | Hexagon nut M3 | |
| 27 | Spring washer 3 | |
| 28 | RZJ0055 | Buzzer |
| 29 | Screw M3x10 | |
| 30 | RZJ0051 | Light switch |
| 32 | RZJ0394 | Front bracket weldment |
| 33 | RZJ0006 | Throttle cable |
| 35 | Fuel tube | |
| 36 | Tube hoop | |
| 37 | Screw ST4.2x10 | |
| 39 | RZJ0048 | switch |
| 40 | RZJ0491 | Switch base |
| 42 | RZJ0141 | Seat |
| 43 | RZJ0144 | Seat mounting bracket |
| 44 | RZJ0143 | Swivel bolt |
| 48 | RZJ0494 | Spring flake |
| 49 | RZJ0344 | Spring cap |
| 52 | RZJ0444 | Seat spring |
| 53 | RZJ0493 | Switch base |
| 54 | RZJ0492 | Switch base weldment |
| 55 | Cotter pin 2x16 | |
| 56 | RZJ0050 | Switch |
| 57 | Screw M3x20 | |
| 58 | RZJ0086 | Hook |
| 59 | RZJ0085 | Switch lever |
| 61 | RZJ0392 | Swivel bracket weldment(R) |
| 62 | RZJ0391 | Swivel bracket weldment(L) |
| 63 | RZJ0518 | Rear baffle plate |
| 64 | RZJ0157 | Tow attachment |
| 65 | RZJ0168 | Brackrt for spring R |
| 66 | RZJ0167 | Brackrt for spring L |
| 67 | RZJ0095 | Pull hook |
| 68 | RZJ0111 | Spring |
| 69 | RZJ0460 | Pin screw |
| 70 | RZJ0064 | Height control block |
| 72 | RZJ0495 | Bracket |
| Traction Group Pag.3 | ||
| 1 | RZJ0483 | Engine axial bolt 7/16-20unf |
| 5 | RZJ0482 | Clutch support |
| 6 | RZJ0057 | Electric clutch |
| 7 | RZJ0112 | Engine pulley weldment |
| 8 | RZJ0297 | Key 6.35x6.35x30 |
| 9 | Grease fitting M6 | |
| 11 | RZJ0151 | Idler pulley |
| 12 | RZJ0140 | Pulley bushing |
| 13 | RZJ0479 | Idler pulley arm weldment |
| 14 | Axial elastic ring 16 | |
| 15 | RZJ0284 | Hexagon nut M10x1.25 |
| 16 | RZJ0119 | Traction spring |
| 17 | RZJ0128 | Hub cover |
| 18 | Snapring 15 | |
| 19 | RZJ0478 | Washer ¢20x43x3 |
| 20 | RZJ0130 | Tyre 18x8.5-8 |
| 21 | Axial elastic ring 14 | |
| 22 | RZJ0179 | Brake arm weldment |
| 23 | RZJ0488 | Brake axle |
| 24 | RZJ0013 | Brake cable assembly |
| 25 | RZJ0343 | Brake pedal |
| 27 | RZJ0489 | Brake pedal weldment |
| 29 | Hair pin | |
| 30 | RZJ0181 | Parking arm weldment |
| 31 | RZJ0120 | Torsiong spring |
| 32 | RZJ0164 | Pivot |
| 33 | RZJ0342 | Parking pedal |
| 34 | RZJ0137 | Spacer ring |
| 35 | RZJ0045 | Key 4.85x4.85-60 |
| 36 | RZJ0138 | Hydro gear |
| 38 | RZJ0132 | Idler pulley |
| 39 | RZJ0481 | Spacer ring |
| 42 | RZJ0299 | R-SW Base |
| 43 | RZJ0048 | switch |
| 45 | RZJ0290 | Jion bearingS1JK8C |
| 47 | RZJ0178 | Pull rod |
| 48 | RZJ0177 | Drive arm weldment |
| 51 | Cotter pin 3.2x25 | |
| 52 | RZJ0320 | Drive control pedal |
| 54 | RZJ0180 | Forward arm |
| 56 | RZJ0183 | Oil drain plug |
| 57 | O sealing ring11.2x2.65 | |
| 58 | RZJ0182 | Oil drain tube |
| 59 | Engine | |
| 60 | Axial elastic ring 16 | |
| 61 | RZJ0348 | Rubber bushing |
| 62 | RZJ0176 | Cross shaft weldment |
| 63 | Hair pin cotter | |
| 65 | RZJ0487 | Position control screw |
| 66 | RZJ0175 | Reverse arm weldment |
| 67 | RZJ0174 | Drive pull lever weldment |
| 68 | Hexagon nut M10 | |
| 69 | RZJ0484 | Swivel jiont M10 |
| 72 | RZJ0486 | Transmission support |
| 73 | RZJ0118 | Traction spring |
| 74 | RZJ0465 | Pull lever |
| 75 | RZJ0134 | Damper |
| 77 | RZJ0058 | Belt AP2700 |
| 79 | RZJ0485 | Damper support |
| Steering Pag.4 | ||
| 1 | RZJ0128 | Hub cover |
| 2 | Axial elastic ring 20 | |
| 3 | RZJ0478 | Washer |
| 4 | RZJ0470 | Bearing washer |
| 5 | Bearing 61904 | |
| 6 | RZJ0129 | Tyre 15x6-6 |
| 7 | RZJ0135 | R-stube axle weldment |
| 8 | RZJ0294 | Join bearing |
| 9 | Hexagon nut M10 | |
| 10 | Washer 20 | |
| 11 | RZJ0071 | Bushing |
| 12 | RZJ0113 | L-stube axle weldment |
| 13 | RZJ0160 | Pull rod |
| 14 | RZJ0042 | Hexagon nut 10-LH |
| 15 | RZJ0293 | Join bearing |
| 16 | RZJ0395 | Front beam weldment |
| 17 | RZJ0304 | Rubbber cushion |
| 18 | RZJ0472 | Pivot axis |
| 19 | RZJ0473 | Bush |
| 20 | Screw M10x50 | |
| 21 | RZJ0476 | Turning arm 1 |
| 22 | RZJ0475 | Turning arm 2 |
| 23 | Hexagon bolt M8x50 | |
| 24 | Washer 8 | |
| 25 | Spring washer 8 | |
| 26 | Hexagon bolt M8x20 | |
| 27 | RZJ0284 | Hexagon lock nut M10X1.25 |
| 28 | RZJ0471 | Hexagon bush |
| 29 | Grease fitting M6 | |
| 30 | Washer 16 | |
| 31 | RZJ0082 | Rubber ring |
| 32 | RZJ0474 | Gear bracket |
| 33 | Hexagon lock nut M8 | |
| 34 | RZJ0071 | Hexagon rubber bush |
| 35 | RZJ0136 | Gear |
| 36 | Spring pin 6x26 | |
| 37 | RZJ0481 | Spacer ring |
| 38 | RZJ0292 | Joint bearing SQ10-RS |
| 39 | Hexagon nut M10 | |
| 40 | RZJ0464 | Pull rod |
| 41 | WasherФ16*28*1.5 | |
| 42 | Hexagon bolt M10x40 | |
| 43 | Screw M6x45 | |
| 44 | RZJ0079 | Steering wheel |
| 45 | Hexagon lock nut M6 | |
| 46 | RZJ0477 | Steering column |
| 47 | Hexagon bolt M10x35 | |
| 48 | RZJ0161 | Gear bracket |
| 49 | RZJ0099 | Gear plate |
| 50 | RZJ0003 | Bushing |
| 51 | Snap ring 15 | |
| Flat Lifting Pag.5 | ||
| 1 | Axial elastic ring 15 | |
| 2 | RZJ0348 | Rubber bushing |
| 3 | RZJ0499 | Lift cross shaft weldment |
| 4 | Hexagon nut M10 | |
| 5 | Hexagon bolt M10x70 | |
| Flat Lifting Pag.6 | ||
| 6 | Hair pin cotter | |
| 7 | Washer 8 | |
| 8 | RZJ0466 | Connection rod |
| 9 | Cotter pin 4x28 | |
| 10 | RZJ0184 | Pulling rod |
| 11 | Hair pin cotter 3 | |
| 12 | Washer 12 | |
| 13 | RZJ0506 | Swivel jiont 8 |
| 14 | Hexagon lock nut M8 | |
| 15 | RZJ0505 | Swivel jiont 12 |
| 16 | Hexagon lock nut M12 | |
| 17 | RZJ0504 | Swivel shaft |
| 18 | RZJ0507 | Lift arm weldment |
| 19 | RZJ0503 | Long spacer ring |
| 20 | RZJ0504 | Lift swivel shaft |
| 21 | RZJ0310 | Rubber button |
| 22 | RZJ0312 | Lift handle |
| 23 | Screw M5*8 | |
| 24 | RZJ0500 | Push rod |
| 25 | Hexagon nut M6 | |
| 26 | RZJ0502 | Pin retainer |
| 27 | Spring pin 8x40 | |
| 28 | RZJ0445 | Pressure spring |
| 29 | RZJ0449 | Spring retainer |
| 30 | RZJ0501 | Lift hangdle weldment |
| 31 | Spring pin 6x26 | |
| Plate Cut 102 cm Pag.7 | ||
| 1 | RZJ0038 | Bolt 3/8-24unf |
| 2 | RZJ0117 | washer |
| 3 | RZJ0009 | Left blade |
| 4 | RZJ0092 | Blade Hub |
| 5 | RZJ0149 | Spacer ring |
| 6 | Bearing 6204-2RZ | |
| 7 | RZJ0091 | Blade Boss |
| 8 | RZJ0509 | Pivot tube |
| 9 | RZJ0084 | Wheeel |
| 12 | Hexagon lock nut M8 | |
| 13 | RZJ0389 | Deck weldment |
| 14 | Hexagon bolt M8x25 | |
| 15 | RZJ0148 | Pivot tube |
| 16 | RZJ0147 | Left blade axle |
| 17 | RZJ0296 | Woodruff key 4x16 |
| 18 | RZJ0298 | Woodruff Key 6x6x30 |
| 19 | RZJ0146 | Pulley weldment |
| 21 | Spring washer 8 | |
| 23 | Hexagon screws M6*16 | |
| 24 | Buckle nut M6 | |
| 25 | RZJ0061 | Belt AA113 |
| 26 | RZJ0351 | Left pulley cover |
| 28 | RZJ0172 | Cover bracket |
| 29 | Hexagon lock nut M6 | |
| 30 | RZJ0122 | Traction spring |
| 31 | Hexgon bolt M6x20 | |
| 32 | Hexagon nut M12 | |
| 33 | RZJ0510 | Adjusting screw |
| 34 | Axial elastic ring 16 | |
| 35 | Grease fitting M6 | |
| 36 | Washer 6 | |
| 37 | RZJ0399 | Hander plate weldment |
| 38 | Washer 16 | |
| 39 | Hexagob bolt M10x25 | |
| 40 | Hair pin cotter 3 | |
| 41 | RZJ0514 | Connecting plate |
| 42 | RZJ0152 | Right blade axle |
| 43 | Hexagon lock nut M12 | |
| 44 | RZJ0145 | Idler pulley arm weldment |
| 45 | RZJ0508 | Spacer |
| 46 | RZJ0151 | Idler pulley |
| 47 | RZJ0005 | Pivot tube |
| 48 | RZJ0133 | Idler pulley |
| 49 | Hexagon bolt M12x45 | |
| 50 | Washer 8 | |
| 51 | RZJ0352 | Right pulley cover |
| 52 | O sealing ring11.2x2.65 | |
| 53 | Water nozzle | |
| 54 | RZJ0162 | Spring bracket |
| 55 | Hexagon lock nut M10 | |
| 56 | RZJ0121 | Traction spring |
| 57 | RZJ0010 | Right blade |
| 58 | RZJ0143 | Swivel bolt |
| 59 | RZJ0075 | Collector channel |
| 60 | RZJ0037 | LH Bolt 3/8-24unf |
| Grass Basket Pag.8 | ||
| 2 | RZJ0171 | Layer board |
| 4 | RZJ0512 | Screw rod |
| 8 | RZJ0094 | Bottom frame weldment |
| 9 | RZJ0397 | Side stay pipe |
| 10 | RZJ0096 | Front frame |
| 12 | RZJ0093 | Top frame weldment |
| 13 | RZJ0353 | Seal cap |
| 14 | RZJ0398 | Front handle |
| 15 | Washer 5 | |
| 16 | Screw M5x16 | |
| 17 | RZJ0169 | Spring fingers |
| 19 | RZJ0347 | Rear handle |
| 20 | RZJ0346 | Cover |
| 21 | Screw ST4.8x13 | |
| 22 | RZJ0312 | Handle |
| 23 | RZJ0511 | Lever |
| 24 | RZJ0059 | Grass catcher |
| 25 | RZJ0302 | Bumper |
| Electrical system Pag.9 | ||
| 1 | RZJ0155 | Push swith |
| 2 | RZJ0050 | Switch |
| 3 | RZJ0156 | Relay |
| 4 | RZJ0048 | switch |
| 5 | Starter wire | |
| 6 | 32660 | Battery |
| 7 | Engine grounding wire | |
| 8 | Screw M5x16 | |
| 9 | Hexagon lock nut M5 | |
| 10 | RZJ0303 | Rubber plate |
| 11 | RZJ0513 | Stationary frame |
| 12 | RZJ0350 | Rope |
| 13 | Hexagon nut M6 | |
| 14 | Spring washer 6 | |
| 15 | Hexagon bolt M6x16 | |
| 16 | RZJ0056 | Relay |
| 17 | RZJ0055 | Buzzer |
| 18 | RZJ0052 | Clutch switch |
| 19 | RZJ0049 | Engine lock |
| 20 | RZJ0051 | Light switch |
| 21 | Fuse | |
| 22 | Light | |
| 23 | RZJ0057 | Electric clutch |
| 24 | Power line | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AMA Garden ATR102B – 89977
12 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- MORE INFO:
- CALL US FOR AVAILABILITY AND SHIPPING TIMES
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Ama Spare Parts for Lawn Tractor ATR102B – 89977
Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATR102B – 89977.For Availability and order management times, call our telephone numbers.
