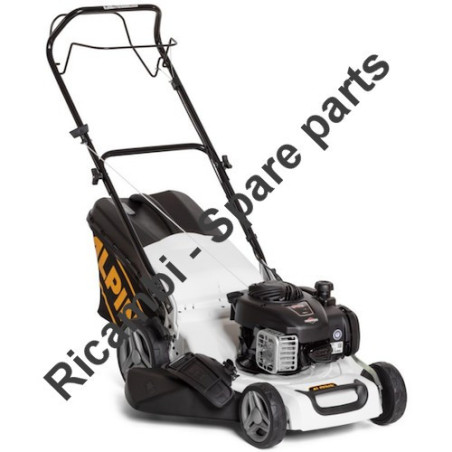

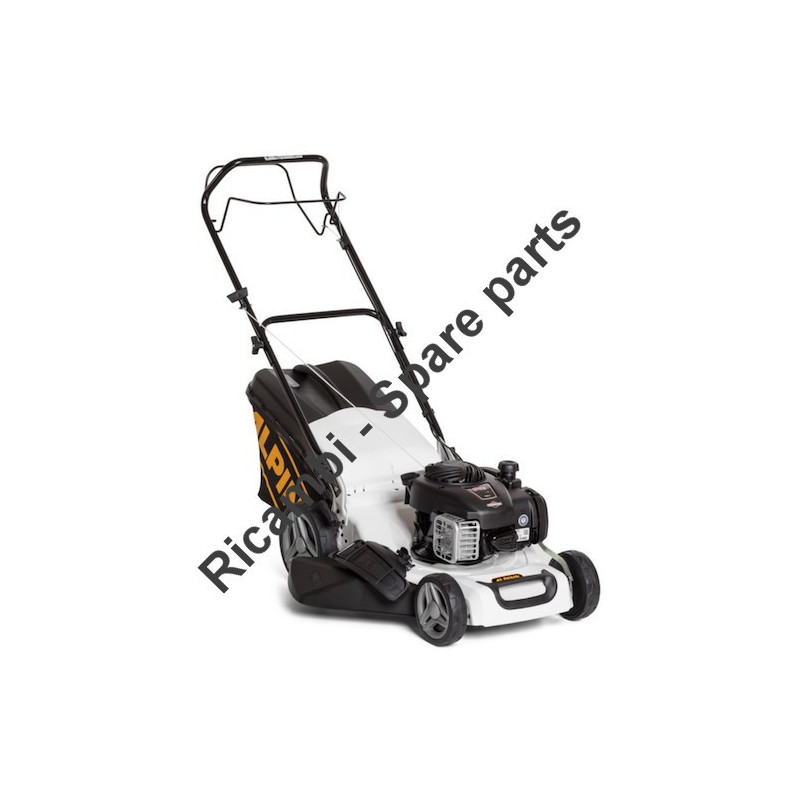

Alpina Spare Parts for Lawn Mower AL3 46 SBQ
€2.08
Tax included
Alpina Spare Parts for Lawn Mower AL3 46 SBQ
Alpina Genuine spare parts or replacement parts for to repair Lawn Mower AL3 46 SBQ/295496820/A19-2019.Fix Your Lawn Mower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Lawn Mower AL3 46 SBQ
Alpina Genuine spare parts or replacement parts for to repair Lawn Mower AL3 46 SBQ/295496820/A19-2019.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Lawn Mower AL3 46 SBQ/295496820/A19-2019 | ||
| Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381302821/0 | Front Wheel Axle |
| 2 | 322545142/0 | Plate |
| 3 | 112728698/0 | Screw |
| 4 | 112521350/0 | Washer |
| 5 | 112155000/0 | Nut |
| 6 | 112436051/0 | Plate |
| 7 | 322869673/0 | Height Adjustment Control Rod |
| 8 | 122519820/0 | Pin |
| 9 | 122446193/0 | Spring |
| 10 | 322600247/0 | Wheel Protection |
| 11 | 112728698/0 | Screw |
| 12 | 322545152/0 | Plate |
| 13 | 381302817/0 | Rear Wheel Axle |
| 14 | 122534131/0 | Pin |
| 15 | 381003357/0 | Height Adjustment Lever |
| 16 | 122446192/0 | Spring |
| 17 | 112154510/0 | Nut |
| 18 | 322600205/0 | Wheel Protection |
| 18 | 322600205/1 | Wheel Protection |
| 21 | 112521350/0 | Washer |
| 22 | 112155000/0 | Nut |
| Chassis Pag.2 | ||
| 1 | 381004939/0 | Red Chassis |
| 2 | 322108301/2 | Front Baffle |
| 3 | 112728699/0 | Screw |
| 4 | 322108302/0 | Rear Baffle To 31-August-2017 |
| 4 | 322108392/0 | Rear Baffle From 01-September-2018 |
| 5 | 112728699/0 | Screw |
| 6 | 322545213/0 | Plate |
| 7 | 381005139/0 | Left Bracket |
| 8 | 112727801/0 | Screw |
| 9 | 381005137/0 | Right Bracket |
| 10 | 322060242/1 | Belt Cover |
| 10 | 322060242/2 | Belt Cover |
| 11 | 322140239/1 | Mulching Deflector |
| 12 | 112728531/0 | Screw |
| 13 | 322820077/1 | Plug |
| 14 | 112728450/0 | Screw |
| 15 | 119035000/0 | O-R |
| 16 | 322034002/0 | Joint Water |
| 17 | 322055605/0 | Insert |
| Mask Pag.3 | ||
| 1 | 322226266/0 | Mask, Black |
| 2 | 322393772/0 | Front handle |
| 3 | 322055603/0 | Insert |
| 4 | 112728698/0 | Screw |
| Handle, Lower Part Pag.4 | ||
| 1 | 381006737/0 | Handle, Lower Part |
| 2 | 112819110/0 | Screw |
| 3 | 122671651/0 | Washer |
| 4 | 122399900/0 | Knob |
| 5 | 112293200/0 | Nut |
| 7 | 112818900/0 | Screw |
| 9 | 122399900/0 | Knob |
| 10 | 112293200/0 | Nut |
| 11 | 112155000/0 | Nut |
| 12 | 112521350/0 | Washer |
| 13 | 112369500/0 | Elastic Disc |
| 14 | 112760605/0 | Screw |
| 15 | 381008691/0 | Kit Screw |
| Manico, Parte Superiore Pag.5 | ||
| 1 | 381006739/0 | Handle, Upper side |
| 1 | 381006739/1 | Handle, Upper side |
| 1 | 381006739/2 | Handle, Upper side |
| 1 | 381006745/0 | Handle, upper side with sponge handle |
| 1 | 381006745/1 | Handle, upper side with sponge handle |
| 1 | 381006745/2 | Handle, upper side with sponge handle |
| 1 | 381006745/3 | Handle, upper side black with sponge handle |
| 2 | 122430313/0 | Guide spring |
| 3 | 112521330/0 | Washer |
| 4 | 112154510/0 | Nut |
| 5 | 118390020/0 | Cable clamp |
| 6 | 181003363/0 | Black Engine Brake Lever |
| 6 | 181003363/1 | Black Engine Brake Lever |
| 7 | 181030056/0 | Motor Brake Cable |
| 8 | 112727783/0 | Screw |
| 9 | 112154510/0 | Nut |
| 10 | 181003364/0 | Traction Control Lever |
| 11 | 381030051/0 | Traction Control Cable |
| 12 | 322551640/0 | Plate |
| Traction Group Pag.6 | ||
| 1 | 112608600/0 | Seeger |
| 2 | 122570120/1 | Left Pinion |
| 3 | 122570110/1 | Right Pinion |
| 5 | 112521371/0 | Washer |
| 6 | 181003092/0 | Traction group |
| 7 | 122601904/0 | Pulley |
| 7 | 122601909/0 | Pulley |
| 8 | 112645705/0 | Pin |
| 9 | 122033283/0 | Adjustment rod |
| 10 | 135063800/0 | Trapezoidal belt |
| 11 | 122041957/1 | Bushing |
| 12 | 122450063/0 | Spring |
| 13 | 322680009/0 | Washer |
| 14 | 112154510/0 | Nut |
| 15 | 122110230/0 | Hubcap |
| 16 | 122753000/0 | Plug |
| Wheel Pag.7 | ||
| 1 | 381007448/0 | Wheel |
| 1 | 381007448/1 | Wheel - Long Short |
| 2 | 119216035/0 | Bearing |
| 3 | 322110687/0 | Gray hubcap |
| 5 | 381007463/0 | Wheel |
| 5 | 381007463/1 | Wheel |
| 6 | 119216035/0 | Bearing |
| 7 | 112728706/0 | Screw |
| 8 | 322120117/0 | Wheel Crown |
| 9 | 322110689/0 | Gray hubcap |
| Side Drain Pag.8 | ||
| 1 | 322108309/1 | Rear conveyor |
| 3 | 112727803/0 | Screw |
| 4 | 322806659/0 | Fulcro pin |
| 5 | 112154510/0 | Nut |
| 6 | 118203853/0 | Cover |
| 7 | 122450456/0 | Spring |
| 7 | 122450456/1 | Spring |
| 8 | 122517869/1 | Pin |
| 9 | 112604896/0 | Crown Fixator |
| 10 | 122517876/0 | Pin |
| 11 | 322783013/0 | Safety |
| 12 | 122450493/0 | Spring |
| 13 | 381008161/0 | Side Drain Assy To 30 November 2018 |
| 13 | 381008161/1 | Side Drain Assy From 01 December 2018 |
| Blade Pag.9 | ||
| 1 | 112735108/1 | Screw |
| 2 | 122465607/4 | Hub With Pulley, Crankshaft Ø 22.2 |
| 3 | 181004460/0 | Mulching blade |
| 4 | 322680021/0 | Washer |
| 4 | 322680021/1 | Washer |
| 5 | 112508128/0 | Elastic Disc |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Woodruff |
| Bag Pag.10 | ||
| 1 | 322785331/0 | Support |
| 2 | 122450464/0 | Spring |
| 3 | 322109556/0 | Guard Cover, Yellow |
| 3 | 322109557/0 | Guard Cover, Gray |
| 4 | 112728699/0 | Screw |
| 5 | 322600206/1 | Black Guard |
| 5 | 322600214/1 | Yellow Guard |
| 5 | 322600216/1 | Gray Guard |
| 6 | 322393644/0 | Black Handle |
| 6 | 322393715/0 | Gray Handle |
| 7 | 381486018/0 | Bag, Black Upper Side |
| 7 | 381486029/0 | Bag, Gray Upper Side |
| 8 | 122608561/0 | Lower frame |
| 8 | 122608561/1 | Lower frame |
| 9 | 112728692/0 | Screw |
| 10 | 322545159/0 | Plate |
| 11 | 181002318/0 | Sack, Canvas |
| 12 | 381008163/0 | Black Stone guard assy |
| 12 | 381008164/0 | Yellow guard assy |
| 12 | 381008166/0 | Gray guard assy |
| 13 | 381008735/0 | Plastic pin |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina AL3 46 SBQ 295496820/A19
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
