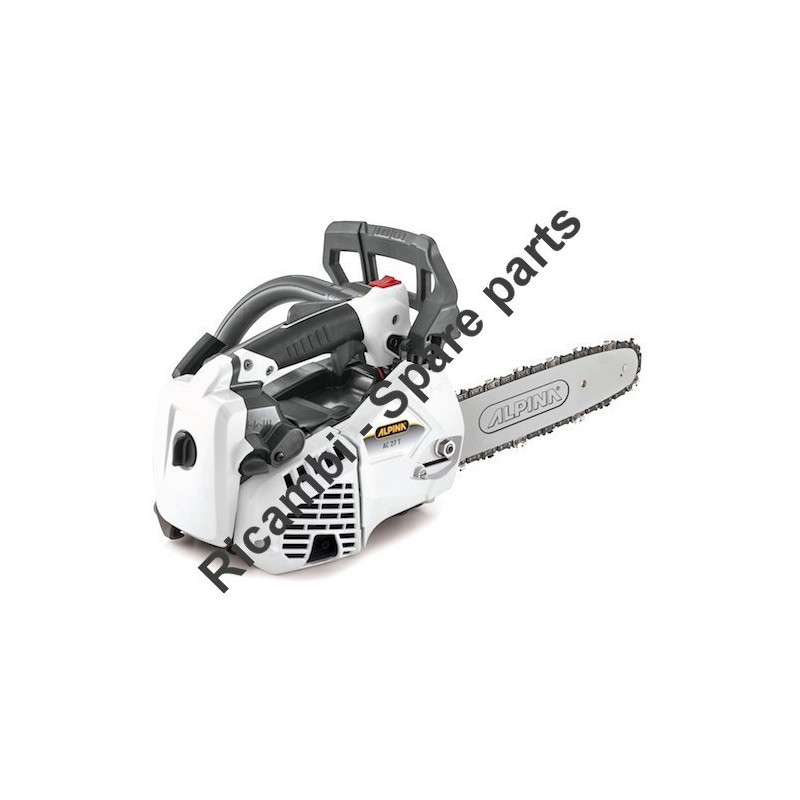

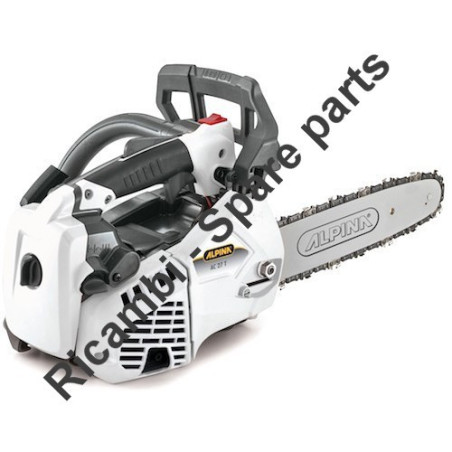

Alpina Spare Parts for Chain Saw AC 27 T
€1.56
Tax included
Alpina Spare Parts for Chain Saw AC 27 T
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw AC27T/240271000-A17-2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Chain Saw AC 27 T
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw AC27T/240271000-A17-2017.
In the following table, look for the model of the Chain Saw AC 27 T and the respective parts of the code.
| ChainSaw AC 27 T/240271000-A17-2017 Engine Pag.1 | ||
| # | Part Num. | Description |
| 30 | 2135030 | Screw |
| 31 | 118804708/0 | Ignition Coil |
| 32 | 2312020 | Washer |
| 33 | 123878021/0 | Screw |
| 34 | 118804709/0 | Support Ring |
| 35 | 118804710/0 | Intake Manifold |
| 36 | 118804711/0 | Intake Manifold Gasket |
| 38 | 1911-9221-01 | Spark Plug |
| 39 | 118804713/0 | Support Plate |
| 40 | 118804714/0 | Muffler Gasket |
| 41 | 118804715/0 | Muffler |
| 42 | 118804716/0 | Muffler Cover |
| 43 | 2135120 | Screw |
| 44 | 118804717/0 | Cylinder Sealing Gasket |
| 45 | 118804350/0 | Oil Seal |
| 46 | 118804718/0 | Left Crankcase |
| 47 | 3112240 | Needle Bearing |
| 48 | 2135040 | Screw |
| 50 | 118804727/0 | Crankshaft Counterweight |
| 51 | 118804728/0 | Counterweight Spring |
| 52 | 118804719/0 | Crankshaft |
| 53 | 123652505/0 | Washer |
| 54 | 123235008/0 | Needle Bearing |
| 55 | 118804722/0 | Circlip |
| 56 | 118804723/0 | Piston Pin |
| 58 | 118804795/0 | Piston Ring |
| 59 | 118804726/0 | Crankcase Gasket |
| 60 | 123753000/0 | Needle |
| 61 | 118804729/0 | Right Crankcase |
| 148 | 118804601/0 | Woodruff Key |
| 154 | 112581500/0 | Grower |
| 155 | 2312090 | Flat washer |
| 162 | 118804816/0 | Piston Assy |
| 163 | 118804817/0 | Cylinder-Piston Assy |
| ChainSaw AC 27 T/240271000-A17-2017 Engine Pag.2 | ||
| 5 | 118800189/0 | Screw |
| 8 | 123878121/0 | Screw |
| 30 | 2135030 | Screw |
| 62 | 2135040 | Screw |
| 63 | 118804796/0 | Air Conveyor |
| 64 | 118804797/0 | Support Plate |
| 65 | 112727815/0 | Screw |
| 66 | 118804730/0 | Heat Protection |
| 67 | 118804252/0 | Oil Tank Cap Assy |
| 72 | 118804813/0 | Cable Cover |
| 73 | 118804802/0 | Switch |
| 74 | 118804803/0 | Electric Cable |
| 75 | 118804804/0 | Electric Cable |
| 76 | 118804733/0 | Wire Clip |
| 77 | 118804734/0 | Chassis |
| 78 | 118804735/0 | O-Ring |
| 79 | 118804736/0 | Nozzle |
| 83 | 118804737/0 | Grommet |
| 87 | 118804815/0 | Insulated Pipe |
| 88 | 118804741/0 | Corrugated Pipe |
| 89 | 118804740/0 | Fuel Filter |
| 90 | 118804234/0 | Clip |
| 91 | 118804742/0 | Cap |
| 92 | 118804743/0 | Spike |
| 93 | 118804744/0 | Internal Plate |
| 94 | 118804745/0 | Lead Screw |
| 95 | 118804746/0 | Chain Stopper |
| 98 | 118804747/0 | Oil Pipe |
| 100 | 118804749/0 | Spray Nozzle |
| 101 | 118804750/0 | Oil Pump |
| 102 | 118804751/0 | Oil Pump Cover |
| 103 | 118550608/0 | Washer |
| 104 | 118804752/0 | Worm Screw |
| 105 | 118804753/0 | 3/8 Clutch Drum |
| 106 | 123235001/0 | Needle Bearing |
| 107 | 118804818/0 | Washer |
| 108 | 118804758/0 | Clutch |
| 158 | 118804853/0 | Oil pipe Spring |
| 160 | 118804800/0 | Oil Filter Assy |
| 161 | 118804801/0 | Breather Valve Assy |
| 166 | 118804820/0 | Fuel Tube Assy |
| ChainSaw AC 27 T/240271000-A17-2017 Engine Carburator Pag.3 | ||
| 21 | 118804700/0 | Air Filter Lock Nut |
| 22 | 118800258/0 | Washer |
| 23 | 118804843/0 | Air Filter Cover, White |
| 24 | 118804789/0 | Air Filter |
| 25 | 2135110 | Screw |
| 26 | 118804790/0 | Air Conveyor |
| 27 | 118804791/0 | Air Filter Base |
| 28 | 118804792/0 | Carburetor |
| 29 | 118804707/0 | Choke Knob |
| 157 | 2312100 | Washer |
| 167 | 118804835/0 | Carburetor Repair Kit |
| 168 | 118804836/0 | Carburetor Gaskets Kit |
| ChainSaw AC 27 T/240271000-A17-2017 Carter Pag.4 | ||
| 1 | 123790022/0 | Cap |
| 2 | 123878093/0 | Screw |
| 3 | 123275027/0 | Shock Absorber |
| 4 | 118804780/0 | Handle |
| 5 | 118800189/0 | Screw |
| 6 | 118804231/0 | Primer |
| 7 | 118804781/0 | Fuel Pipe for Primer |
| 8 | 123878121/0 | Screw |
| 9 | 118804683/0 | Spring Cover |
| 10 | 118804684/0 | Screw For Spring |
| 10 | 118804851/0 | Screw For Spring |
| 11 | 118804685/0 | Spring |
| 12 | 118804782/0 | Safety Lever |
| 13 | 118800256/0 | Connection |
| 14 | 118804694/0 | Fuel Pipe |
| 15 | 118804783/0 | Throttle Spring |
| 16 | 118804784/0 | Throttle Lever |
| 17 | 118804785/0 | Handle |
| 18 | 118804786/0 | Throttle Rod |
| 19 | 118804842/0 | Handle Cover, White |
| 20 | 112728124/0 | Screw |
| 156 | 2312020 | Washer |
| ChainSaw AC 27 T/240271000-A17-2017 Carter Pag.5 | ||
| 8 | 123878121/0 | Screw |
| 20 | 112728124/0 | Screw |
| 60 | 123753000/0 | Needle |
| 65 | 112727815/0 | Screw |
| 99 | 118804839/0 | Muffler Cover, White |
| 112 | 118804806/0 | Washer |
| 113 | 118804755/0 | Spring for Hand Guard |
| 114 | 118804798/0 | Hand Guard |
| 115 | 118804757/0 | Hand Guard Screw |
| 117 | 123878121/0 | Screw |
| 118 | 118804880/0 | Break Spring Cover |
| 119 | 118804760/0 | Bushing |
| 120 | 118804761/0 | Chain Brake Spring |
| 121 | 118804762/0 | Spring Base |
| 122 | 118804763/0 | Break Strap |
| 128 | 118804764/0 | Tensioner Cover Plate |
| 129 | 118804765/0 | Passive Tensioner Gear |
| 130 | 118804766/0 | Gear Base |
| 131 | 118804767/0 | Tensioner Gear |
| 132 | 118804768/0 | Chain Tensioner Block |
| 133 | 118804769/0 | Tensioner Screw |
| 134 | 118804840/0 | Clutch Cover Assy, White |
| 135 | 118804841/0 | Starter Assy, White |
| 136 | 118804772/0 | Starter Handle |
| 138 | 118804773/0 | Grommet |
| 142 | 118804775/0 | Starter Pulley |
| 143 | 118804776/0 | Spring |
| 144 | 118804777/0 | Starter Ratchet |
| 145 | 118804807/0 | Screw |
| 146 | 118804778/0 | Air Conveyor |
| 147 | 112154220/0 | Nut |
| 149 | 118804779/0 | Flywheel Assy |
| 150 | 123900360/0 | Guide Bar 10"-3/8"-0,050" |
| 151 | 1519-9110-02 | Chain 10"-3/8"-0,050"-40X |
| 164 | 118804810/0 | Break Control Assy |
| 165 | 118804811/0 | Starter Spring Assy |
| 501 | AC 27 T | Chain Saw Alpina AC 27 T |
| 502 | Lubricating 2T Motor Oil 1Lt | |
| 503 | Chain Saw Lubricating Oil 5 Lt | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina AC27T - 240271000
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
