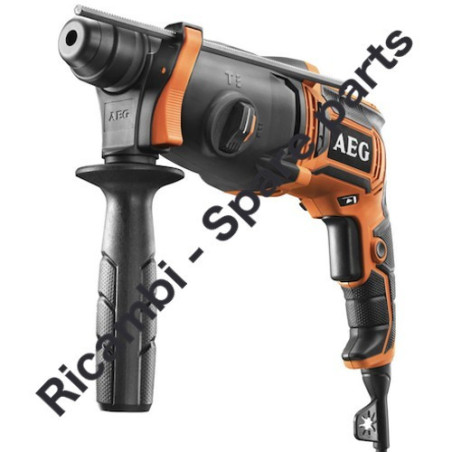

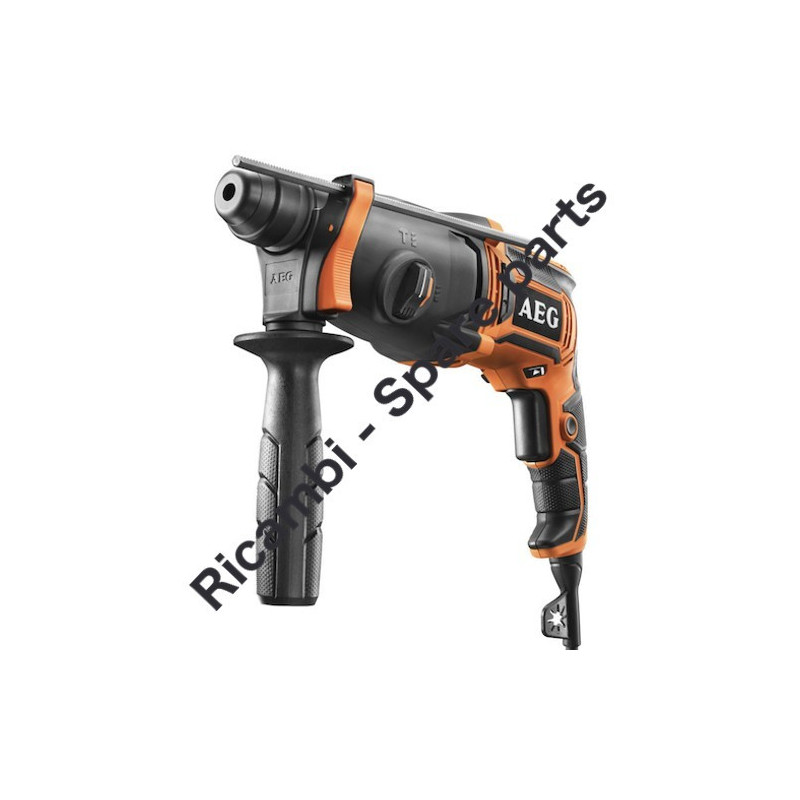

AEG Combi Hammer BH24IE Parts
€3.48
Tax included
AEG Combi Hammer BH24IE Spare Parts
Fix Your Combi Hammer BH24IE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AEG Combi Hammer BH24IE Spare Parts
Fix Your Combi Hammer BH24IE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following table, look for the model of the Drill Driver and their spare part.
| BH24IE SDS+ COMBI HAMMER IN2 4935451558 - BH24IE - 4000456725 |
||
| # | Part number | Description |
| 3 | 4931454439 | COVER |
| 4 | 5131000000 | DATA PLATE Discontinued |
| 5 | 4931454441 | FELT |
| 6 | 4931454442 | O-RING |
| 8 | 4931454443 | BUSH |
| 9 | 633516001 | WASHER |
| 10 | 4931454444 | SEAL |
| 11 | 4931454445 | BUSH |
| 12 | 4931454446 | NEEDLE BEARING |
| 13 | 4931454447 | NEEDLE BEARING |
| 14 | 633514001 | COMPENSATING WASHER |
| 15 | 4931454448 | HOUSING |
| 23 | 4931454449 | SCREW |
| 24 | 4931454450 | BOLT |
| 25 | 4931454451 | WASHER |
| 26 | 4931454452 | CYLINDER |
| 27 | 561994001 | O-RING |
| 28 | 4931454453 | PERCUSSION BODY - DISCONTINUED |
| 29 | 672632001 | CIRCLIP |
| 30 | 4931454454 | O-RING |
| 31 | 4931454455 | SNAP DIE |
| 32 | 633518001 | WASHER |
| 33 | 562595001 | O-RING |
| 34 | 692722001 | SLEEVE |
| 35 | 4931454456 | O-RING |
| 36 | 4931436819 | O-RING |
| 37 | 4931454457 | STOP WASHER |
| 38 | 4931436804 | HOLDING RING |
| 39 | 611405001 | BALL |
| 40 | 4931454458 | CLUTCH |
| 41 | 4931454459 | GEARWHEEL SET |
| 42 | 4931454460 | COUPLING RING |
| 43 | 633517001 | WASHER |
| 44 | 5131000000 | SPINDLE Discontinued |
| 45 | 4931453607 | SPRING |
| 46 | 632399001 | PLATE |
| 47 | 4931453606 | BALL |
| 48 | 633521001 | RETAINING RING |
| 49 | 672631001 | SPRING RING |
| 50 | 522172001 | CLAMPING SLEEVE |
| 51 | 561993001 | RUBBER CAP |
| 52 | 4931454462 | CAPACITOR |
| 53 | 4931454463 | SWITCH |
| 54 | 4931454464 | RUBBER CAP |
| 55 | 4931454465 | BALL BEARING |
| 56 | 4931454466 | MOTOR |
| 57 | 4931454467 | BALL BEARING |
| 58 | 4931454468 | SCREW |
| 59 | 661286001 | LOCKING SCREW |
| 60 | 4931436821 | SCREW |
| 61 | 5131000000 | BALL BEARING Discontinued |
| 62 | 4931454470 | WASHER |
| 63 | 4931454471 | WORM GEAR WHEEL |
| 64 | 4931454472 | REDUCT. GEAR SHAFT |
| 65 | 4931466370 | WOBBLE DRIVE |
| 66 | 4931454474 | COUPLING SLEEVE |
| 67 | 4931454475 | SPRING |
| 75 | 5131000000 | RETAINER Discontinued |
| 76 | 4931454477 | POWER CORD |
| 78 | 4931454479 | LEVER |
| 79 | 660570005 | SCREW |
| 84 | 660024045 | SCREW |
| 89 | 4931384434 | DEPTH GAUGE |
| 90 | 4931454480 | HANDLE HALF |
| 91 | 4931454481 | GEAR BOX |
| 93 | 4931454482 | BUTTON |
| 94 | 4931454483 | GEAR UNIT |
| 95 | 4931454484 | CYLINDER |
| 96 | 4931454485 | SNAP DIE |
| 97 | 4931454504 | SPINDLE SLEEVE |
| 98 | 4931454487 | RECEPTION PIECE |
| 99 | 4931454488 | DRIVE MOTOR |
| 100 | 4931454489 | REDUCTION GEAR |
| 103 | 4931454490 | HANDLE COMPL. |
| 104 | 4931454491 | RATING PLATE |
| 105 | 4931454494 | SWITCH |
| 106 | 4931454495 | PLATE |
| 107 | 4931454496 | CARBON BRUSH SET |
| 110 | 4931454497 | HANDLE COMPL. |
| 700 | 4931454498 | CARRYING CASE |
